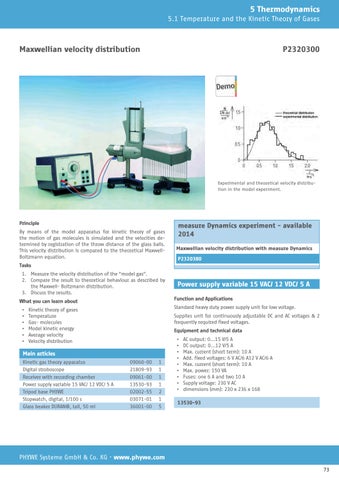

5 Thermodynamics 5.1 Temperature and the Kinetic Theory of Gases
Maxwellian velocity distribution
P2320300
Experimental and theoretical velocity distribution in the model experiment.
Principle By means of the model apparatus for kinetic theory of gases the motion of gas molecules is simulated and the velocities determined by registration of the throw distance of the glass balls. This velocity distribution is compared to the theoretical MaxwellBoltzmann equation.
measure Dynamics experiment - available 2014 Maxwellian velocity distribution with measure Dynamics P2320380
Tasks 1. Measure the velocity distribution of the "model gas". 2. Compare the result to theoretical behaviour as described by the Maxwell- Boltzmann distribution. 3. Discuss the results.
Power supply variable 15 VAC/ 12 VDC/ 5 A
What you can learn about
Function and Applications
▪ ▪ ▪ ▪ ▪ ▪
Standard heavy duty power supply unit for low voltage.
Kinetic theory of gases Temperature Gas- molecules Model kinetic energy Average velocity Velocity distribution
Supplies unit for continuously adjustable DC and AC voltages & 2 frequently required fixed voltages. Equipment and technical data
Main articles Kinetic gas theory apparatus Digital stroboscope Receiver with recording chamber Power supply variable 15 VAC/ 12 VDC/ 5 A Tripod base PHYWE Stopwatch, digital, 1/100 s Glass beaker DURAN®, tall, 50 ml
09060-00 21809-93 09061-00 13530-93 02002-55 03071-01 36001-00
1 1 1 1 2 1 5
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
AC output: 0...15 V/5 A DC output: 0...12 V/5 A Max. current (short term): 10 A Add. fixed voltages: 6 V AC/6 A12 V AC/6 A Max. current (short term): 10 A Max. power: 150 VA Fuses: one 6 A and two 10 A Supply voltage: 230 V AC dimensions (mm): 230 x 236 x 168
13530-93
PHYWE Systeme GmbH & Co. KG · www.phywe.com 73
