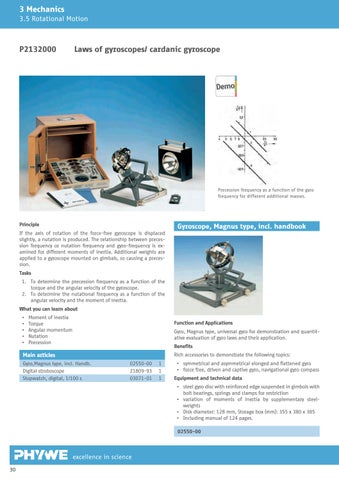

3 Mechanics 3.5 Rotational Motion
P2132000
Laws of gyroscopes/ cardanic gyroscope
Precession frequency as a function of the gyro frequency for different additional masses.
Principle
Gyroscope, Magnus type, incl. handbook
If the axis of rotation of the force-free gyroscope is displaced slightly, a nutation is produced. The relationship between precession frequency or nutation frequency and gyro-frequency is examined for different moments of inertia. Additional weights are applied to a gyroscope mounted on gimbals, so causing a precession. Tasks 1. To determine the precession frequency as a function of the torque and the angular velocity of the gyroscope. 2. To determine the nutational frequency as a function of the angular velocity and the moment of inertia. What you can learn about ▪ ▪ ▪ ▪ ▪
Moment of inertia Torque Angular momentum Nutation Precession
Function and Applications Gyro, Magnus type, universal gyro for demonstration and quantitative evaluation of gyro laws and their application. Benefits
Main articles
Rich accessories to demonstrate the following topics:
Gyro,Magnus type, incl. Handb. Digital stroboscope Stopwatch, digital, 1/100 s
02550-00 21809-93 03071-01
1 1 1
▪ symmetrical and asymmetrical elonged and flattened gyro ▪ force free, driven and captive gyro, navigational gyro compass Equipment and technical data ▪ steel gyro disc with reinforced edge suspended in gimbols with bolt bearings, springs and clamps for restriction ▪ variation of moments of inertia by supplementary steelweights ▪ Disk diameter: 128 mm, Storage box (mm): 355 x 380 x 385 ▪ Including manual of 124 pages. 02550-00
