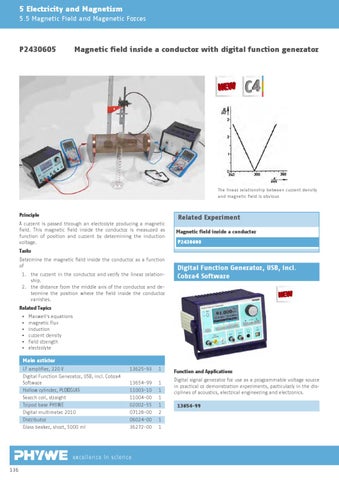

5 Electricity and Magnetism 5.5 Magnetic Field and Magenetic Forces
P2430605
Magnetic field inside a conductor with digital function generator
The linear relationship between current density and magnetic field is obvious.
Principle A current is passed through an electrolyte producing a magnetic field. This magnetic field inside the conductor is measured as function of position and current by determining the induction voltage.
Related Experiment Magnetic field inside a conductor P2430600
Tasks Determine the magnetic field inside the conductor as a function of 1. the current in the conductor and verify the linear relationship. 2. the distance from the middle axis of the conductor and determine the position where the field inside the conductor vanishes.
Digital Function Generator, USB, incl. Cobra4 Software
Related Topics ▪ ▪ ▪ ▪ ▪ ▪
Maxwell's equations magnetic flux induction current density field strength electrolyte
Main articles LF amplifier, 220 V Digital Function Generator, USB, incl. Cobra4 Software Hollow cylinder, PLEXIGLAS Search coil, straight Tripod base PHYWE Digital multimeter 2010 Distributor Glass beaker, short, 5000 ml
13625-93
1
13654-99 11003-10 11004-00 02002-55 07128-00 06024-00 36272-00
1 1 1 1 2 1 1
excellence in science 136
Function and Applications Digital signal generator for use as a programmable voltage source in practical or demonstration experiments, particularly in the disciplines of acoustics, electrical engineering and electronics. 13654-99
