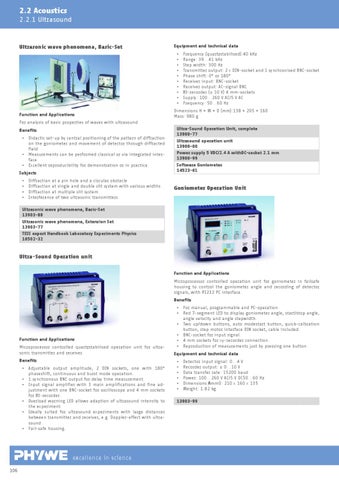

2.2 Acoustics 2.2.1 Ultrasound
Ultrasonic wave phenomena, Basic-Set
Equipment and technical data ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Function and Applications
Frequency (quartzstabilised):40 kHz Range: 39...41 kHz Step width: 300 Hz Transmitter output: 2 x DIN-socket and 1 synchronised BNC-socket Phase shift: 0° or 180° Receiver input: BNC-socket Receiver output: AC-signal BNC XY-recorder (± 10 V) 4 mm-sockets Supply: 100...260 V AC/5 V AC Frequency: 50...60 Hz
Dimensions H × W × D (mm):138 × 205 × 160 Mass: 980 g
For analysis of basic properties of waves with ultrasound Benefits ▪ ▪ ▪
Didactic set-up by central positioning of the pattern of diffraction on the goniometer and movement of detector through diffracted field. Measurements can be performed classical or via integrated interface. Excellent reproducibility for demonstration or in practica.
Subjects ▪ ▪ ▪ ▪
Diffraction at a pin hole and a circular obstacle Diffraction at single and double slit system with various widths Diffraction at multiple slit system Interference of two ultrasonic transmitters
Ultra-Sound Operation Unit, complete 13900-77 Ultrasound operation unit 13900-00 Power supply 5 VDC/2.4 A withDC-socket 2.1 mm 13900-99 Software Goniometer 14523-61
Goniometer Operation Unit
Ultrasonic wave phenomena, Basic-Set 13903-88 Ultrasonic wave phenomena, Extension Set 13903-77 TESS expert Handbook Laboratory Experiments Physics 16502-32
Ultra-Sound Operation unit Function and Applications Microprocessor controlled operation unit for goniometer in failsafe housing to control the goniometer angle and recording of detector signals, with RS232 PC interface. Benefits ▪ ▪ ▪ Function and Applications Microprocessor controlled quartzstabilised operation unit for ultrasonic transmitter and receiver. Benefits ▪ ▪ ▪ ▪ ▪ ▪
Adjustable output amplitude, 2 DIN sockets, one with 180° phaseshift, continuous and burst mode operation. 1 synchronous BNC output for delay time measurement. Input signal amplifier with 3 main amplifications and fine adjustment with one BNC-socket for oscilloscope and 4 mm sockets for XY-recorder. Overload warning LED allows adaption of ultrasound intensity to the experiment. Ideally suited for ultrasound experiments with large distances between transmitter and receiver, e.g. Doppler-effect with ultrasound. Fail-safe housing.
excellence in science 106
▪ ▪ ▪
For manual, programmable and PC-operation. Red 7-segment LED to display goniometer angle, start/stop angle, angle velocity and angle stepwidth. Two up/down buttons, auto modestart button, quick-calbration button, step motor interface DIN socket, cable included. BNC-socket for input signal. 4 mm sockets for xy-recorder connection. Reproduction of measurements just by pressing one button.
Equipment and technical data ▪ ▪ ▪ ▪ ▪ ▪
Detector input signal: 0...4 V Recorder output: ± 0...10 V Data transfer rate: 15200 baud Power: 100...260 V AC/5 V DC50...60 Hz Dimensions ÄmmÜ: 210 x 160 x 135 Weight: 1.82 kg
13903-99
