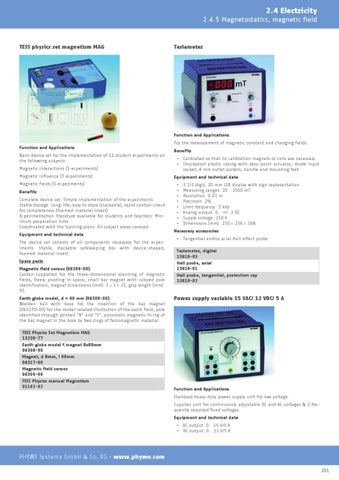

2.4 Electricity 2.4.5 Magnetostatics, magnetic field
TESS physics set magnetism MAG
Teslameter
Function and Applications Function and Applications Basic device set for the implementation of 11 student experiments on the following subjects: Magnetic interactions (3 experiments) Magnetic influence (3 experiments) Magnetic fields (5 experiments) Benefits Complete device set: Simple implementation of the experiments Stable storage: Long-life, easy to store (stackable), rapid control-check for completeness (foamed-material insert) Experimentation literature available for students and teachers: Minimum preparation time Coordinated with the training plans: All subject areas covered Equipment and technical data The device set consists of all components necessary for the experiments. Stable, stackable safekeeping box with device-shaped, foamed-material insert. Spare parts Magnetic field sensor (06309-00): Cardan-supported for the three-dimensional scanning of magnetic fields, freely pivoting in space, small bar magnet with colored pole identification, magnet dimensions (mm): 3 x 3 x 25, grip length (mm): 95 Earth globe model, d = 60 mm (06308-00): Wooden ball with bore for the insertion of the bar magnet (063170-00) for the model-related illustration of the earth field; pole identified through printed "N" and "S"; automatic magnetic fixing of the bar magnet in the bore by two rings of ferromagnetic material. TESS Physics Set Magnetism MAG 13230-77 Earth globe model f.magnet 8x60mm 06308-00 Magnet, d 8mm, l 60mm 06317-00 Magnetic field sensor 06309-00 TESS Physics manual Magnetism 01162-02
For the measurement of magnetic constant and changing fields. Benefits ▪ ▪
Calibrated so that no calibration magnets or coils are necessary Shockproof plastic casing with zero-point actuator, diode input socket, 4 mm outlet sockets, handle and mounting feet
Equipment and technical data ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
3 1/2 digit, 20 mm LED display with sign representation Measuring ranges: 20...2000 mT Resolution: 0.01 m Precision: 2% Limit frequency: 5 kHz Analog output: 0...+/- 2 DC Supply voltage: 230 V Dimensions (mm): 230 x 236 x 168
Necessary accessories ▪
Tangential and/or axial Hall-effect probe
Teslameter, digital 13610-93 Hall probe, axial 13610-01 Hall probe, tangential, protection cap 13610-02
Power supply variable 15 VAC/ 12 VDC/ 5 A
Function and Applications Standard heavy duty power supply unit for low voltage. Supplies unit for continuously adjustable DC and AC voltages & 2 frequently required fixed voltages Equipment and technical data ▪ ▪
AC output: 0...15 V/5 A DC output: 0...12 V/5 A
PHYWE Systeme GmbH & Co. KG · www.phywe.com 201
