Datasheet

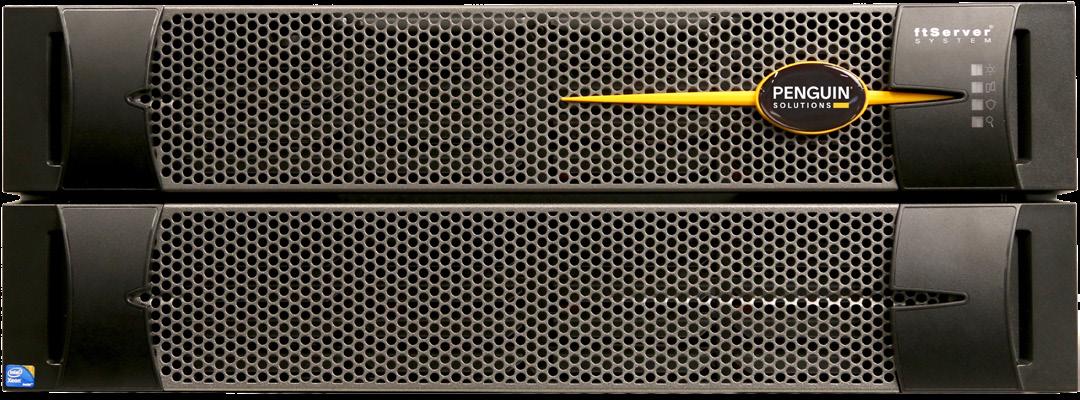

Stratus ftServer® V Series 6832
Continuous availability with stability and power for Virtual Object System (VOS) applications
Overview
The Stratus ftServer V Series 6832 from Penguin Solutions® is an operationally simple solution that delivers continuous availability with high performance for VOS applications. Stratus servers running the OpenVOS operating system are highly valued for their ability to deliver industry-leading availability. The Stratus ftServer V Series 6832 combines this stability with the power of 32 Intel® Xeon® processor cores.
The Stratus ftServer V Series 6832 features a dual modular redundancy (DMR) hardware architecture engineered to provide greater than 99.999% availability right out of the box. It can handle unprecedented levels of online transaction processing (OLTP), making it ideal for financial services trading systems and retail point-of-sale (POS) debit and credit card authorization. With exceptional headroom for application growth, it provides unequaled investment protection that can evolve with your organization.
Key Benefits
Continuous processing features
• Like other Stratus systems, the Stratus ftServer V Series 6832 uses continuous processing technology to safeguard availability without the operational complexity and added costs of high-availability clusters. Built-in fault tolerance eliminates the failover scripting, repeated testing, and application changes required with server clusters.
Lockstep technology
• With Penguin Solutions lockstep technology, replicated, fault-tolerant hardware components process the same instructions simultaneously. In the event of a component malfunction, the partner component acts as an active spare that continues normal operations with no system downtime or data loss.
The Stratus ftServer V Series 6832 combines familiar VOS functionality, improved performance and capacity, and the availability protection your organization needs. Moving your mission-critical applications to the Stratus ftServer V Series 6832 couldn’t be easier. You can migrate existing Continuum®-based applications via recompilation or call on Penguin Solutions Professional Services for expert assistance. After migrating, you’ll find that Stratus ftServer V Series systems and applications will interoperate with your installed PA-RISC® servers running VOS. The same exceptional serviceability you are accustomed to—including server self-monitoring, the Stratus Remote Service Network (RSN™), and Comprehensive Service coverage¹—continues to defend against unplanned downtime around the clock.
Stratus ftServer V Series 6832 System Specifications
Processor Memory
Logical processors
Processor
Cores
L3 cache
Intel QPI speed
Memory
I/O Subsystem
PCI adapter slots
Storage Subsystem/RAID Array
RAID configuration from factory
Maximum chassis modules
Disk drives supported
Maximum disks
2 socket per CRU
Intel® Xeon® Gold 6127M processor; 2.2 GHz, 16-core
32 per CRU
38 MB (shared, per processor socket)
10.6 GT/s
16 GB
4 PCIe 3 x8 (2 per CRU) low-profile
4 PCIe 3 x8 (2 per CRU) full-height
RAID 1
5 logical, 10 physical
600 GB (2.5” 15K RPM SAS)
1.8 TB (2.5” 10K RPM SAS)
800 GB encryption-ready Solid State Disk (2.5” SAS)
120 logical, 240 physical (in a RAID 1 configuration)
Maximum disks per chassis module 24 physical
Host interface
Fibre channel switches
Embedded I/O
10/100/1000 Ethernet ports
10 Gigabit Ethernet ports
Serial (com) ports
16 Gbps fibre channel
2 (16 Gbps switched fabric)
4 (2 per CRU)
4 (2 per CRU)
2 (9-pin ports per system, console and RSN use only)
PCI Adapters
Dual-port fibre channel 16 Gbps 2 included in base configuration (1 per CRU)
1 Gigabit 4-port Ethernet (copper) up to 6 optional (3 per CRU)
1 Gigabit 4-port Ethernet (fiber) up to 6 optional (3 per CRU)
10 Gigabit 4-port Ethernet (fiber) up to 4 optional (2 per CRU)
Serviceability
Remote service network Standard
Hot-swappable components CPU and I/O modules, disks
Operating System
OpenVOS
Power and Packaging
Input voltage
Cabinet
Version 19.3 or later
200-240 VAC; 50 Hz, 60 Hz
Penguin Solutions-supplied 38U
Weight Max weight 567 kg (1,250 lbs.)
¹ Customers must have a Penguin Solutions Assured Availability Services Agreement in effect to receive coverage.
