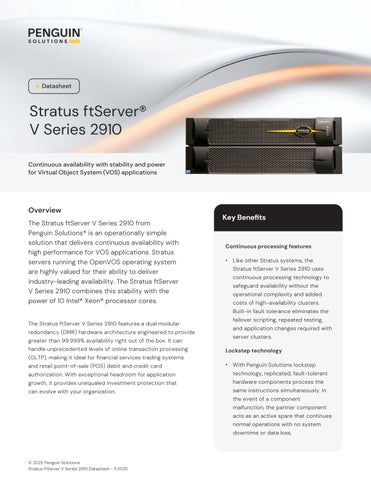

Datasheet

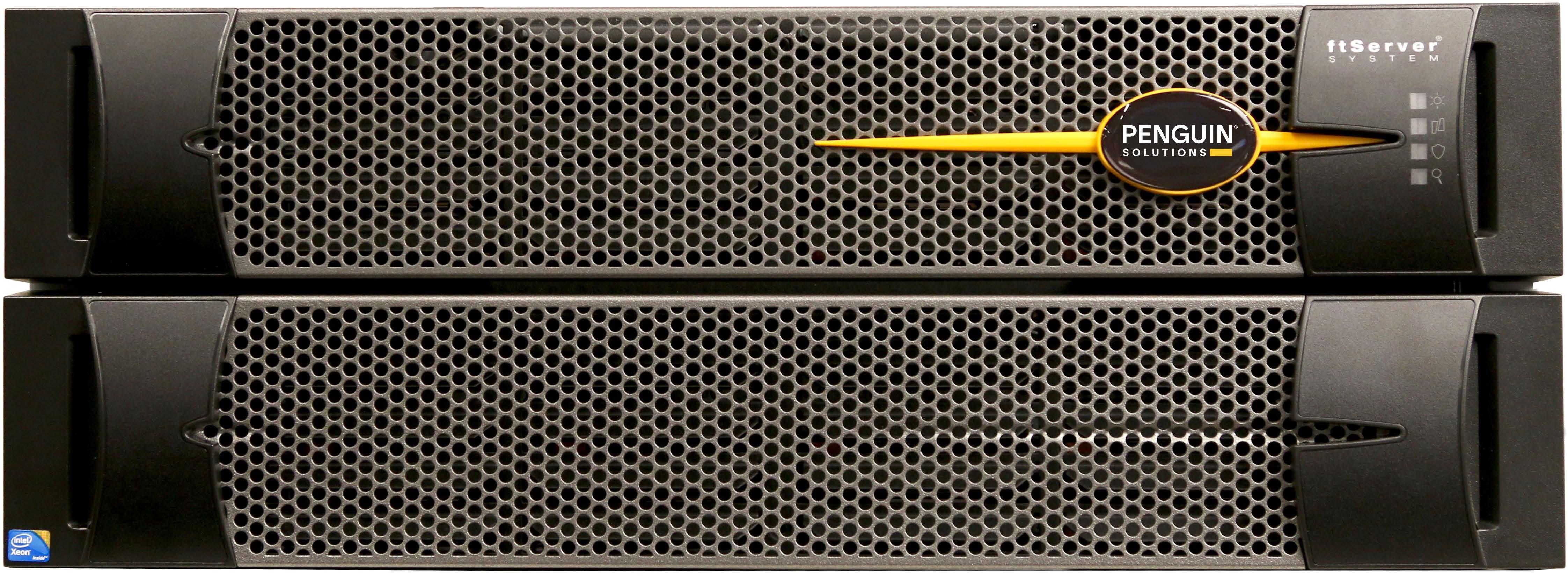

Stratus ftServer® V Series 2910
Continuous availability with stability and power for Virtual Object System (VOS) applications
Overview
The Stratus ftServer V Series 2910 from Penguin Solutions® is an operationally simple solution that delivers continuous availability with high performance for VOS applications. Stratus servers running the OpenVOS operating system are highly valued for their ability to deliver industry-leading availability. The Stratus ftServer V Series 2910 combines this stability with the power of 10 Intel® Xeon® processor cores.
The Stratus ftServer V Series 2910 features a dual modular redundancy (DMR) hardware architecture engineered to provide greater than 99.999% availability right out of the box. It can handle unprecedented levels of online transaction processing (OLTP), making it ideal for financial services trading systems and retail point-of-sale (POS) debit and credit card authorization. With exceptional headroom for application growth, it provides unequaled investment protection that can evolve with your organization.
Key Benefits
Continu ou s p rocessing features •
Like other Stratus systems, the Stratus ftServer V Series 2910 uses continuous processing technology to safeguard availability without the operational complexity and added costs of high-availability clusters. Built-in fault tolerance eliminates the failover scripting, repeated testing, and application changes required with server clusters.
Lockstep techn ol ogy
With Penguin Solutions lockstep technology, replicated, fault-tolerant hardware components process the same instructions simultaneously. In the event of a component malfunction, the partner component acts as an active spare that continues normal operations with no system downtime or data loss.
The Stratus ftServer V Series 2910 combines familiar VOS functionality, improved performance and capacity, and the availability protection your organization needs. Moving your mission-critical applications to the Stratus ftServer V Series 2910 couldn’t be easier. You can migrate existing Continuum®-based applications via recompilation or call on Penguin Solutions Professional Services for expert assistance. After mi grating, you’ll find that Stratus ftServer V Series systems and applications will interoperate with your installed PA-RISC® servers running VOS. The same exceptional serviceability you are accustomed to—including server self-monitoring, the Stratus Remote Service Network (RSN™), and Comprehensive Service coverage¹—continues to defend against unplanned downtime around the clock.
Stratus ftServer V Series 2910 System Specifications
Processor Memory
Logical processors
1 socket (per CRU**)
Processor 1 x Intel® Xeon® Silver 4210R processor 2.4 Ghz
Cores 10 (per CRU**)
L3 cache 13.75 MB (Shared, per processor socket)
Intel QPI speed
M em ory
I/O Subsystem PCI ada pter
Storage Subsystem/RAID Array
RAID configuration from factory
Maximum chassis modules
Disk drives supported
Maximum disks
GT/s
RAID 1
1 logical, 2 physical
800 GB encryption ready Solid-State Disk (2.5" SAS)
1.6 TB encryption ready Solid-State Disk (2.5" SAS) 24 logical, 48 physical (in a RAID 1 configuration)
Maximum disks per chassis module 24 physical 32 Gbps Fibre Channel
Host interface
Fibre ch an nel switches
Embe dde d I/O
10/100/1 00 0 Ethe rnet ports
(2 per CRU**) 10 Gigabit Ethe rnet ports
(2 per CRU**)
Se rial (com) ports 2 (9-pin ports per system, console and RSN use only)
PCI Adapters
Dual-port Fibre Channel 32 Gbps 4 included in base configuration (2 per CRU**)
1 Gigabit 4-port Ethe rnet (copper)
1 Gigabit 4-port Ethernet (fiber)
10 Gigabit 4-port Ethernet (fiber)
Serviceability
Up to 4 optional (2 per CRU)
up to 4 optional (2 per CRU**)
up to 4 optional (2 per CRU**)
Rem ote ser vice network Standard
Hot-swappa ble compone nts CPU and I/O modules, disks
Operating System
OpenVOS
Power and Packaging
Input voltage
Cabinet
Version 19.4.0 or later
200-240 VAC; 50 Hz, 60 Hz
Stratus supplied 38U
Weight Max Weight 800 Lbs. (362 Kg)
¹ Customers must have a Penguin Solution s Assured Availability Ser vices Agreement in effect to receive coverage.
