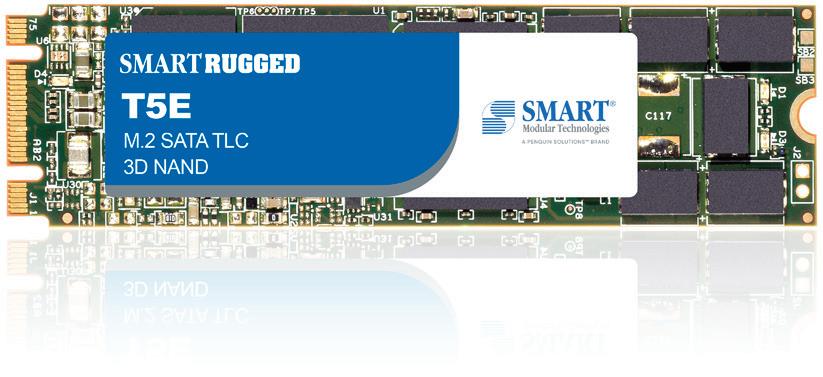

T5E | M.2 2280 SATA
SMART’s RUGGED T5E M.2 2280 SATA solid state drives (SSDs) deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage. T5E M.2 2280 SATA SSDs provide sustained read/write performance to meet the needs of high throughput applications, such as flight data recorders and sensor data capture. They are also well suited for high-reliability telemetry, surveillance, and mission-critical applications.
Conforming to SMART’s “true” industrial grade standards, T5E M.2 2280 SATA SSDs are superior to typical SSDs and HDDs in terms of ruggedness, vibration and shock resistance, and environmental resilience.
Features & Benefits
• AES-XTS 256-Bit Encryption Automatically Protects Data Written to The Drive
• Passes MIL-STD-810G
• True Industrial Grade Storage Solution for “No-Compromise” Applications
• Advanced Flash Management for Enhanced Reliability and Durability
• Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.) Support
• 100% 8 Hour Burn-In (I-Temp -40°C to +85°C)
• TCG OPAL 2.0 Compliant
Product Family Overview
240GB to 1920GB1 Read: Up to 520 MB/s Write: Up to 500 MB/s Read: 81,000 IOPS Write: 70,000 IOPS
1One gigabyte, or GB, equals one billion bytes when referring to drive capacity. Accessible capacity may vary based on the operating environment and drive formatting
• Military
• Defense
• Aerospace
• Telemetry
• Surveillance Applications
Specifications Data Security Features
M.2 2280
NAND Type 3D TLC
Performance
Host Interface Rate (maximum) 6Gb/s (Backwards compatible to 3 Gb/s & 1.5 Gb/s)
Capacities
Burst
240 GB to 1920 GB
600 MB/S
Sequential Read (maximum) Up to 520 MB/s
Sequential Write (maximum) Up to 500 MB/s
Random Read (maximum) 81,000 IOPS
Random Write (maximum) 70,000 IOPS
Reliability
MTBF
> 2M hours, Telcordia 25°C
Data Reliability 1 in 1017 bits read
Data Retention > 10 years @ 25°C
Endurance Up to 2100 Total Drive Writes
Shock 1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction1
Vibration 16.4 g rms 10-2000 Hz random, 3-axes
Conformal Coating Optional
Relative Humidity 5% to 95% non-condensing
Operating Temperature Industrial: -40°C to +85°C
Storage Temperature -55°C to +95°C
images are
Encryption AES-XTS 256-bit (FIPS 197 compliant)
Protection Optional Write Protect Feature Elimination ATA-8 Security Erase
Ordering Information
HRCA3P0240HIS01* HRCA3P0240HI001* 240GB
HRCA3P0480HIS01* HRCA3P0480HI001* 480GB
HRCA3P0960HIS01*
HRCA3P0960HI001* 960GB
HRCA3P1920HIS01* HRCA3P1920HI001* 1920GB
*For Standard with Conformal Coating, replace “S0 1” with “SC1”
*For Hardware Write-Protect with Conformal Coating, replace “001” with “CC1”
