Datasheet

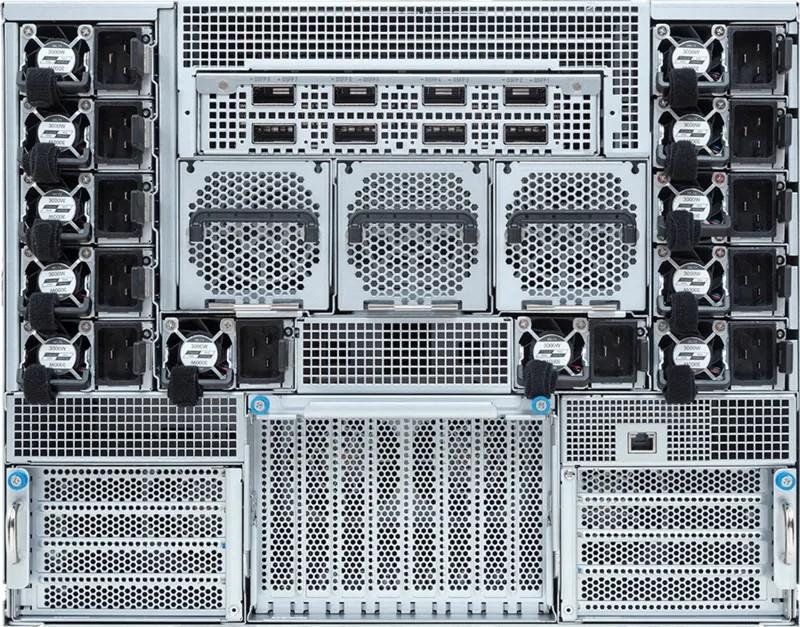

Relion XE8418GTS
Precision foundation, furious acceleration: AI infrastructure at the speed of ambition
Overview
Penguin Solutions Relion® XE8418GTS server pairs Intel's 6th Gen Xeon Scalable Processors (6700/6500-Series) with NVIDIA B300 HGX GPUs for high-performance AI reasoning, inference, training, and LLM workloads.
Featuring Intel Xeon 6 architecture with 8-channel DDR5-8000 MT/s memory and PCIe 5.0, plus NVIDIA's Blackwell Ultra architecture, the system delivers exceptional AI acceleration. NVIDIA ConnectX-8 SuperNIC provides 800 Gb/s InfiniBand or dual 400 Gb/s Ethernet for ultra-low latency communication essential for real-time inference serving and multi-node AI deployments.
With 1.8TB/s GPU-to-GPU bandwidth via NVLink and NVSwitch, this server excels at production-scale generative AI, parallel inference processing, real-time AI reasoning, scientific simulation, and enterprise AI applications.
Key Features
Dual Intel® Xeon® 6 Processors (6700/6500-Series)
Up to 32 DDR5 RDIMM/MRDIMM modules supporting up to 8000 MT/s to deliver speed and efficiency for data-intensive workloads
Storage density for up to 8x 2.5" hot-swap drive bays with PCIe Gen5 NVMe support
Supports NVIDIA HGX™ B300 with 8 x SXM GPUs
8x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet GPU networking ports via onboard NVIDIA ConnectX® 8 SuperNIC™
1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
A/B, True N+N Powerundancy
Technical Specifications
Form Factor
Form Factor
Processors
8U Rackmount
Processor Number 2
Processor Type
Intel® Xeon® 6 Processors (6700/6500-Series)
Maximum TDP 350W
Motherboard
Chipset SoC
Board Management
BMC Chipset ASpeed AST2600
Dedicated BMC Interface RJ45
IPMI 2.0 Yes
Virtual Media Over LAN Yes
KVM Over LAN Yes
RedFish Yes
Memory
M em ory Type
DDR5-6400 MT/s (1DPC), DDR5-5200 MT/s (2DPC), MRDIMM: Up to 8000MT/s
M em ory Capacity Up to 8TB DDR5-5200 MT/s (32 DIMMs)
Storage System
Hard Drive Bays
Networking
GPU Networking
Ethernet Controller
SATA/U.2 NVMe (2.5")8 Hot-Swappable Bays M.2 (2280/22110) 2 PCIe Gen5
8 x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet via on board NVIDIA ConnectX®-8 SuperNIC™
Intel® X710-AT2
On-Board LAN 2x 10GbE/RJ45
PCI Expansion Slots
Number of Slots/Gen/Speed (Size) 4x PCIe Gen5 x16 FHHL DW Slots (from PEX89072)
GPU
GPU Capa ble 8-GPU SXM
GPU S upported NVIDIA HGX B300 288GB HBM3e SXM6 x8
External I/O Interfaces
USB Ports 2x USB 3.2 Gen1
Video Output 1x VGA
Supported Operating System
S upported OS RHEL, Rocky
Power System
Power Supply Size
Regulatory Compliance
6+6 x 3000W 80Plus Titanium
Reg ulations CE, FCC
Mounting Hardware
Rackmo unt Rails Standard Rails included
Operating Environment
Operating Temperature
Non-operating Temperature
10C to 35C (50F to 95F)
0C to 60C (32F to 140F)
Operating Relative Humidity 8% to 80% (non-condensing)
Non-operating Relative Humidity 20% to 95% (non-condensing)
System Dimensions
Warranty
Warranty
Cooling Options
3 Years Standard; For details see the MPSA
Air Cooling Standard
Direct-To-Liquid Cooling n/a
