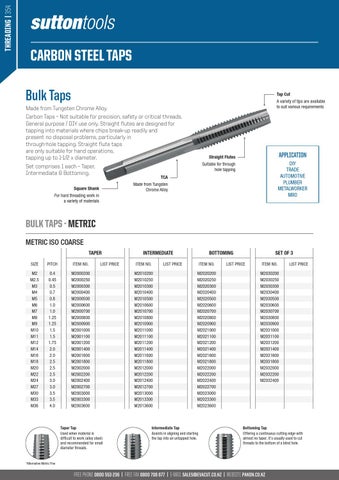

THREADING | 354
CARBON STEEL TAPS Bulk Taps
Tap Cut A variety of tips are available to suit various requirements
Made from Tungsten Chrome Alloy. Carbon Taps – Not suitable for precision, safety or critical threads. General purpose / DIY use only. Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping. Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter. Set comprises 1 each – Taper, Intermediate & Bottoming.
Application
Straight Flutes
DIY Trade Automotive Plumber Metalworker MRO
Suitable for through hole tapping
TCA
Made from Tungsten Chrome Alloy
Square Shank For hard threading work in a variety of materials
Bulk Taps - Metric Metric ISO Coarse Taper SIZE
PITCH
ITEM NO.
M2 M2.5 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36
0.4 0.45 0.5 0.7 0.8 1.0 1.0 1.25 1.25 1.5 1.5 1.75 2.0 2.0 2.5 2.5 2.5 3.0 3.0 3.5 3.5 4.0
M2000200 M2000250 M2000300 M2000400 M2000500 M2000600 M2000700 M2000800 M2000900 M2001000 M2001100 M2001200 M2001400 M2001600 M2001800 M2002000 M2002200 M2002400 M2002700 M2003000 M2003300 M2003600
LIST PRICE
Taper Tap Used when material is difficult to work (alloy steel) and recommended for small diameter threads.
INTERMEDIATE ITEM NO.
BOTTOMING
LIST PRICE
M2010200 M2010250 M2010300 M2010400 M2010500 M2010600 M2010700 M2010800 M2010900 M2011000 M2011100 M2011200 M2011400 M2011600 M2011800 M2012000 M2012200 M2012400 M2012700 M2013000 M2013300 M2013600
ITEM NO. M2020200 M2020250 M2020300 M2020400 M2020500 M2020600 M2020700 M2020800 M2020900 M2021000 M2021100 M2021200 M2021400 M2021600 M2021800 M2022000 M2022200 M2022400 M2022700 M2023000 M2023300 M2023600
Intermediate Tap Assists in aligning and starting the tap into an untapped hole.
SET OF 3
LIST PRICE
ITEM NO.
LIST PRICE
M2030200 M2030250 M2030300 M2030400 M2030500 M2030600 M2030700 M2030800 M2030900 M2031000 M2031100 M2031200 M2031400 M2031600 M2031800 M2032000 M2032200 M2032400
Bottoming Tap Offering a continuous cutting edge with almost no taper, it’s usually used to cut threads to the bottom of a blind hole.
*Alternative Metric Fine
