General requirement of the contract:
The contractor should note that the wor provide aesthetic qualities unique to this project and that aesthetic If the contractor intents to substitute a specified material with one equivalent then he/she should note that aesthetics will be an essential facto equivalence. The employer’s representative will not permit the use of equivalent, both aesthetically and technically, with what is specified in the
The overriding intention is that all work be doneto a sound and durable standard.Everything needed to end result,whether or not it is either drawn or speci to be provided for and executed by the Contractor, within the tender price.
NORTH ELEVATION
OUTLINE SPECIFICATION
General requirement of the contract: The contractor should note that the works have been designed to provide aesthetic qualities unique to this project and that aesthetics is a functional requirement. If the contractor intents to substitute a specified material with one that he/she deems equivalent then he/she should note that aesthetics will be an essential factor in determining equivalence. The employer’s representative will not permit the use of any material not fully equivalent, both aesthetically and technically, with what is specified in the contract documents.
The overriding intention is that all work be doneto a good solid, sound and durable standard.Everything needed to ensure this end result,whether or not it is either drawn or specified, is to be provided for and executed by the Contractor, within the tender price.
THE PROPOSED DEVELOPMENT HAS BEEN CARRIED OUT TO PASSIVE HOUSE STANDARD. Space Heating Demand not to exceed 15kWh annually OR 10W (peak demand) per square metre of usable living space Space Cooling Demand roughly matches the heat demand with an additional, climate-dependent allowance for dehumidification Primary Energy Demand not to exceed 120kWh annually for all domestic applications (heating, cooling, hot water and domestic electricity) per square meter of usable living space Airtightness per hour at 50 Pascals pressure (as maximum of 0.6 air changes verified with an onsite pressure test in both pressurised and depressurised states) Thermal Comfort Thermal comfort must be met for all living areas year-round with not more than 10% of the hours in any given year over 25°C*
OUTLINE SPECIFICATION
01.GENERAL GROUND FLOOR BUILDUP: FINISH FLOOR ON 75MM CONCRETE SCREED ON 175MM THERMAL CONDUCTIVITY: 0.022 W/mK. INSULATION TAPED WITH PROPRIETARY TAPE ON RADON BARRIER ON RC SLAB ALL TO STRUCTURAL ENGINNERS DRAWINGS AND SPECIFICATION. FULL DPC WRAP TO AERATED CONCRETE BLOCKWORK AT FLOOR WALL JUNCTION
02.GENERAL EXTERNAL WALL BUILDUP: EXTERNAL RENDER TO CONCRETE BLOCKWORK 150MM PASSIVE PERFORMANCE FULL FILL CAVITY SYSTEM 0.11W/M2K, (ENSURE INSULATION IS SECURED AGAINST INNER LEAF, LAP AND TAPE ALL JOINTS), FIRMLY BLOCKWORK OF THICKNESS AS SHOWN IN PLAN TO INNER LEAF AIRTIGHTNESS MEMBRANCE BONDED TO RADON BARRIER AND LAPPED WITH PARGE COAT INTERNALLY WITH SKIM FINISH. FULL PERIMITER/ 4 SIDED PASSIVE STANDARD STRUCTURAL CAVITY CLOSER AROUND ALL WINDOWS, DOORS AND PARAPETS WALL TIES TO HAVE LOW CONDUCTIVITY TO ENGINEER SPECIFICATION
03.ALUMINUM PARAPET CAPPING PRESSED IN PROFILE AS SHOWN IN DETAILED DRAWINGS AND RAINWATER GOODS. . 04.PITCHED WARM ROOF ZINC WARM ROOF SYSTEM ON PLYWOOD BONDED TO PHENOLIC FOAM , SYSTEM BUILDUP U-value of 0.15W/m2K. OVER A CONTINOUS ALUMINIUM FOIL BACKED BITUMINOUS SELF SEALING VAPOUR BARRIER, AIRTIGHTNESS MEMBRANS CARRIED AROUND EDGE OF PLYWOOD AND BONDED WITH VAPOUR BARRIER OVER A PLYWOOD DECK. ON ROOF TRUSS TO STRUCTURAL ENGINEERS DRAWINGS AND SPECIFICATION. 05.FIRST FLOOR BUILDUP:
SOUTH ELEVATION
NORTH ELEVATION
STAIRWELL) ON 75MM SCREED ON 250MM HOLLOW CORE PRECAST CONCRETE SLAB ALL TO STRUCTURAL ENGINEERS DRAWINGS AND SPECIFICATION.

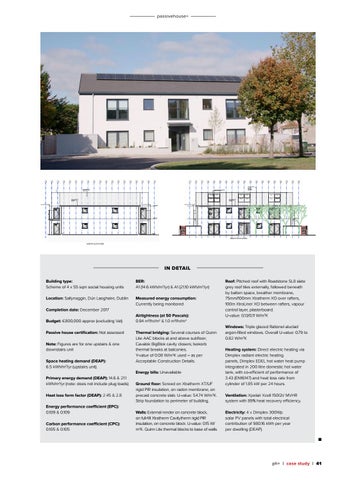

IN DETAIL
Building type: Scheme of 4 x 55 sqm social housing units
Location: Sallynoggin, Dún Laoghaire, Dublin
SOUTH ELEVATION Completion date: December 2017
Measured energy consumption: Currently being monitored Airtightness (at 50 Pascals): dlr 2 0.94 m3/hr/m2 & 1.0 m3/hr/m
Do not scale from this Drawing, use figured dimensions only. Check all dimensions on site before commencing work. Report any discrepancies to Architect before proceeding. This Drawing and Designs thereon are copyright of the County Council. ©
Budget: €800,000 approx (excluding Vat)
Passive house certification: Not assessed Note: Figures are for one upstairs & one downstairs unit Space heating demand (DEAP): 6.5 kWh/m2/yr (upstairs unit). Primary energy demand (DEAP): 14.6 & 21.1 kWh/m2/yr (note: does not include plug loads) Heat loss form factor (DEAP): 2.45 & 2.8 Energy performance coefficient (EPC): 0.109 & 0.109 Carbon performance coefficient (CPC): 0.105 & 0.105
06.CEILING: GROUND FLOOR CEILING: SUSPENDED GYPSUM PLASTERBOARD LINED SUSPENDED CEILING SYSTEM FIRST FLOOR CEILING: 62.5MM INSULATION / 2 LAYERS GYPSUM PLASTERBOARD COMPOSITE BOARD WITH SKIM FINISH UNDERNEATH FIRE RESISTANT. 07.INTERNAL MASONRY WALLS 100/ 215 MM CONCRETE BLOCK WALLS TO RUN FROM FLOOR TO CEILINGS AS PER STRUCTURAL ENGINEERS DRAWINGS AND SPECIFICATONS 08.EXTERNAL DOORS / WINDOWS: COMPOSIT WINDOWS AND DOORS ALUMINIUM CLAD WOOD AS PER MAIN SPECIFICATION (U-value 0.76 W(m2)K. )ALUMINIUM EXTERIOR FRAME POLYESTER POWDER COATED TO RAL, TBA, INTERIOR FRAME EUROPEAN REDWOOD FACTORY PAINTED TO RAL TBA TRIPLE GLAZED TWO CONTINUOUS SEALED UNIT,( with a Ug of 0.6W/(m2K), Solar gain value of 0.80 with a light transmittance of 72%. Black warm edge spacers with 90% argon gas fill.) SAFETY GLASS BELOW 800MM IN ALL WINDOWS AND DOORS, OPAQUE GLASS TO BATHROOMS IRONMONGERY AS PER SCHEDULE 09.CANOPY/BALCONIES SEE DETAILS AND LAYOUT DRAWINGS 10.INTERNAL STAIRS AND HANDRAIL: SEE DETAILS AND LAYOUT DRAWINGS 11.INTERNAL JOINERY: SEE DETAILS AND LAYOUT DRAWINGS 12.SERVICE CUPBOARDS SEE DETAILS AND LAYOUT DRAWINGS. 13.DRAINAGE: SEE MECHANICAL AND ELECTRICAL ENGINEERS AND STRUCTURAL / CIVIL ENGINEERS DRAWINGS FOR DETAILS. INSULATE TIGHTLY AROUND SOIL VENT PIPES IN BATHROOM BUILDOUTS. SOIL VENT PIPES TO RISE UP TO ATTIC SPACE AND BEND TO EXTRACT AT REAR SIDE OF PITCHED ROOF 14.RAINWATER: ALUMINUM RAINWATER GEAR. ALL RAINWATER PIPES TO RUN DIRECTLY INTO GROUND AND TO BE CONNECTED INTO BACK INLET GULLEYS. SEE MAIN SPECIFICATION AND STRUCTURAL / CIVIL ENGINEERS FOR FURTHER DETAILS.
BER: A1 (14.6 kWh/m2/yr) & A1 (21.10 kWh/m2/yr)
Project
Comhairle Contae County Council
Drg
THE MEWS SALLYNOGGIN PARK NORTH ELEVATION SOUTH ELEVATION
Scale 1:50@A1 1:100@A3 Date
Tender
Roof: Pitched roof with Roadstone SL8 slate grey roof tiles externally, followed beneath by batten space, breather membrane, 75mm/100mm Xtratherm XO over rafters, 100m XtroLiner XO between rafters, vapour control layer, plasterboard. U-value: 0.13/0.11 W/m2K
CAD Ref -
Job No - 1809 Drn.
Chd.
Drg 100/007
Architects Department County Hall, Marine Road, Dun Laoghaire, Co. Dublin. Phone (01) 2054700 Fax (01) 2300391
Thermal bridging: Several courses of Quinn Lite AAC blocks at and above subfloor; Cavalok BigBlok cavity closers; Isokorb thermal breaks at balconies. Y-value of 0.08 W/m2K used – as per Acceptable Construction Details.
Rev A
Windows: Triple glazed Rationel aluclad argon-filled windows. Overall U-value: 0.79 to 0.82 W/m2K
Ground floor: Screed on Xtratherm XT/UF rigid PIR insulation, on radon membrane, on precast concrete slab. U-value: 54.74 W/m2K. Strip foundation to perimeter of building.
Heating system: Direct electric heating via Dimplex radiant electric heating panels, Dimplex EDEL hot water heat pump integrated in 200 litre domestic hot water tank, with co-efficient of performance of 3.43 (EN16147) and heat loss rate from cylinder of 1.85 kW per 24 hours. Ventilation: Xpelair Xcell 150QV MVHR system with 89% heat recovery efficiency.
Walls: External render on concrete block, on full-fill Xtratherm Cavitytherm rigid PIR insulation, on concrete block. U-value: 0.15 W/ m2K. Quinn Lite thermal blocks to base of walls.
Electricity: 4 x Dimplex 300Wp solar PV panels with total electrical contribution of 980.16 kWh per year per dwelling (DEAP).
Energy bills: Unavailable
dlr
Comhairle Contae County Council
FINISH FLOOR ON 5MM SOUND IINSULATION UNDERLAY (NOT IN
Do not scale from this Drawing, use figured dimensions only. Check all dimensions on site before commencing work. Report any discrepancies to Architect before proceeding. This Drawing and Designs thereon are copyright of the County Council. ©
ph+ | case study | 41
