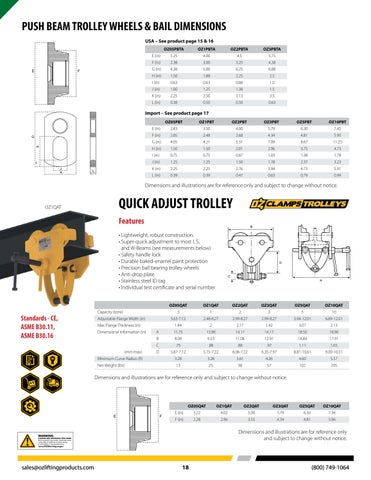

PUSH BEAM TROLLEY WHEELS & BAIL DIMENSIONS USA – See product page 15 & 16 OZ05PBTA
OZ1PBTA
OZ2PBTA
E (in)
3.25
4.00
4.5
OZ3PBTA 5.75
F (in)
2.38
3.00
3.25
4.38
G (in)
4.38
5.00
6.25
6.88
H (in)
1.50
1.88
2.25
2.5
I (in)
0.63
0.63
0.88
1.0
J (in)
1.00
1.25
1.38
1.5
K (in)
2.25
2.50
3.13
3.5
L (in)
0.38
0.50
0.50
0.63
Import – See product page 17 OZ05PBT
OZ1PBT
OZ2PBT
OZ3PBT
OZ5PBT
OZ10PBT
E (in)
2.83
3.50
4.00
5.79
6.30
7.45
F (in)
2.05
2.48
2.68
4.34
4.81
5.95
G (in)
4.05
4.21
5.31
7.09
8.67
11.23
H (in)
1.50
1.50
2.01
2.96
3.75
4.73
I (in)
0.75
0.75
0.87
1.03
1.38
1.78 3.23
J (in)
1.25
1.25
1.50
1.78
2.37
K (in)
2.25
2.25
2.76
3.94
4.73
5.91
L (in)
0.39
0.39
0.47
0.63
0.79
0.99
Dimensions and illustrations are for reference only and subject to change without notice.
OZ1QAT
QUICK ADJUST TROLLEY Features • Lightweight, robust construction. • Super-quick adjustment to most I, S, and W-Beams (see measurements below) • Safety handle lock • Durable baked-enamel paint protection • Precision ball bearing trolley wheels • Anti-drop plate • Stainless steel ID tag • Individual test certificate and serial number OZ05QAT
Standards - CE, ASME B30.11, ASME B30.16
Adjustable Flange Width (in)
OZ2QAT
OZ3QAT
OZ5QAT
1
2
3
5
3.63-7.12
OZ10QAT 10
2.48-8.27
2.99-8.27
2.99-8.27
3.94-12.01
6.89-12.01
Max Flange Thickness (in)
1.44
2
2.17
1.42
3.07
2.13
Dimensional Information (in)
A
11.75
13.98
14.17
14.17
18.50
18.90 17.91
(min-max) W
OZ1QAT
Capacity (tons) .5
B
8.00
9.53
11.06
12.91
14.84
C
.75
.88
.88
.97
1.11
D
5.87-7.12
5.75-7.22
6.06-7.22
6.35-7.97
8.81-10.61
9.00-10.51
3.28
3.28
3.61
4.26
4.60
5.57
25
38
57
102
205
Minimum Curve Radius (ft)
Net Weight (lbs) 13
1.65
Dimensions and illustrations are for reference only and subject to change without notice.
OZ05QAT
OZ1QAT
OZ2QAT
OZ3QAT
OZ5QAT
OZ10QAT
E (in)
3.22
4.02
5.00
5.79
6.30
7.34
F (in)
2.28
2.96
3.55
4.34
4.81
5.96
Dimensions and illustrations are for reference only and subject to change without notice.
