4 2 4 22 4 4 2 4 8 14 1
PART NUMBER 51709 51736 56612 51711 56625 51718 51736 56619 56651 56650 56629
8x8 Post Base (8x8-PB-IW) Post to Beam Bolt Offset (P2B-BO-IW) "T" Tie Plate (TTP) Truss Accent (TA-IW) OWT Timber Screw 1-3/4" 4" Standard Rafter Clip (RC-IW-4) Post to Beam Bolt Offset (P2B-BO-IW) Truss Base Fan 8:12 OWT Timber Bolt 8-10" OWT Timber Bolt 6-8" OWT Timber Screw 7-1/2"
4 2 6 1 6 10 2 2
8x8x8L 4x4x16L 2x6x8L 2x8x18L 4x6x6L 4x6x12L 4x10x18L 4x10x16L
8x8x8 4x4x16 2x6x8 2x8x18 4x6x6 4x6x12 4x10x18 4x10x16
QTY.
DESCRIPTION

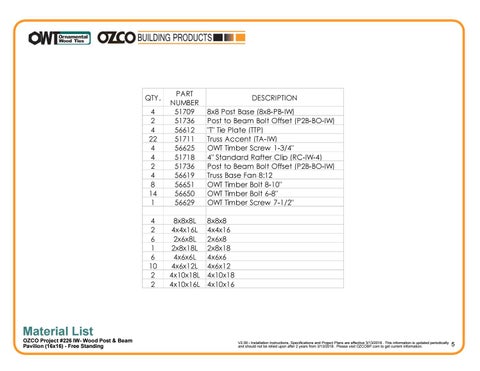

Material List OZCO Project #226 IW- Wood Post & Beam Pavilion (16x16) - Free Standing
V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/13/2018 . This information is updated periodically and should not be relied upon after 2 years from 3/13/2018 . Please visit OZCOBP.com to get current information.
