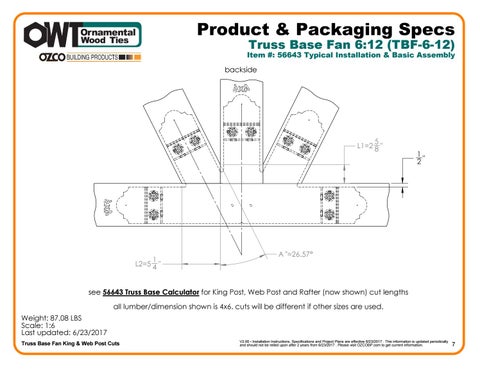

Product & Packaging Specs Truss Base Fan 6:12 (TBF-6-12)
Item #: 56643 Typical Installation & Basic Assembly backside
5 L1=2 8 "
1 L2=5 4 "
1 2"
A =26.57°
see 56643 Truss Base Calculator for King Post, Web Post and Rafter (now shown) cut lengths all lumber/dimension shown is 4x6. cuts will be different if other sizes are used. Weight: 87.08 LBS Scale: 1:6 Last updated: 6/23/2017 Truss Base Fan King & Web Post Cuts
