West Marina Master Plan

2022 - 2023

Al Jalil Developers

Designation: GM Design

Project - West Marina Housing Scheme

Client - Al Jalil Developers

Consultant: Surbana Jurong International (Singapour)

Location - Lahore

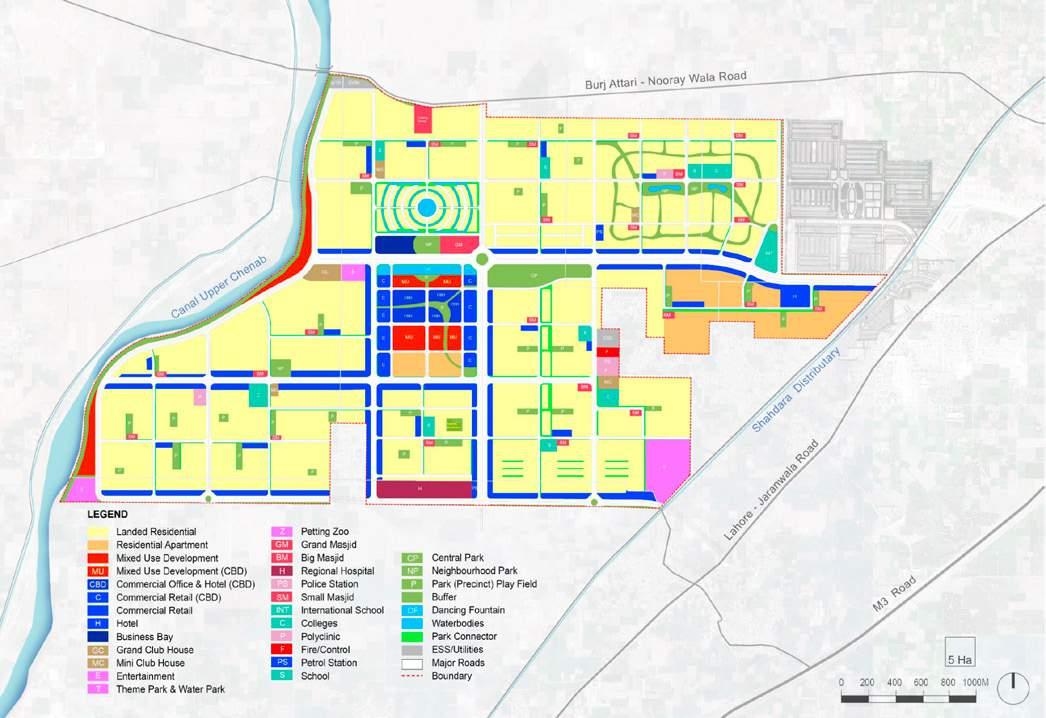

Program - Detailed master planning

In early 2022, Al Jalil Developers Design Wing in collaboration with Surbana Jurong Consultants embarked upon the designing of a master plan for West Marina Development Project on Main Sharaqpur Road near motor way interchange in Lahore. The objective of the task is to develop a structured, comprehensive, integrated and implementable master plan to achieve a holistic, long-term vision that aligns with the New Lahore Master plan of 2050.

The project is strategically located at Al-Noor Orchard Housing Scheme, about 3km from Faizpur Interchange, Main Sharaqpur Road, Lahore, Pakistan. It covers an area of about 3,000 acres.

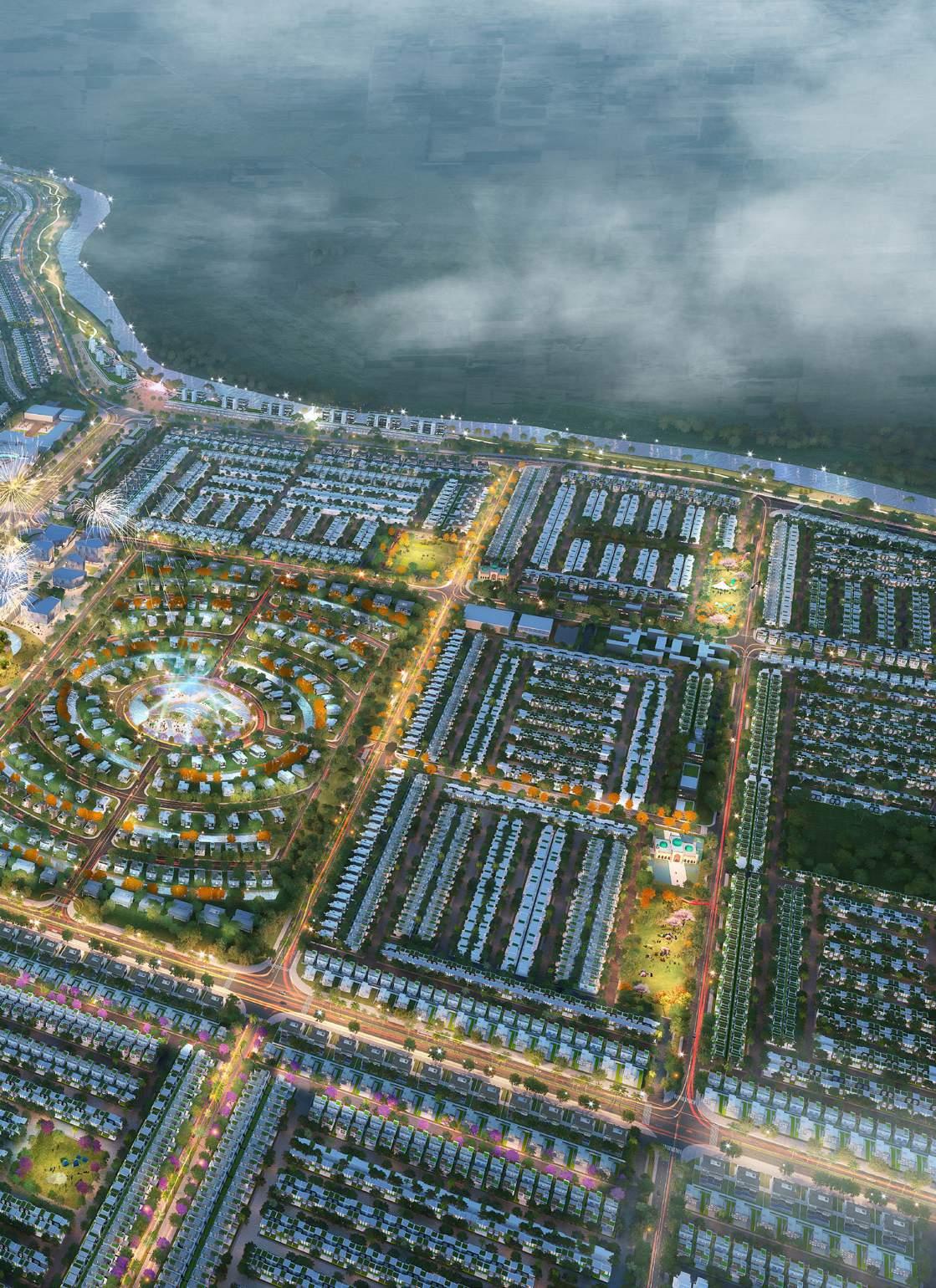

The development will emerge among the new residential schemes in the vicinity of Lahore. Hence, AJD intends to develop the project as a sustainable residential community, with unique selling point. In addition, the marina residential is featured along the water channel emanating from a lake.

Area - 3000 Acers

The conducive geographic condition of Lahore compared to many other major cities in Pakistan has provided solid ground for Lahore to urbanize rapidly. As such, it attracts more internal migration, directly impacting housing demand. However, other significant issues such as air pollution, traffic congestion and flooding came out as top priorities that must be solved urgently in order to provide a liveable environment to at least 12 million urban population in Lahore.

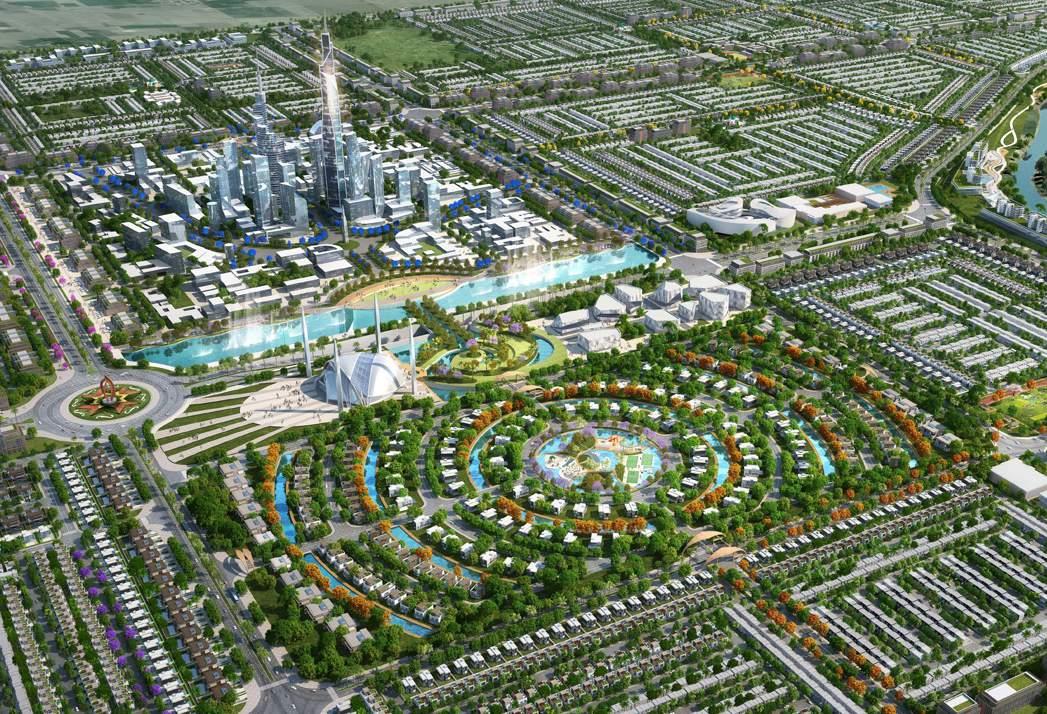

The West Marina development comes as an effort to alleviate some of these concerns by providing a better living township in its attempt to restore the lost poetic historical image of the “City of Gardens” we like to call it a “Garden City In The City Of Gardens’’.

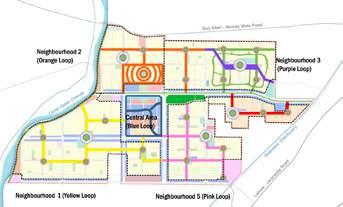

CONNECTING THE NEIGHBOURHOODS WITH GARDEN LOOPS

CONNECTING THE NEIGHBOURHOODS WITH GARDEN LOOPS

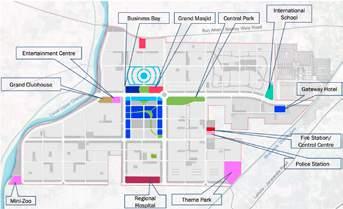

CREATING CITY LEVEL PUBLIC FACILITIES

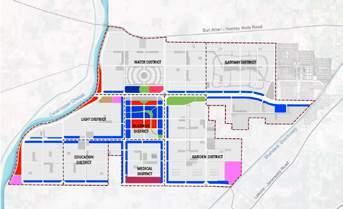

CREATING PRECINCT-LEVEL PUBLIC FACILITIES

DEVELOPING ICONIC BUSINESS GATEWAY

CREATING ATTRACTIONS AND TOURISM DESTINATIONS

West Marina Development is well-positioned to support the growth of New Lahore. It’s unique and differentiating factor - ‘Garden Network’ is providing a platform for people to easily access and bond with the wider community. As drawing people closer to nature, these spaces can be beneficial to the health and wellbeing of residents and users of West Marina.

It is a home for walkable neighbourhoods, car-light community, smart features and new lifestyle choices. This highly liveable township is raising the bar higher for residential developments in Lahore.
