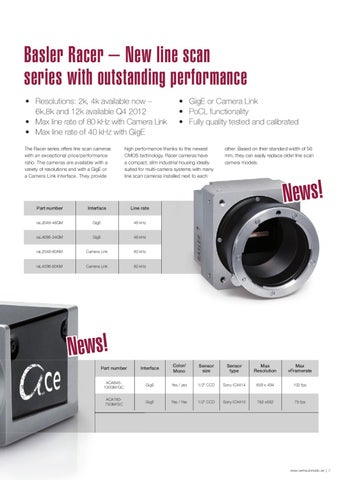

Basler Racer – New line scan series with outstanding performance • Resolutions: 2k, 4k available now – 6k,8k and 12k available Q4 2012 • Max line rate of 80 kHz with Camera Link • Max line rate of 40 kHz with GigE The Racer series offers line scan cameras with an exceptional price/performance ratio. The cameras are available with a variety of resolutions and with a GigE or a Camera Link interface. They provide
• GigE or Camera Link • PoCL functionality • Fully quality tested and calibrated
high performance thanks to the newest CMOS technology. Racer cameras have a compact, slim industrial housing ideally suited for multi-camera systems with many line scan cameras installed next to each
other. Based on their standard width of 56 mm, they can easily replace older line scan camera models.
News! Part number
Interface
Line rate
raL2048-48GM
GigE
48 kHz
raL4096-24GM
GigE
48 kHz
raL2048-80KM
Camera Link
80 kHz
raL4096-80KM
Camera Link
80 kHz
News! Part number
Int Interface
Color/ Mono
Sensor size
Sensor type
Max Resolution
Max vFramerate
ACA645100GM/GC
GigE
Yes / yes
1/2” CCD
Sony ICX414
659 x 494
100 fps
ACA78075GM/GC
GigE
Yes / Yes
1/2” CCD
Sony ICX415
782 x582
75 fps
www.oemautomatic.se | 7
