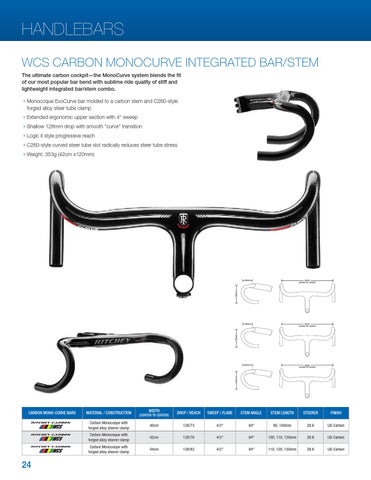

handlebars wcs carbon monocurve INTEGRATED BAR/STEM The ultimate carbon cockpit—the MonoCurve system blends the fit of our most popular bar bend with sublime ride quality of stiff and lightweight integrated bar/stem combo. »» Monocoque EvoCurve bar molded to a carbon stem and C260-style
forged alloy steer tube clamp »» Extended ergonomic upper section with 4° sweep »» Shallow 128mm drop with smooth “curve” transition »» Logic II style progressive reach »» C260-style curved steer tube slot radically reduces steer tube stress »» Weight: 353g (42cm x120mm)
40cm (center to center)
78mm
42cm (center to center)
83mm
44cm (center to center)
128mm
128mm
128mm
73mm
CARBON Mono-curve bars
24
width
drop / reach
sweep / Flare
STEM ANGLE
Stem length
steerer
finish
Carbon Monocoque with forged alloy steerer clamp
40cm
128/73
4/2°
84°
90, 100mm
28.6
UD Carbon
Carbon Monocoque with forged alloy steerer clamp
42cm
128/78
4/2°
84°
100, 110, 120mm
28.6
UD Carbon
Carbon Monocoque with forged alloy steerer clamp
44cm
128/83
4/2°
84°
110, 120, 130mm
28.6
UD Carbon
material / construction
(center to center)
