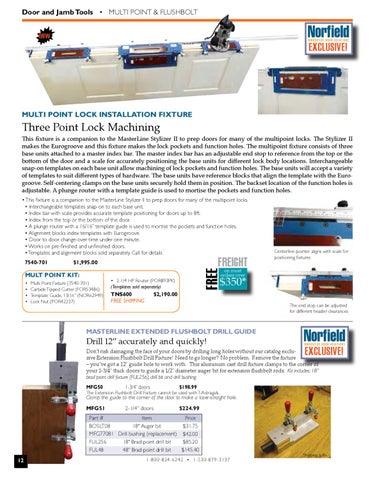

Door and Jamb Tools • mULTI POINT & FLUSHBOLT
new
EXCLUSIVE!
multi point lock installation fixture
Three Point Lock Machining This fixture is a companion to the MasterLine Stylizer II to prep doors for many of the multipoint locks. The Stylizer II makes the Eurogroove and this fixture makes the lock pockets and function holes. The multipoint fixture consists of three base units attached to a master index bar. The master index bar has an adjustable end stop to reference from the top or the bottom of the door and a scale for accurately positioning the base units for different lock body locations. Interchangeable snap-on templates on each base unit allow machining of lock pockets and function holes. The base units will accept a variety of templates to suit different types of hardware. The base units have reference blocks that align the template with the Eurogroove. Self-centering clamps on the base units securely hold them in position. The backset location of the function holes is adjustable. A plunge router with a template guide is used to mortise the pockets and function holes. • This fixture is a companion to the MasterLine Stylizer II to prep doors for many of the multipoint locks. • Interchangeable templates snap-on to each base unit. • Index bar with scale provides accurate template positioning for doors up to 8ft. • Index from the top or the bottom of the door. • A plunge router with a 16/16” template guide is used to mortise the pockets and function holes. • Alignment blocks index templates with Eurogroove. • Door to door change-over time under one minute. • Works on pre-finished and unfinished doors. • Templates and alignment blocks sold separately. Call for details
Mult Point Kit: • • • •
FREIGHT on most
$1,995.00
Multi Point Fixture (7540-701) Carbide Tipped Cutter (FOR53486) Template Guide, 13/16” (NOR62949) Lock Nut (POR42237)
FREE
7540-701
orders over
$350*
• 2-1/4 HP Router (POR893PK) (Templates sold separately)
TNS600 Free shipping
Centerline pointer aligns with scale for positioning fixtures
$2,190.00 The end stop can be adjusted for different header clearances
Masterline Extended flushbolt Drill Guide
Drill 12” accurately and quickly!
EXCLUSIVE!
Don’t risk damaging the face of your doors by drilling long holes without our catalog exclusive Extension Flushbolt Drill Fixture! Need to go longer? No problem. Remove the fixture – you’ve got a 12" guide hole to work with. This aluminum cast drill fixture clamps to the corner of your 1-3/4" thick doors to guide a 1/2" diameter auger bit for extension flushbolt rods. Kit includes: 18” brad point drill fixture (FUL256), drill bit and drill bushing. mfg50
1-3/4” doors
$198.99
The Extension Flushbolt Drill Fixture cannot be used with T-Astragals.
Clamp the guide to the corner of the door to make a laser-straight hole. MFG51
2-1/4” doors
Part # Item BOSLT08 18" Auger bit MFG77081 Drill bushing (replacement) FUL256 18" Brad-point drill bit FUL48 48” Brad-point drill bit 12
$224.99 Price $31.75 $42.00 $85.20 $145.40
1-800-824-6242 • 1-530-879-3137
Shipping: 6 lbs.
