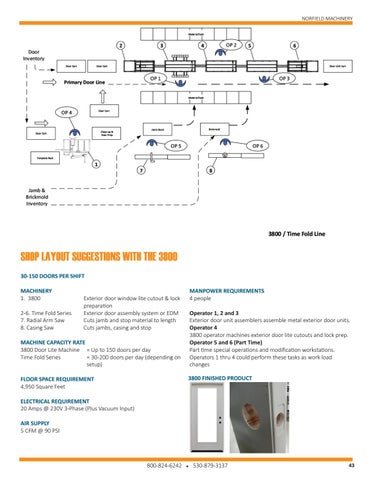

SHOP LAYOUT SUGGESTIONS WITH THE 3800 30-150 DOORS PER SHIFT MACHINERY 1. 3800 2-6. Time Fold Series 7. Radial Arm Saw 8. Casing Saw
MANPOWER REQUIREMENTS 4 people
Exterior door window lite cutout & lock preparation Exterior door assembly system or EDM Cuts jamb and stop material to length Cuts jambs, casing and stop
Operator 1, 2 and 3 Exterior door unit assemblers assemble metal exterior door units. Operator 4 3800 operator machines exterior door lite cutouts and lock prep. Operator 5 and 6 (Part Time) MACHINE CAPACITY RATE Part time special operations and modification workstations. 3800 Door Lite Machine = Up to 150 doors per day Time Fold Series = 30-200 doors per day (depending on Operators 1 thru 4 could perform these tasks as work load changes setup) 3800 FINISHED PRODUCT
FLOOR SPACE REQUIREMENT 4,950 Square Feet ELECTRICAL REQUIREMENT 20 Amps @ 230V 3-Phase (Plus Vacuum Input) AIR SUPPLY 5 CFM @ 90 PSI
