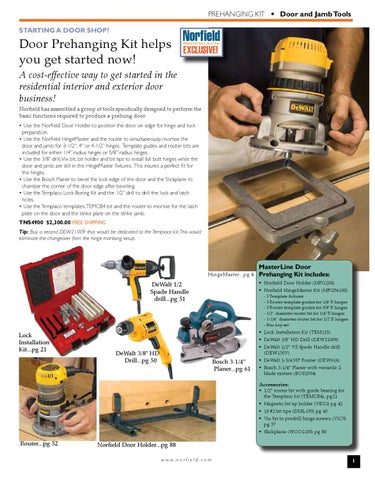

prehanging kit • Door and Jamb Tools Starting a door shop?
Door Prehanging Kit helps EXCLUSIVE! you get started now! A cost-effective way to get started in the residential interior and exterior door business! Norfield has assembled a group of tools specifically designed to perform the basic functions required to produce a prehung door. • Use the Norfield Door Holder to position the door on edge for hinge and lock preparation. • Use the Norfield HingeMaster and the router to simultaneously mortise the door and jamb for 3-1/2”, 4” or 4-1/2” hinges. Template guides and router bits are included for either 1/4” radius hinges or 5/8” radius hinges. • Use the 3/8” drill, Vix bit, bit holder and bit tips to install full butt hinges while the door and jamb are still in the HingeMaster fixtures. This insures a perfect fit for the hinges. • Use the Bosch Planer to bevel the lock edge of the door and the Slickplane to chamber the corner of the door edge after beveling. • Use the Templaco Lock Boring Kit and the 1/2” drill to drill the lock and latch holes. • Use the Templaco templates, TEMCB4 bit and the router to mortise for the latch plate on the door and the strike plate on the strike jamb. TNS4900 $2,300.00 Free shipping Tip: Buy a second DEW21009 that would be dedicated to the Templaco kit. This would eliminate the changeover from the hinge mortising setup.
MasterLine Door
HingeMaster...pg 4 Prehanging Kit includes: • Norfield Door Holder (MFG200)
DeWalt 1/2 Spade Handle drill...pg 51
Lock Installation Kit...pg 21
• Norfield HingeMaster Kit (MFG56100)
- 3 Template fixtures - 3 Router template guides for 1/4”R hinges - 3 Router template guides for 5/8”R hinges - 1/2” diameter router bit for 1/4”R hinges - 1-1/4” diameter router bit for 1/2”R hinges - Hex key set
• Lock Installation Kit (TEM115) • DeWalt 3/8" HD Drill (DEW21009) • DeWalt 1/2” VS Spade Handle drill (DEW130V)
DeWalt 3/8" HD Drill...pg 50
Bosch 3-1/4” Planer...pg 61
• DeWalt 1-3/4 HP Router (DEW616) • Bosch 3-1/4” Planer with versatile 2blade system (BOS1594)
Accessories:
• 1/2” router bit with guide bearing for the Templaco kit (TEMCB4), pg21
• Magnetic bit tip holder (VEG2) pg 42 • 10 #2 bit tips (DML190) pg 43 • Vix bit to predrill hinge screws (VIC9) pg 37 • Slickplane (WOO1100) pg 80
Router...pg 52
Norfield Door Holder...pg 88 w w w. n o r fi e l d . c o m
