Clean dust and debris off of the mounting zone with an adhesive cleaning wipe

Updates

Version Date

0 20/02/22 First release

Description Issued from

E. Bighi

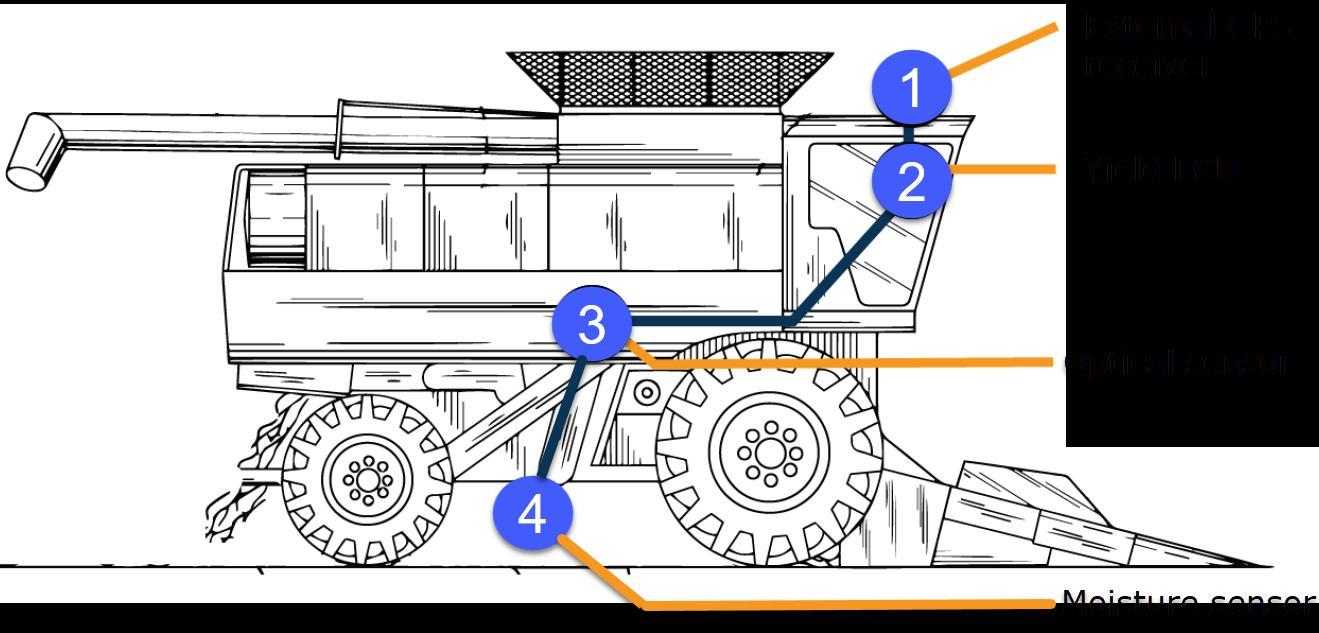

SYSTEM OVERVIEW

1. FieldView Yield ECU. The “brains” of the operation. This device features: 16GB of on-board storage, input for External GPS antenna, Bluetooth® connectivity for pairing with an iPad

2. External GPS receiver with EGNOS correction of the GPS signal.

The GPS receiver should be mounted on the roof of the cab, on the centreline of the combine. Usage of this GPS receiver will provide better positional accuracy than just an external GPS antennae.

3. Optical Sensors

Two sensors will be installed on either side of the clean grain elevator. A light beam is sent between the two sensors, allowing for the measurement of the volume of grain on each paddle. Sensors will be wired directly to the FieldView Yield monitor through the supplied harnesses.

4. Moisture sensor

Moisture Sensor extends the FieldView Yield kit System to provide reliable grain moisture readings. The sensor installs on the base of the clean grain elevator on the lower door and takes capacitance readings from grain as it moves through the elevator. The raw data gathered from the Moisture Sensor is sent to the Yield Monitor and wirelessly uploaded to create high quality moisture maps viewable through the FieldView Cap App.

Installation position on the lower door is important but varies somewhat from harvester to harvester. The key is to install close to where grain exits the cross auger and near the lowest point of the door, just ahead of where significant wear is visible from grain flow.
