The API gateway pattern
API COMPOSITION

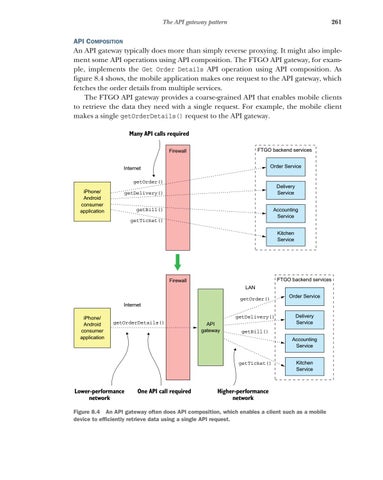

An API gateway typically does more than simply reverse proxying. It might also implement some API operations using API composition. The FTGO API gateway, for example, implements the Get Order Details API operation using API composition. As figure 8.4 shows, the mobile application makes one request to the API gateway, which fetches the order details from multiple services. The FTGO API gateway provides a coarse-grained API that enables mobile clients to retrieve the data they need with a single request. For example, the mobile client makes a single getOrderDetails() request to the API gateway. Many API calls required FTGO backend services
Firewall
Order Service
Internet getOrder() iPhone/ Android consumer application
Delivery Service
getDelivery()
Accounting Service
getBill() getTicket()
Kitchen Service
FTGO backend services
Firewall LAN getOrder()
Order Service
Internet iPhone/ Android consumer application
getDelivery() getOrderDetails()
API gateway
getBill() Accounting Service
getTicket()
Lower-performance network
Delivery Service
One API call required
Kitchen Service
Higher-performance network
Figure 8.4 An API gateway often does API composition, which enables a client such as a mobile device to efficiently retrieve data using a single API request.
