ARCHITECTURE PORTFOLIO

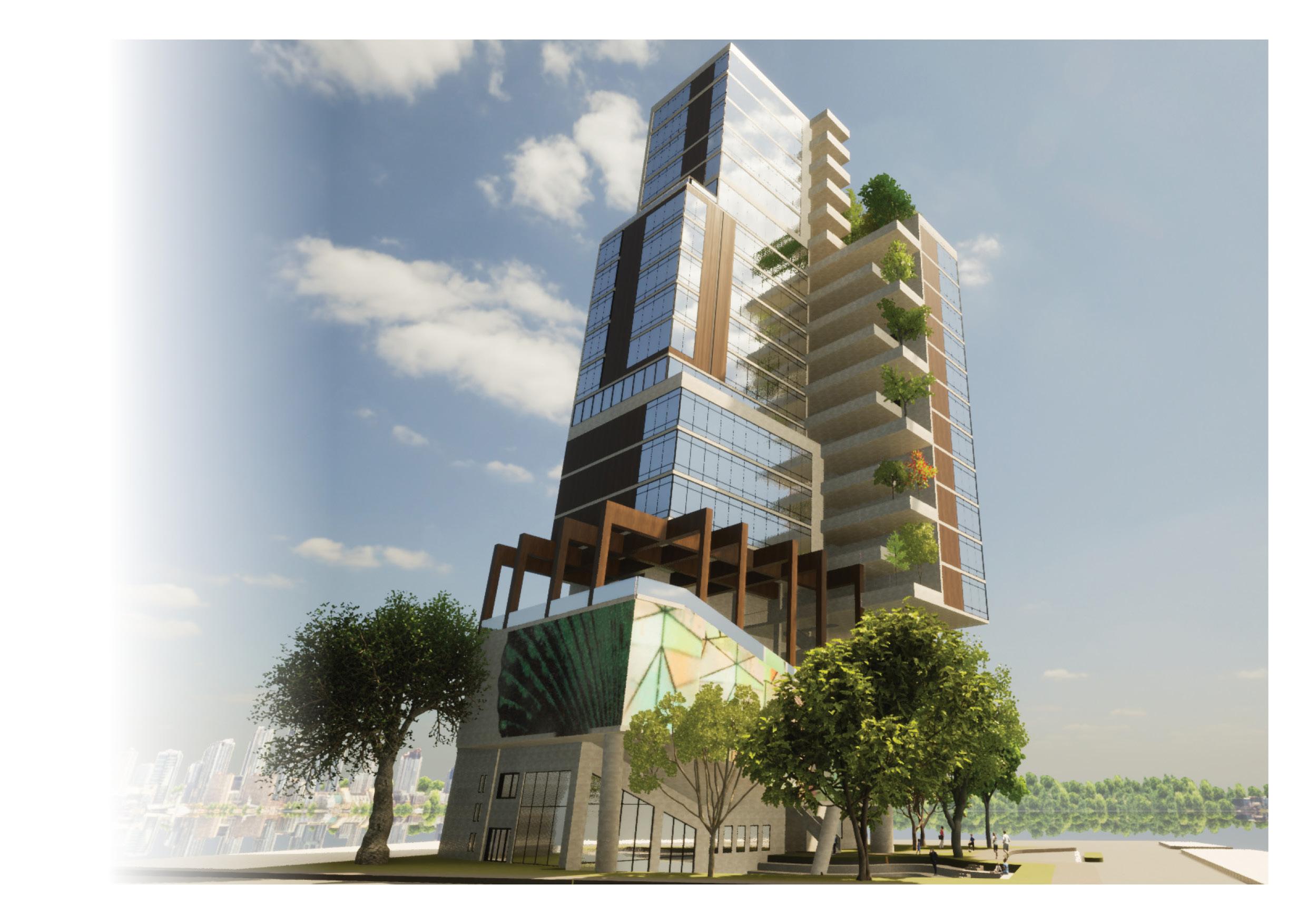

/Hamra Terraces

2022/ Residential & Cultural Project Hamra, Beirut

This project accommodates the families of AUB professors in one tower, and students in the other, while enriching the community with a cultural center along with a public park. Located in the proximity of AUB and Hamra Main Street, the cultural center gives its surrounding community access to an art exhibition space, multi-purpose theater, and a rooftop amphitheater. Additionally, the public park is a stepped, highlighting the theatrical essence Hamra once glew with.

Massing & Orientation

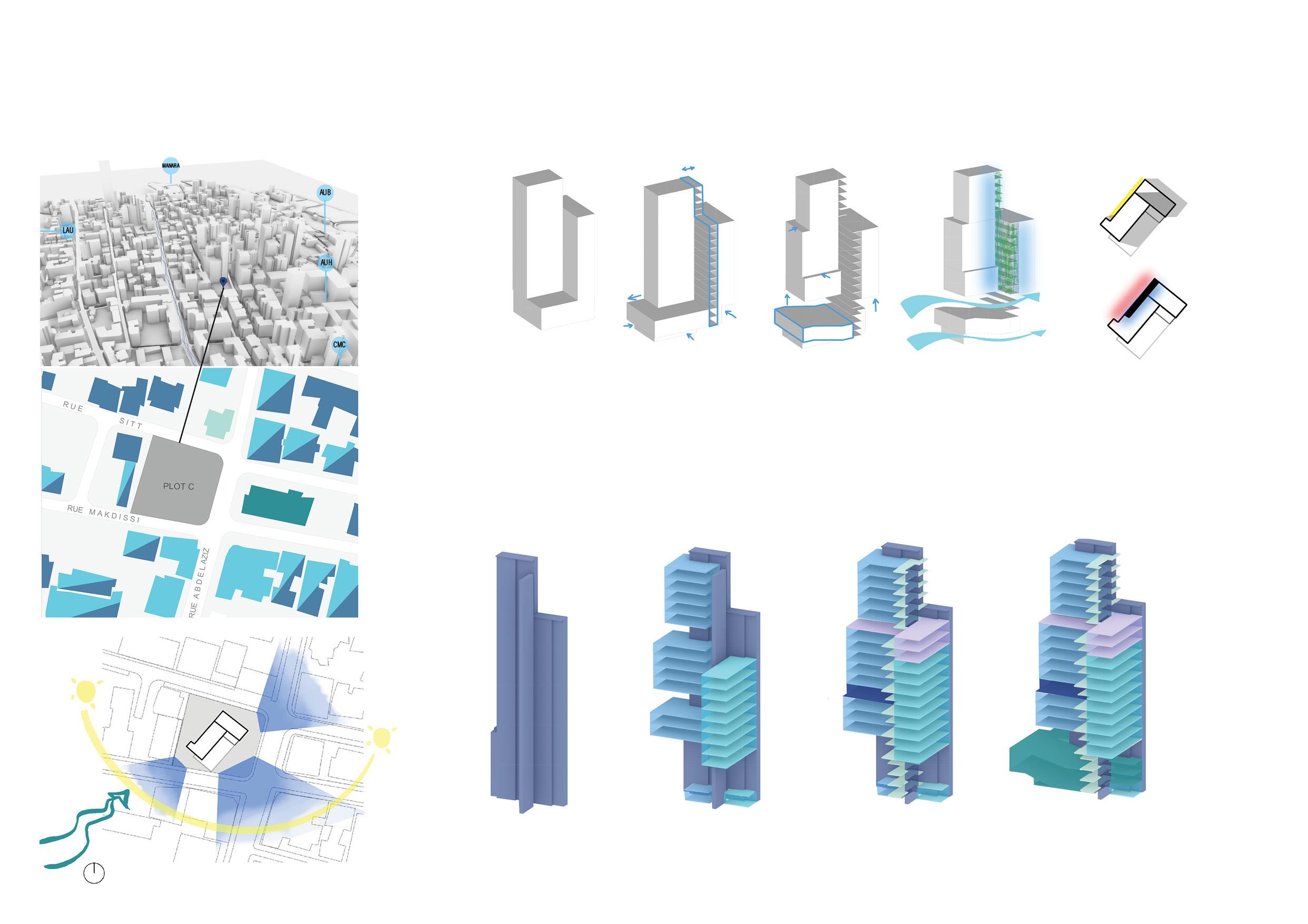

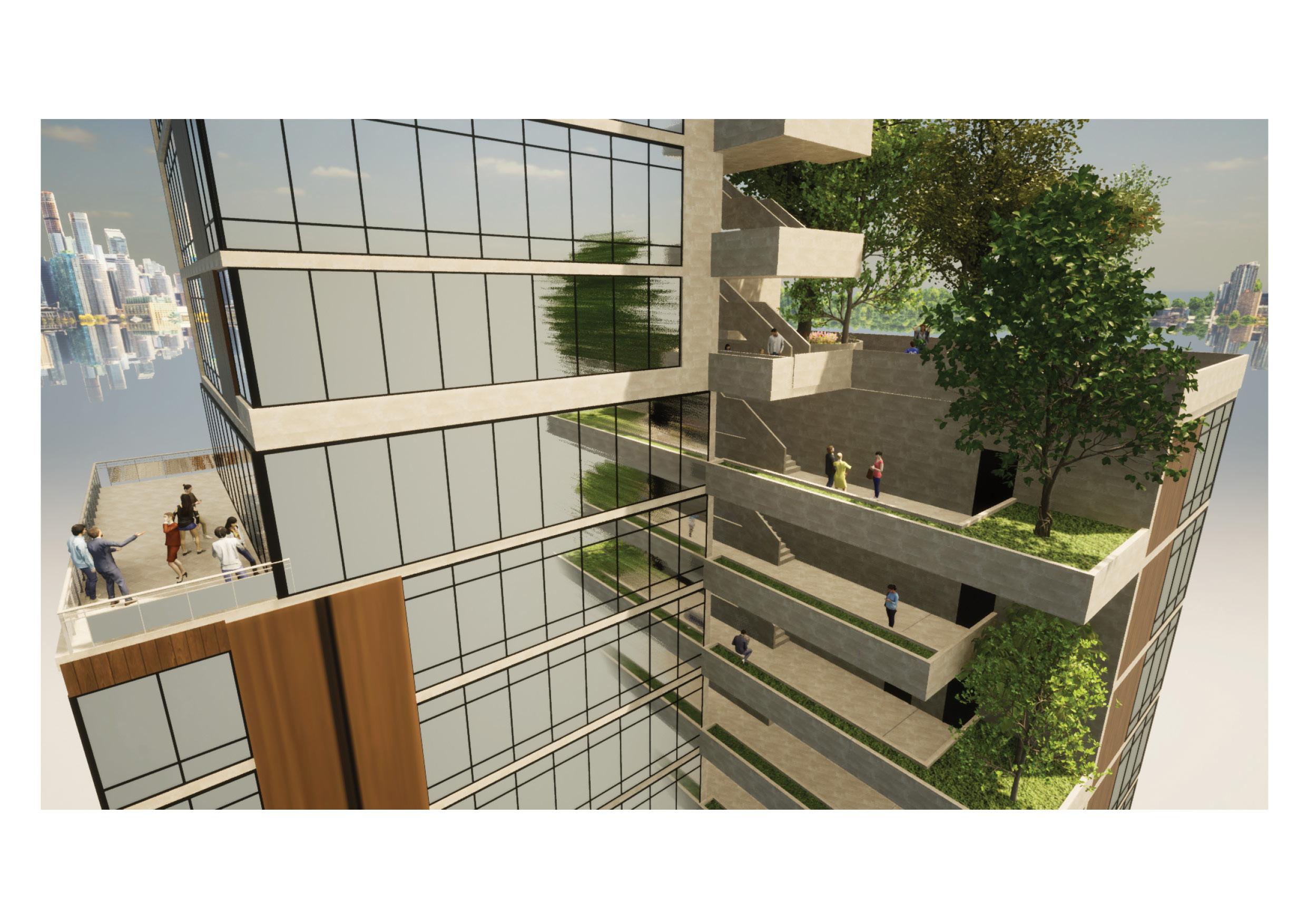

Massing consists of 3 units: Faculty building, students’ dorms, and cultural hub. The connection between the faculty and student buildings is through green terraces.

Orientation of the massing on the site optimizes views, limits sun exposure through self-shading, and the allocation of cores to absorb heat from western sun makes the building efficient with heat loss.

Program

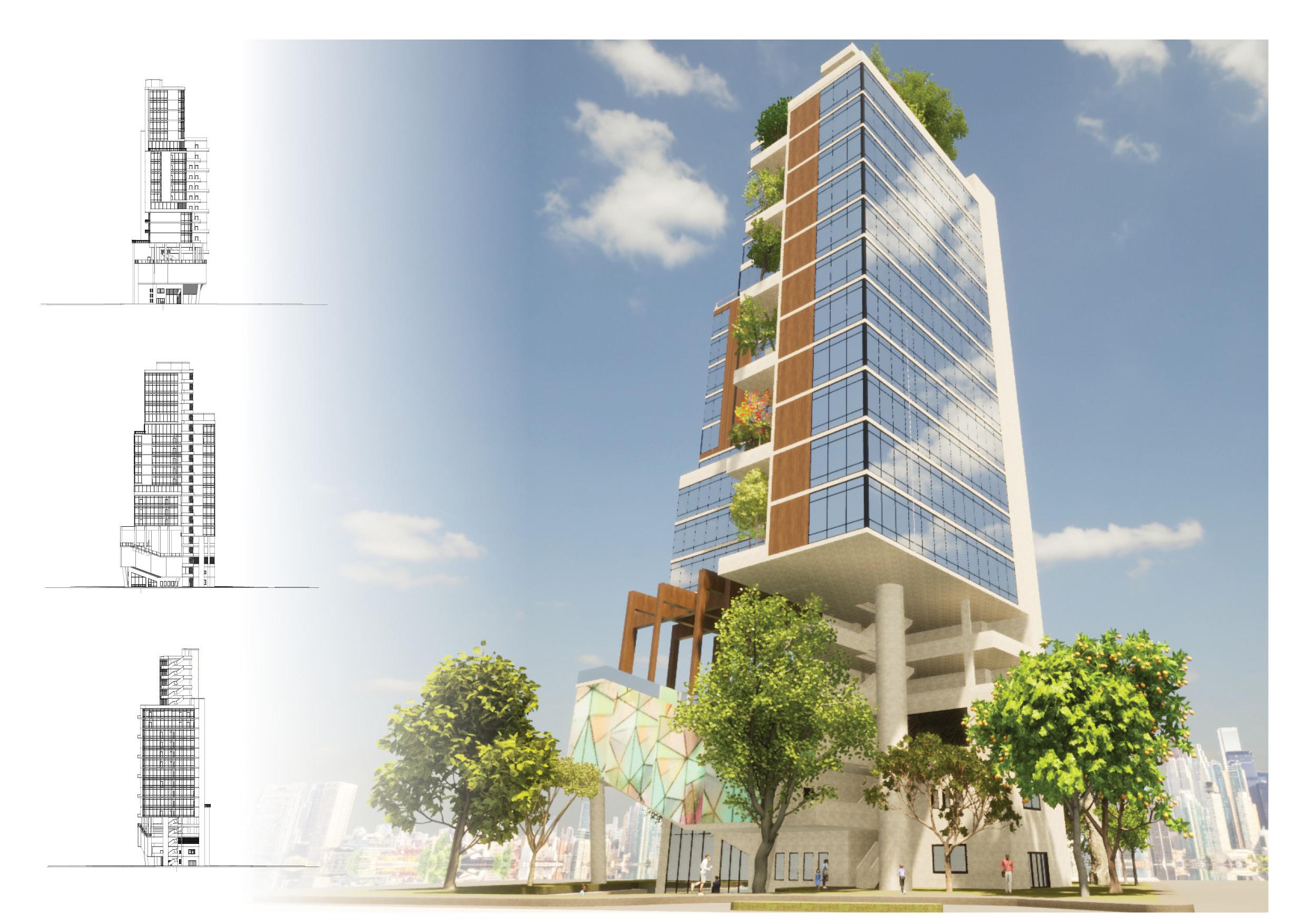

South Elevation

East Elevation

North Elevation

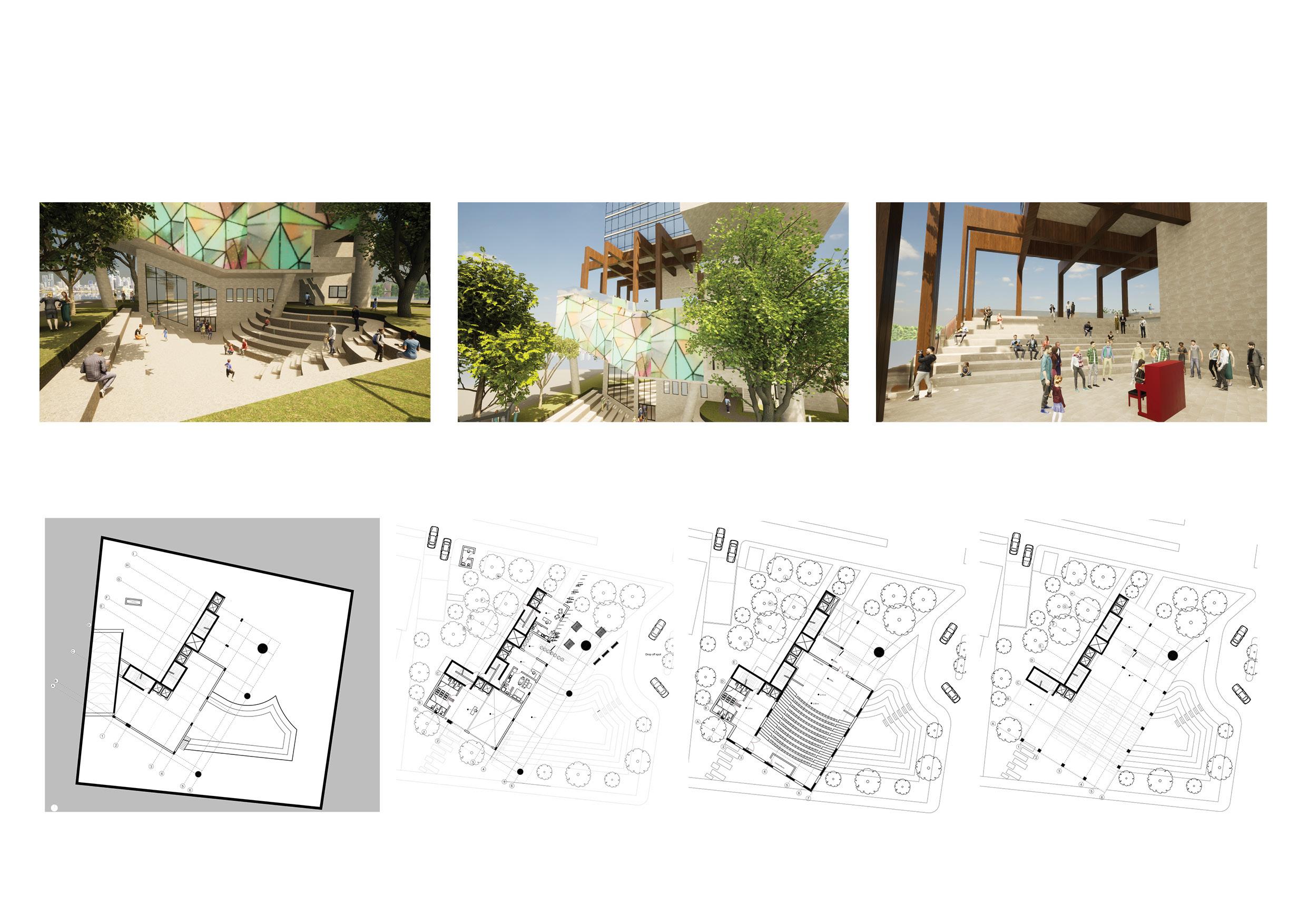

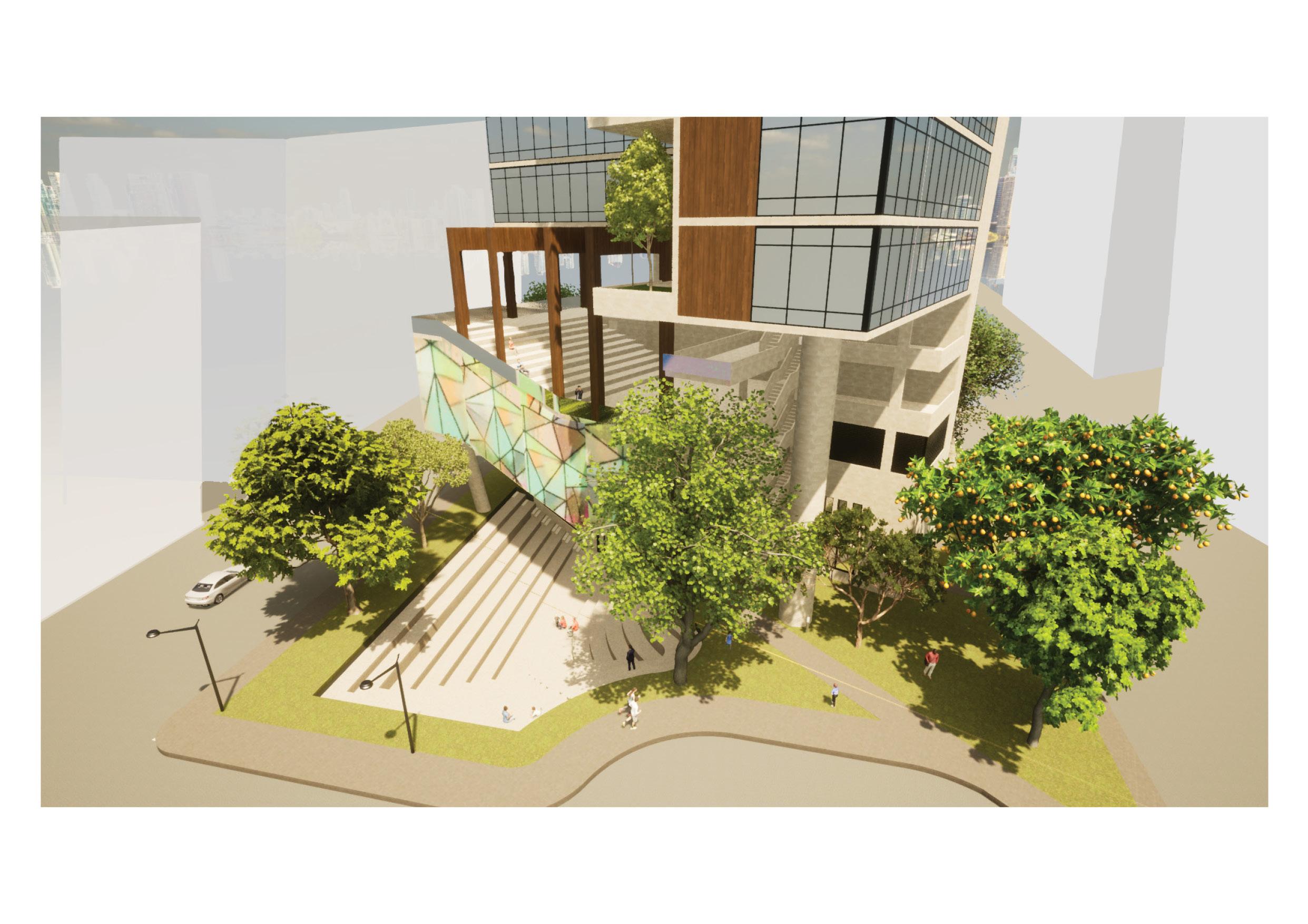

Cultural Center

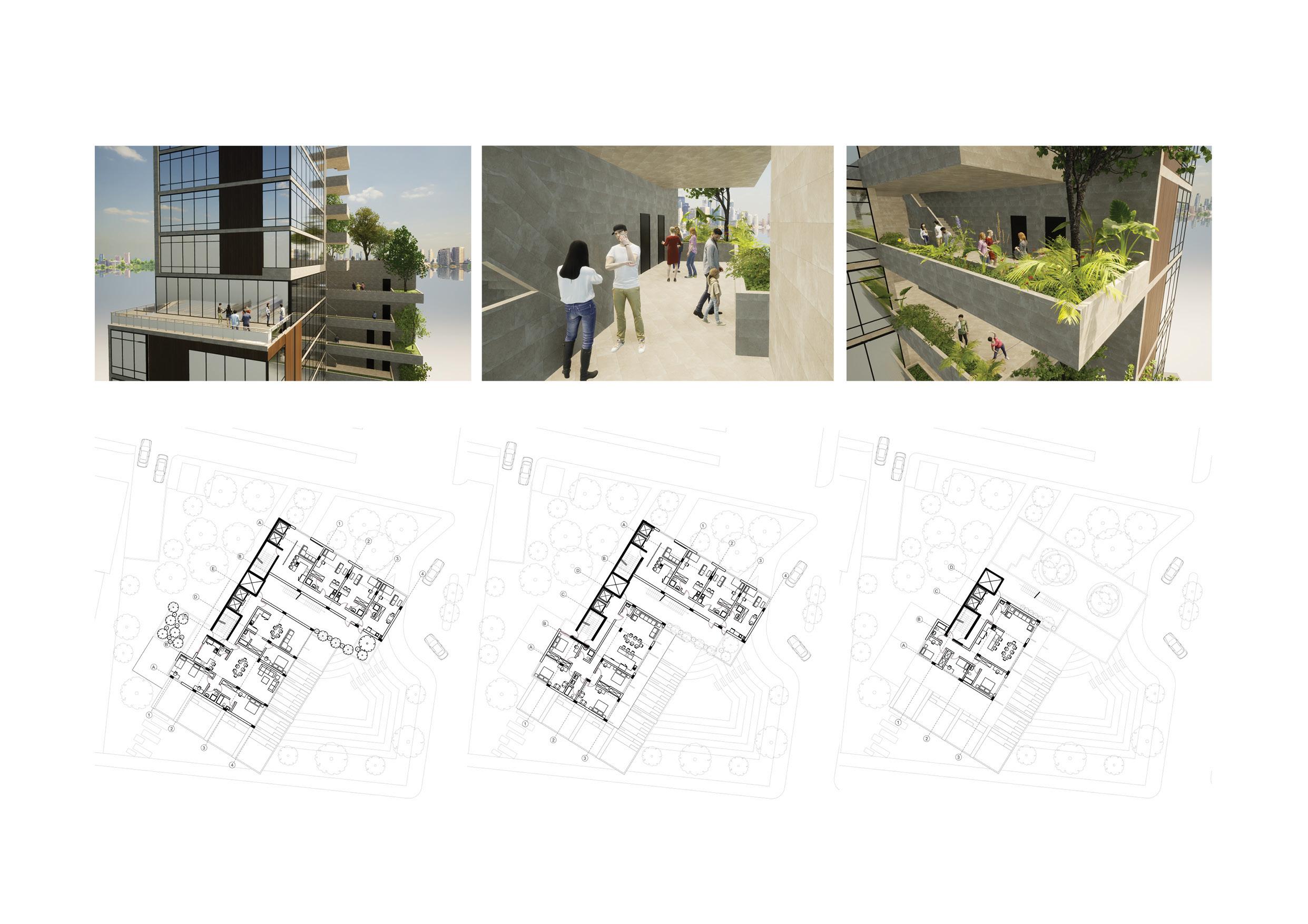

Residential & Dorm Towers

Plan L7-9

Plan L11-14

Plan L17-21

/Hamra Terraces

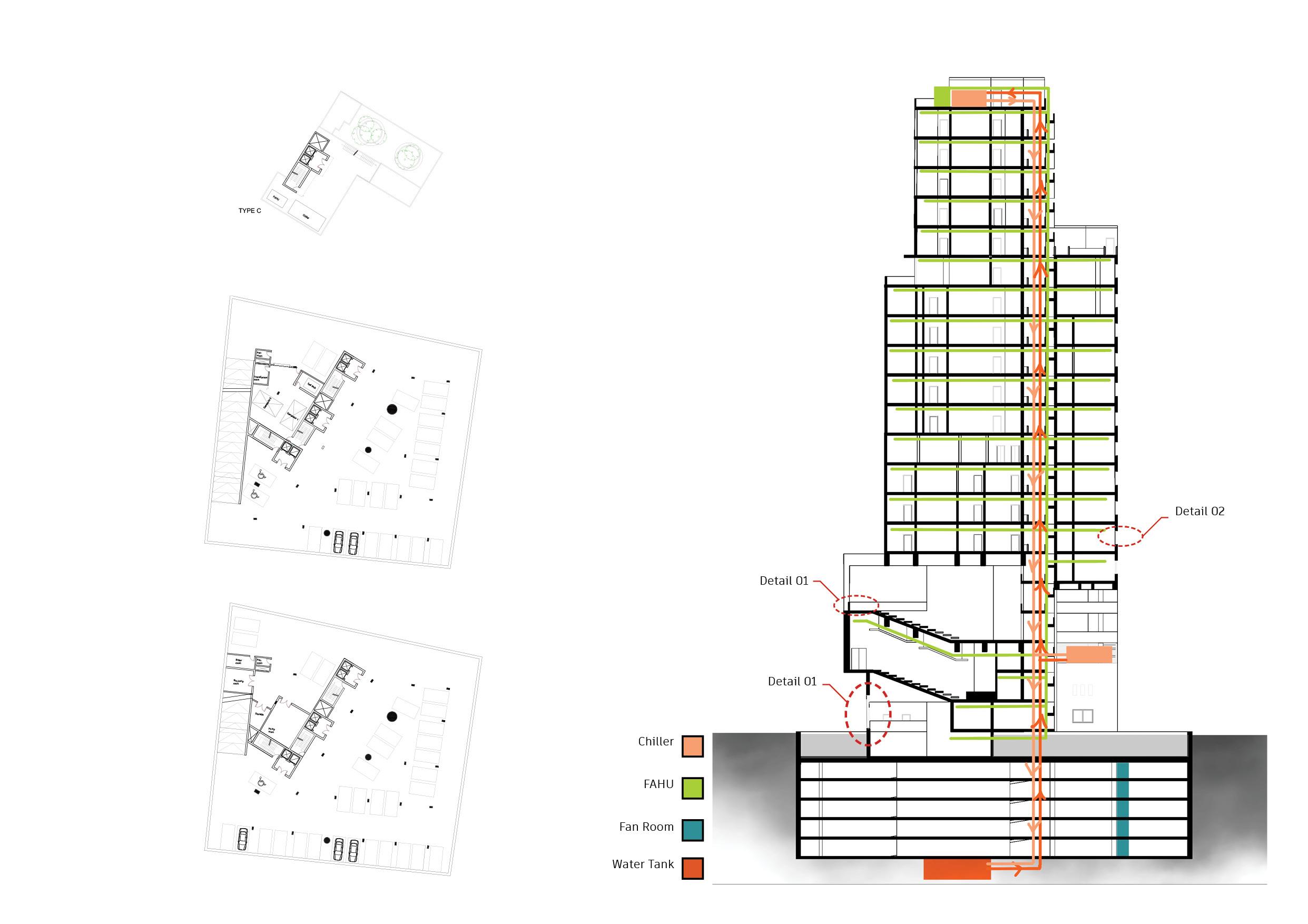

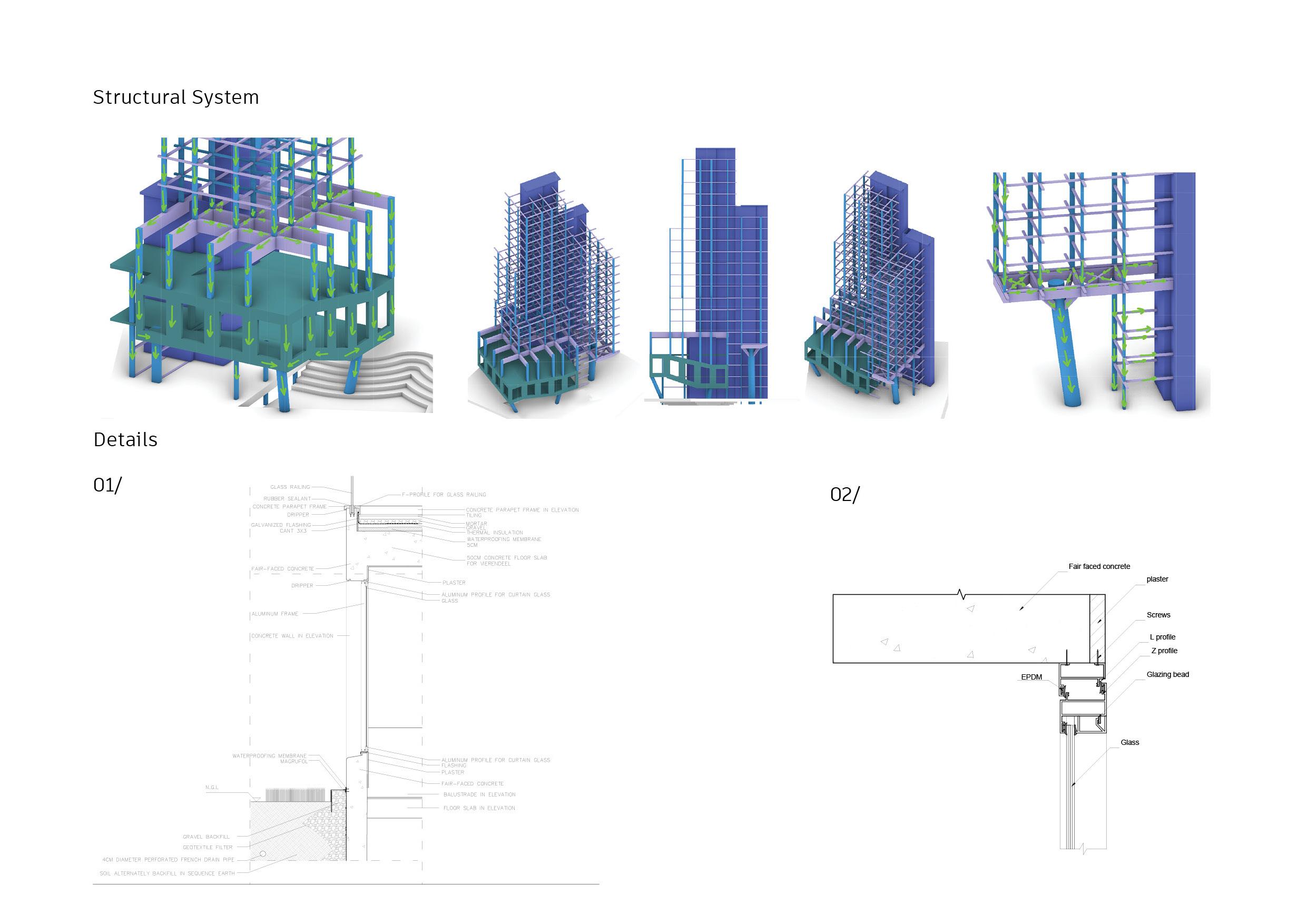

MEP Systems

/Karantina Kare Space

2020/ School Campus Karantina, Beirut

Karantina is an area in Beirut that caries a heavy past. The blast of August 4th left a dent in the history of Lebanon, marking Karantina with destruction. Moreover, its past allowed room from spatial abuse with pollution in different forms suffocating the residents. Therefore, the establishment of a school project must be highly sensistive to the surrounding.

The aim of this school project is to create a safe, comfortable space that educates and addresses environmental issues while simultaneously healing trauma. Throughout the design process, I worked with my inner child and trauma of August 4. I used architectural tools that reduce severe emotions and induce grounding and inclusivity.

Karantina is encompassed by the Mediterranean Sea and Beirut River from the North and East respectively.

Unfortunately the industrial functions of the area abuse the rich bluescapes of the area.

Moreover, the industrialization of Karantina invited a heavy vehicular turnover, increasing air and noise pollution.

Site Conditions

Heavily polluted area Factory Junkyard Recycling Factory Construction Site

Mediterranean Sea Beirut River Emissions Traffic Highway Main Street Alleyways

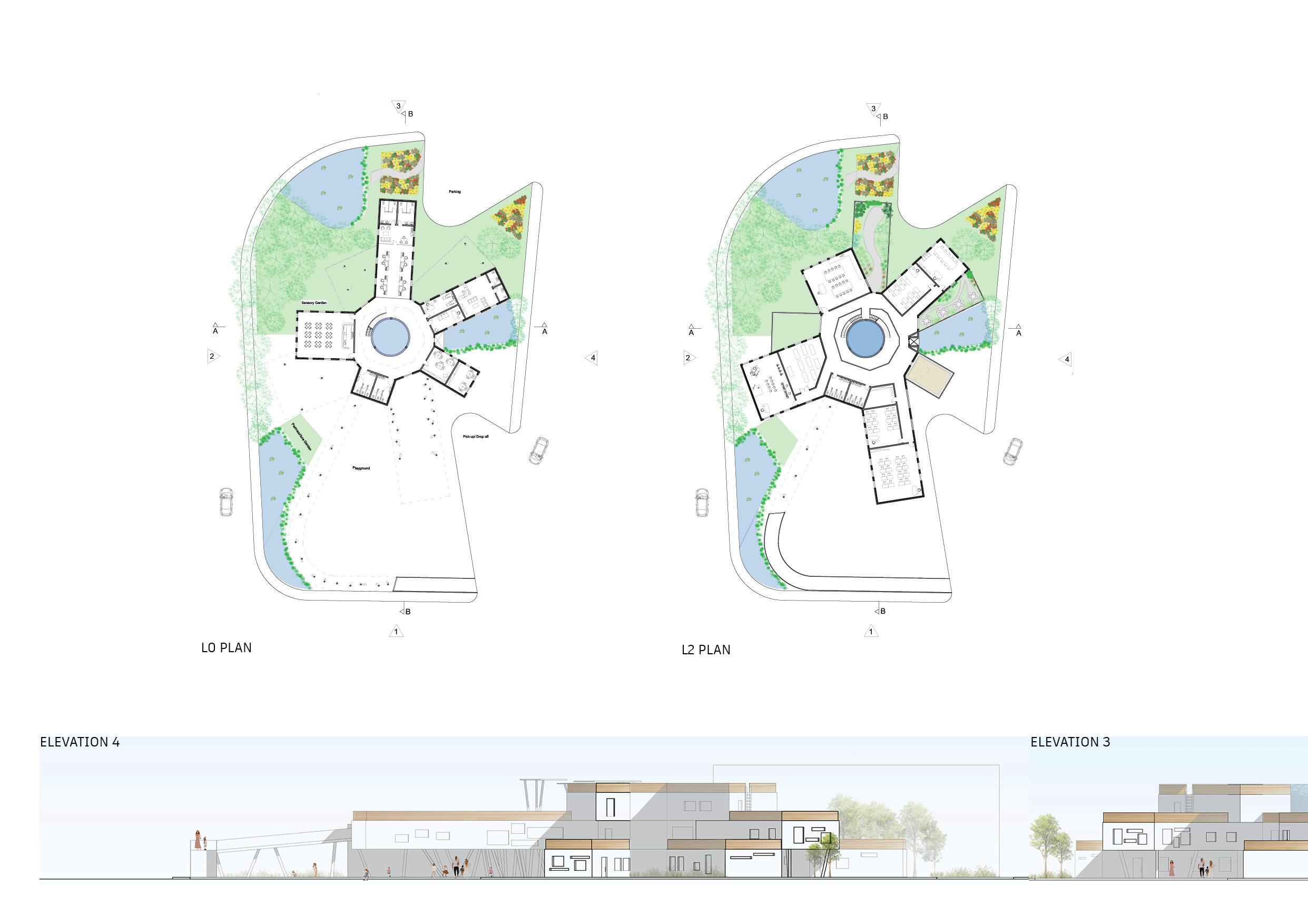

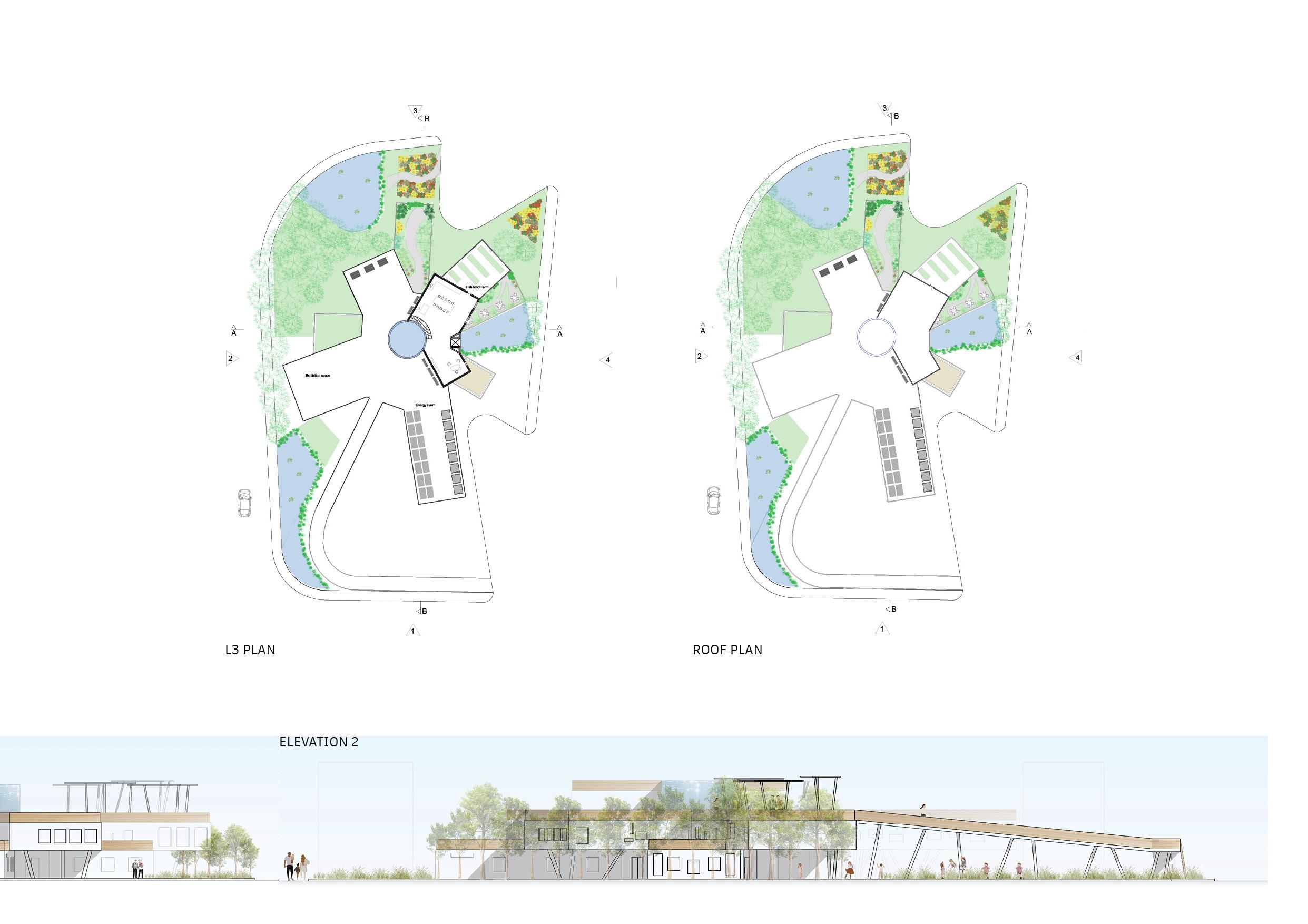

Massing & Concept Fu nctions

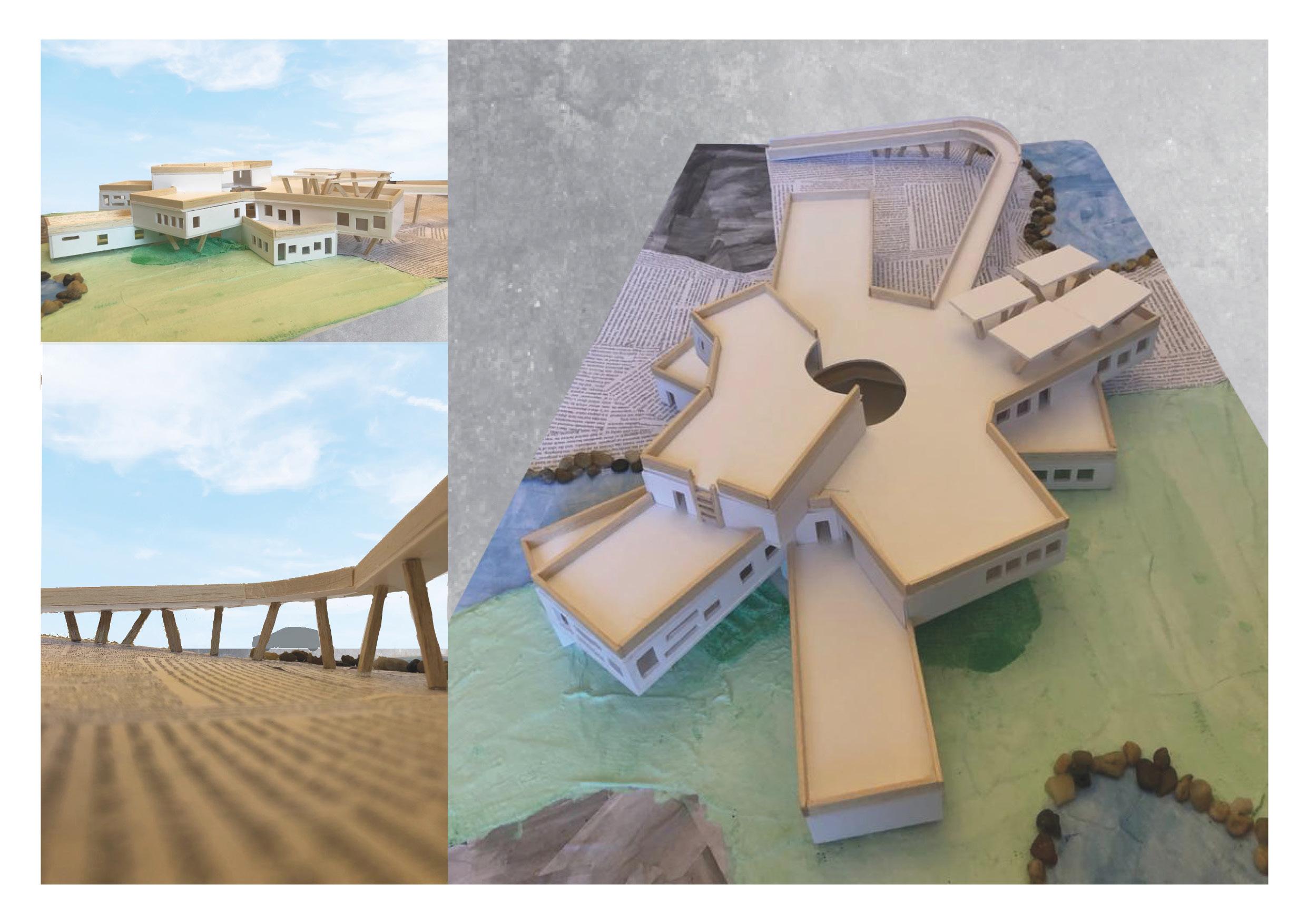

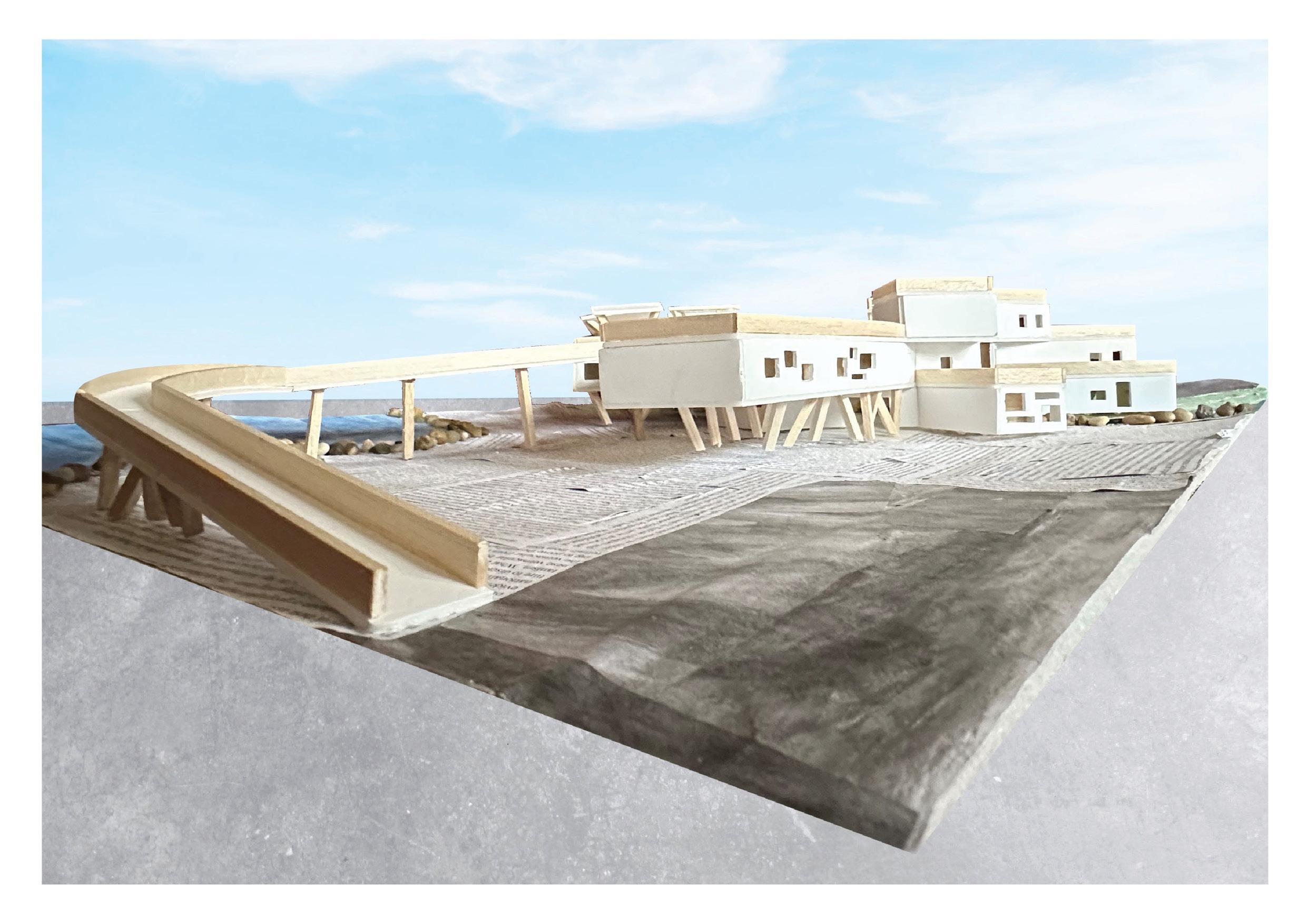

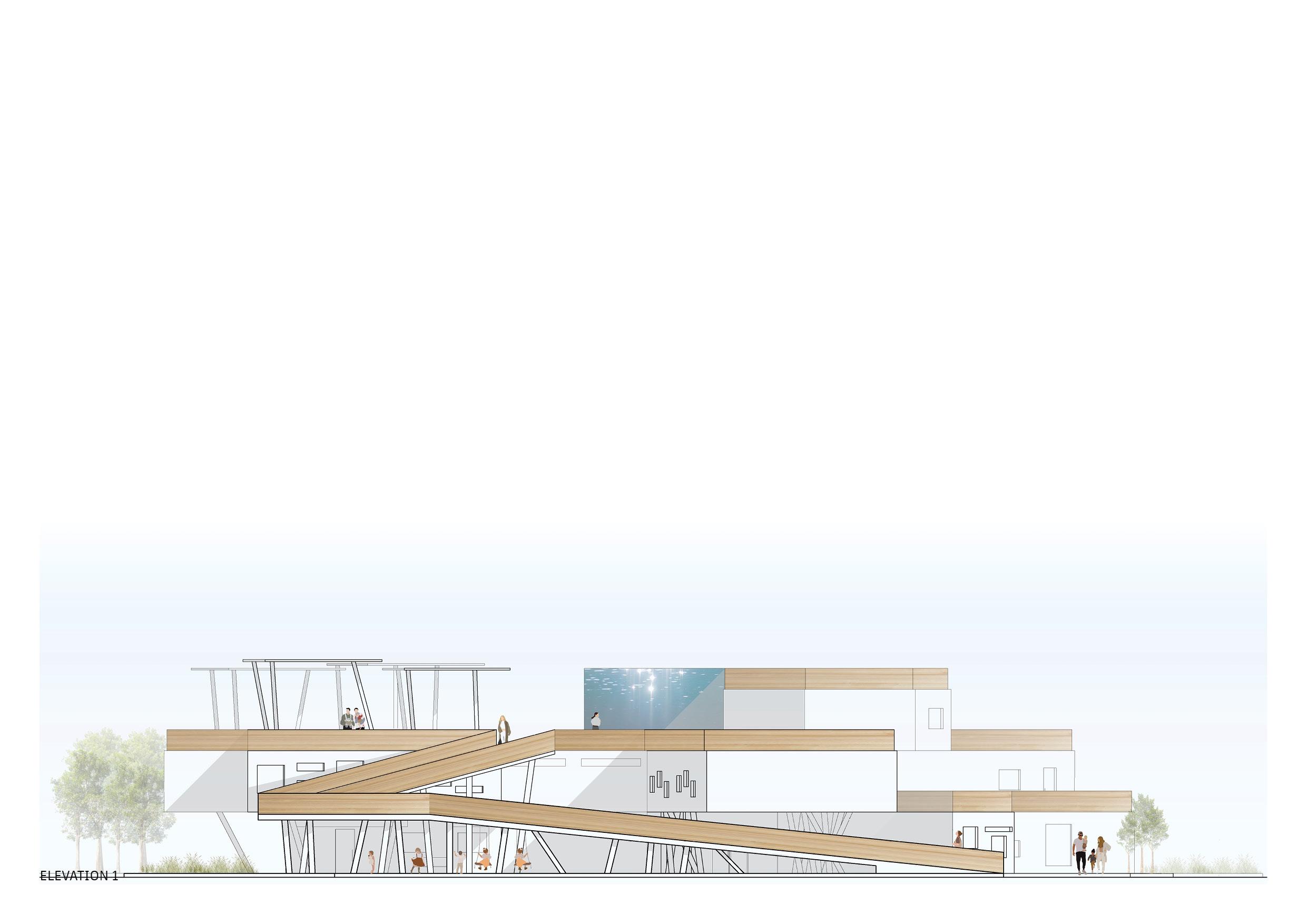

Volumetric overlapping of the building’s floors self shade and create a safe space for students on the playground. The use of shadows creates a subconscious guide to circulation and grounding.

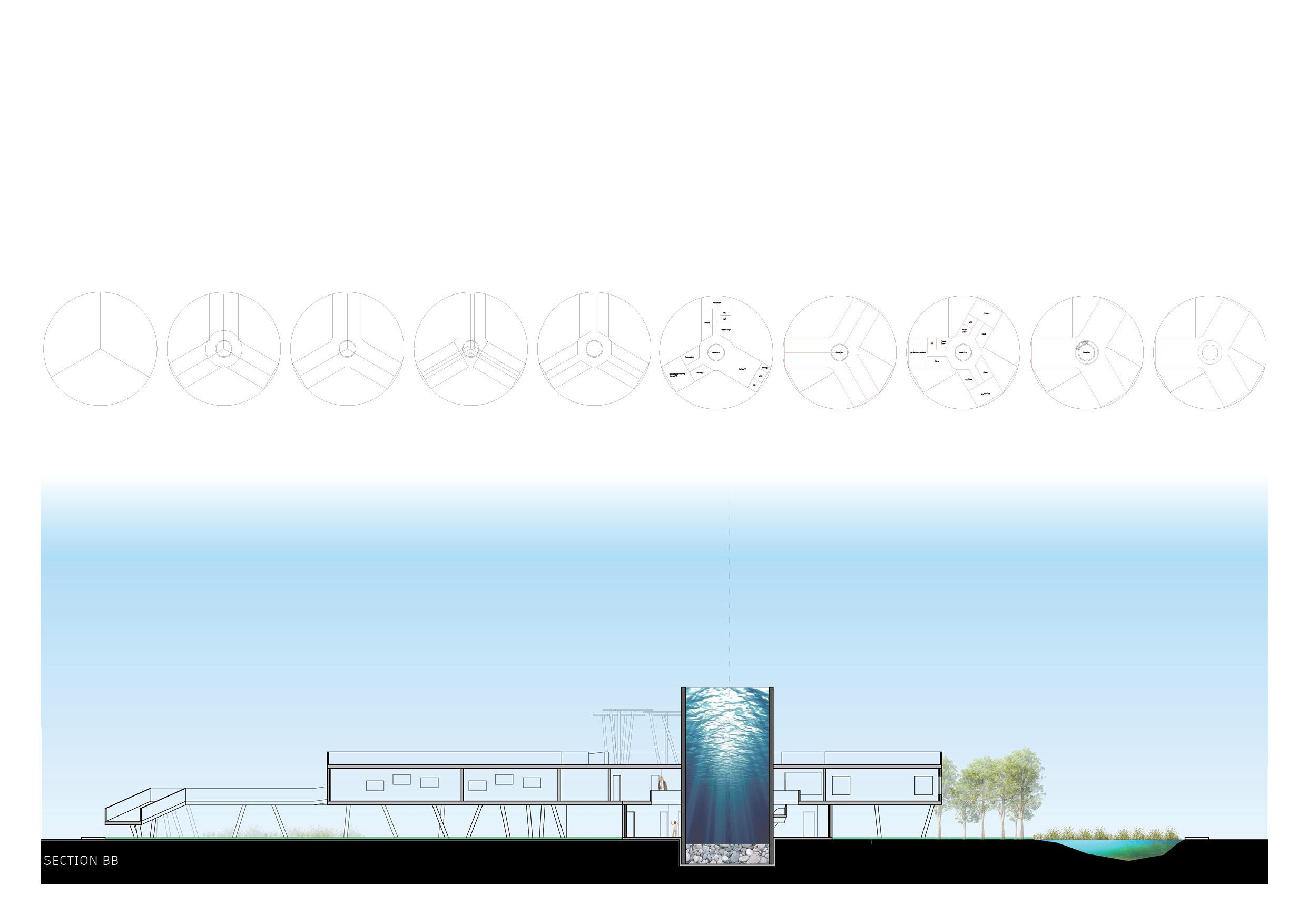

Open Central Aquarium:

- Acts as a skylight with UVA and UVB filtration through water

-Educates and connects children with marine life

-Collects rainwater which the fish clean

-Optimizes oxygen for fish

Outdoor Ponds:

-Light reflection induces therapeutic emotions

-Breeds sweetwater species, raising awareness of Beirut River

-Reminder of the vitality of bluescapes

-Element of safety and security by blocking intruders from campus peripheries

/Karantina Kare Space

/Karantina Kare Space

Architectural Environmental Awareness

Natural grass watered with treated toilet water and/or rainwater

Central aquarium creating an emotional bond between children and marine life: awareness and reform

Columns carrying ramp act as elements of safety and play

Ponds surrounding the site, contributing to the element of water

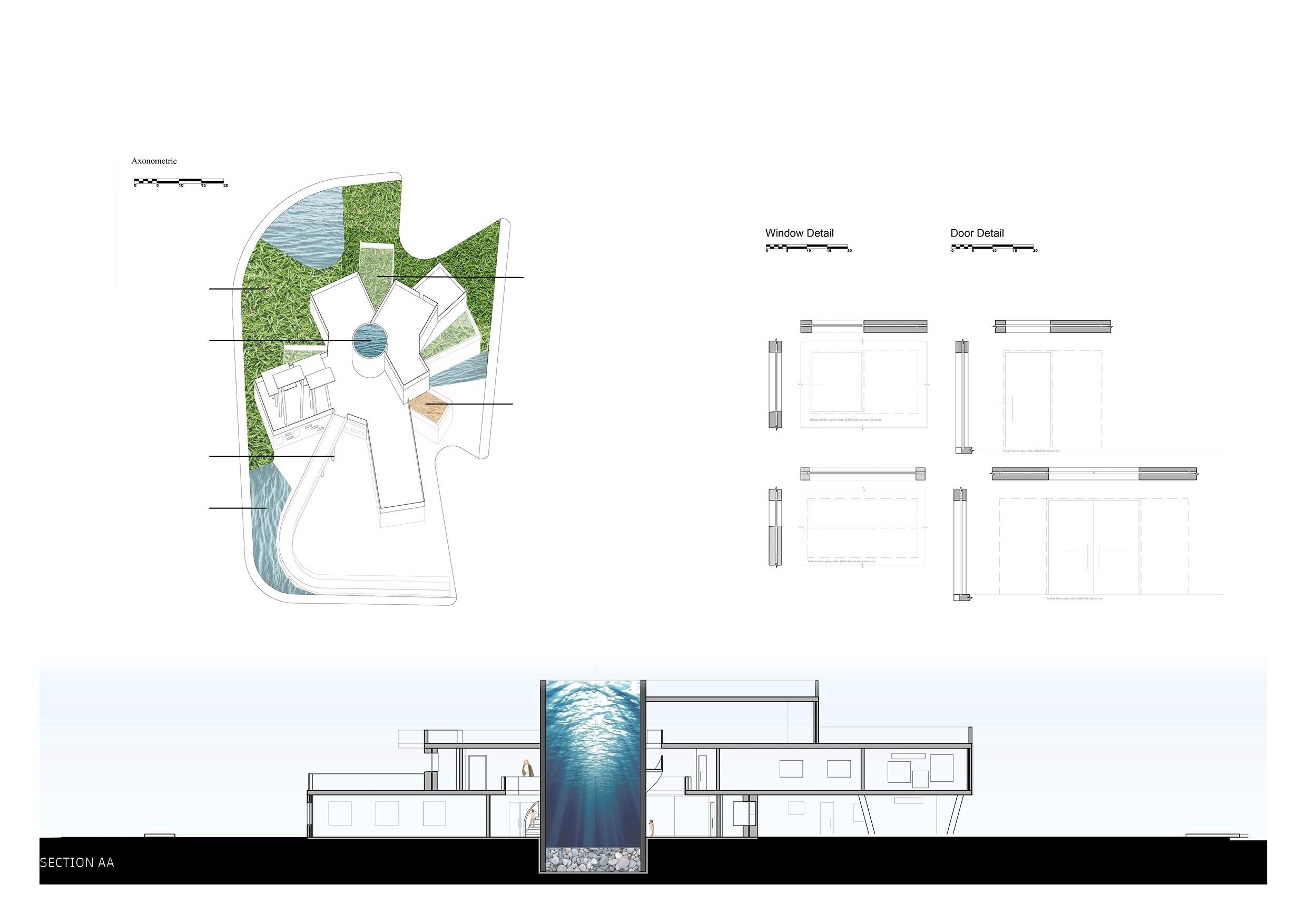

Architectural Trauma Relief: Frameless windows and doors

After the explosion, Karantina’s streets were covered with broken glass and destroyed window frames. The falling frames led to many deaths and injuries. Hiding the frames within wall cavities contribute to the relief from spatial trauma.

Terrace gardens contribute to the essence of the space and its education methods. Normalizing the presence of gardens beyond the ground level, motivating sustainable urbanization

Sand box replica contributing to raising awareness on coastal environmentalism

to Rooftops

2021/ Public Project Gemmayze, Beirut

This public project accommodates residents whose neighborhood happens to fall on a long set of stairs in Gemmayzeh. This project addresses the accessibility difficulties the elder residents face. More importantly, the pocketted site regains its exposure to the main street, thus revitalizing businesses and opening the opportunity to decentralize from outside Vendome

/Rising to Rooftops

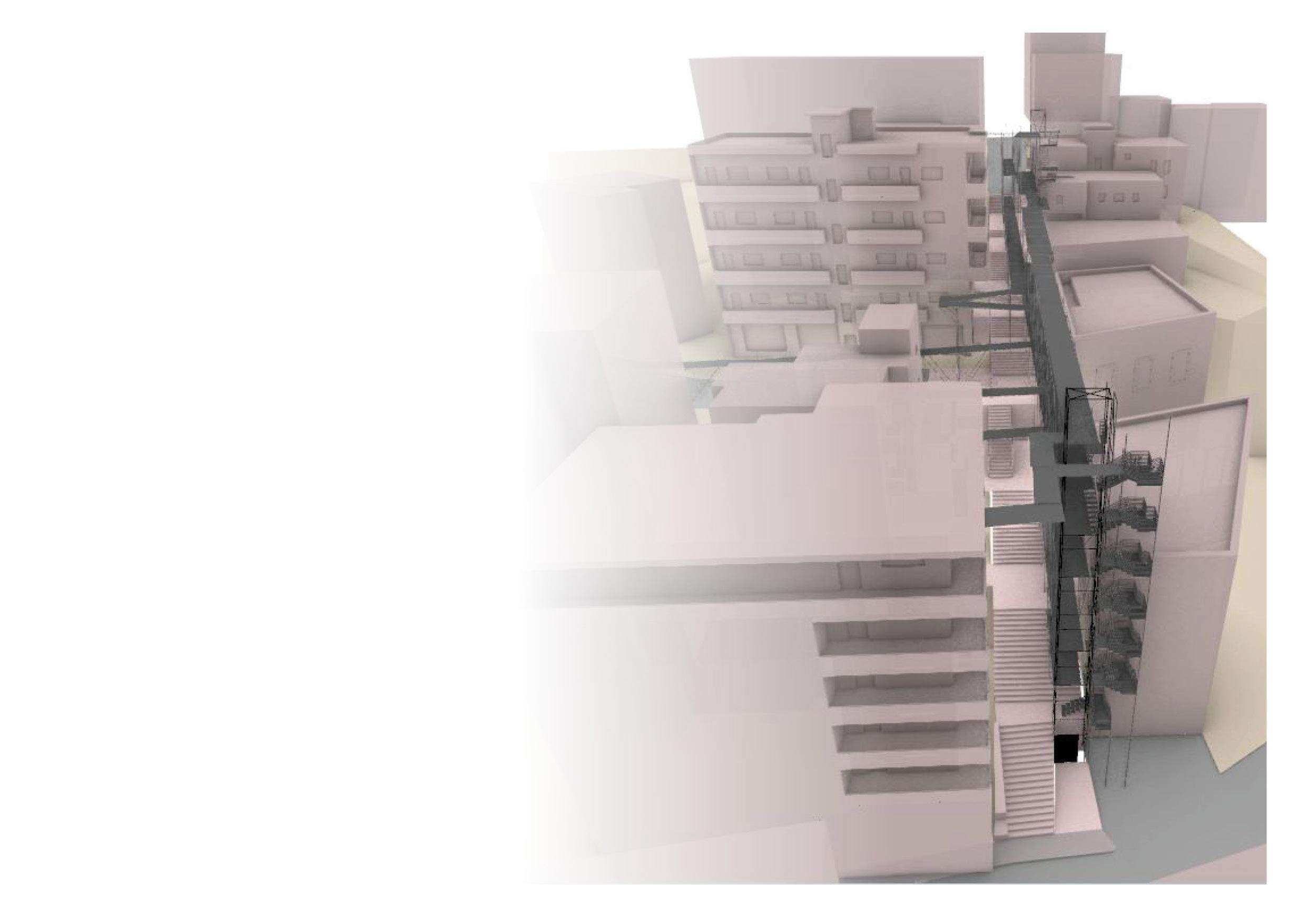

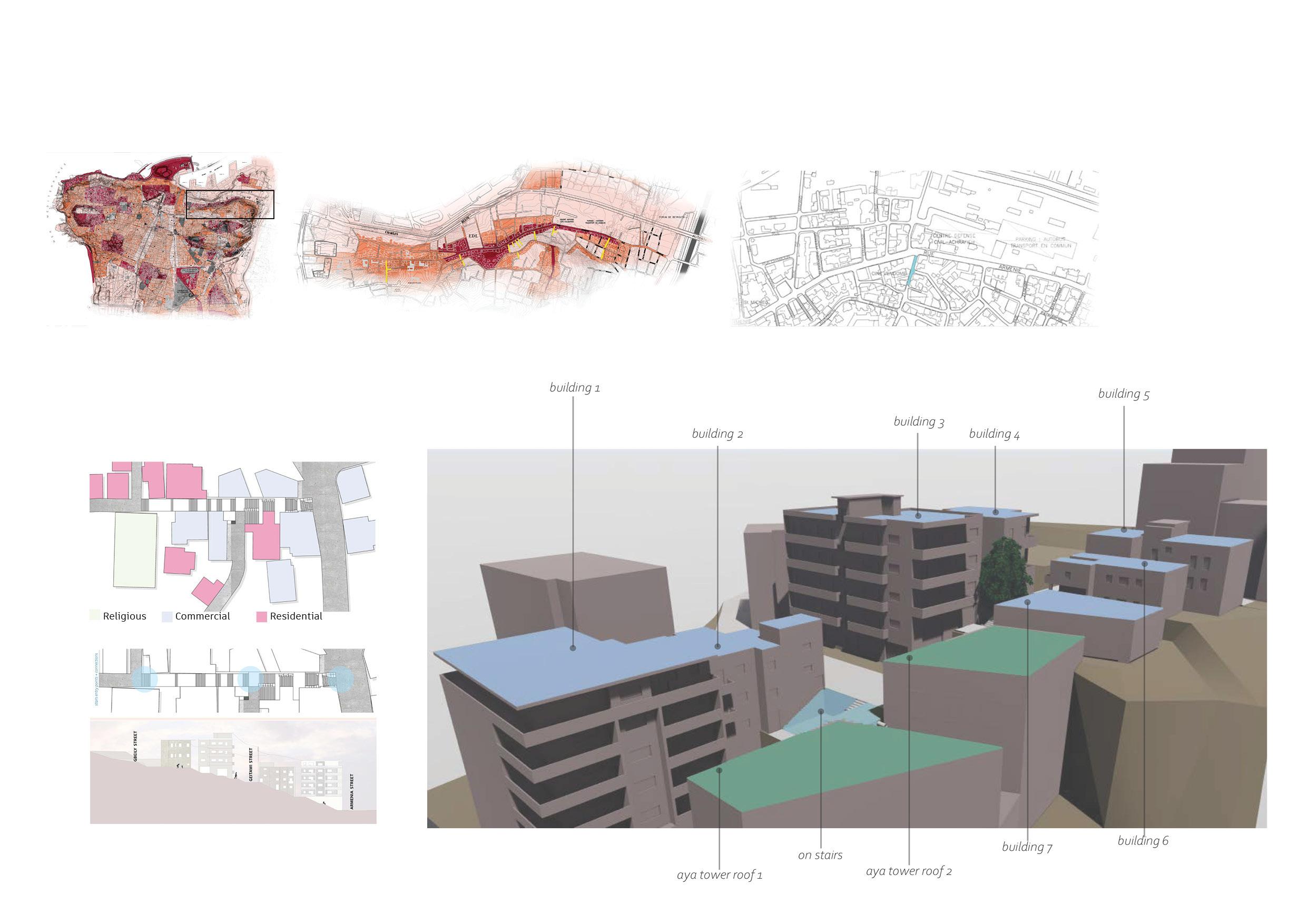

Building functions on Vendome

Access Points and Street Connections

Rooftops of Buildings on Vendome

Map of Beirut Map of Gemmayze

Vendome Stairs in Gemmayze

Concept

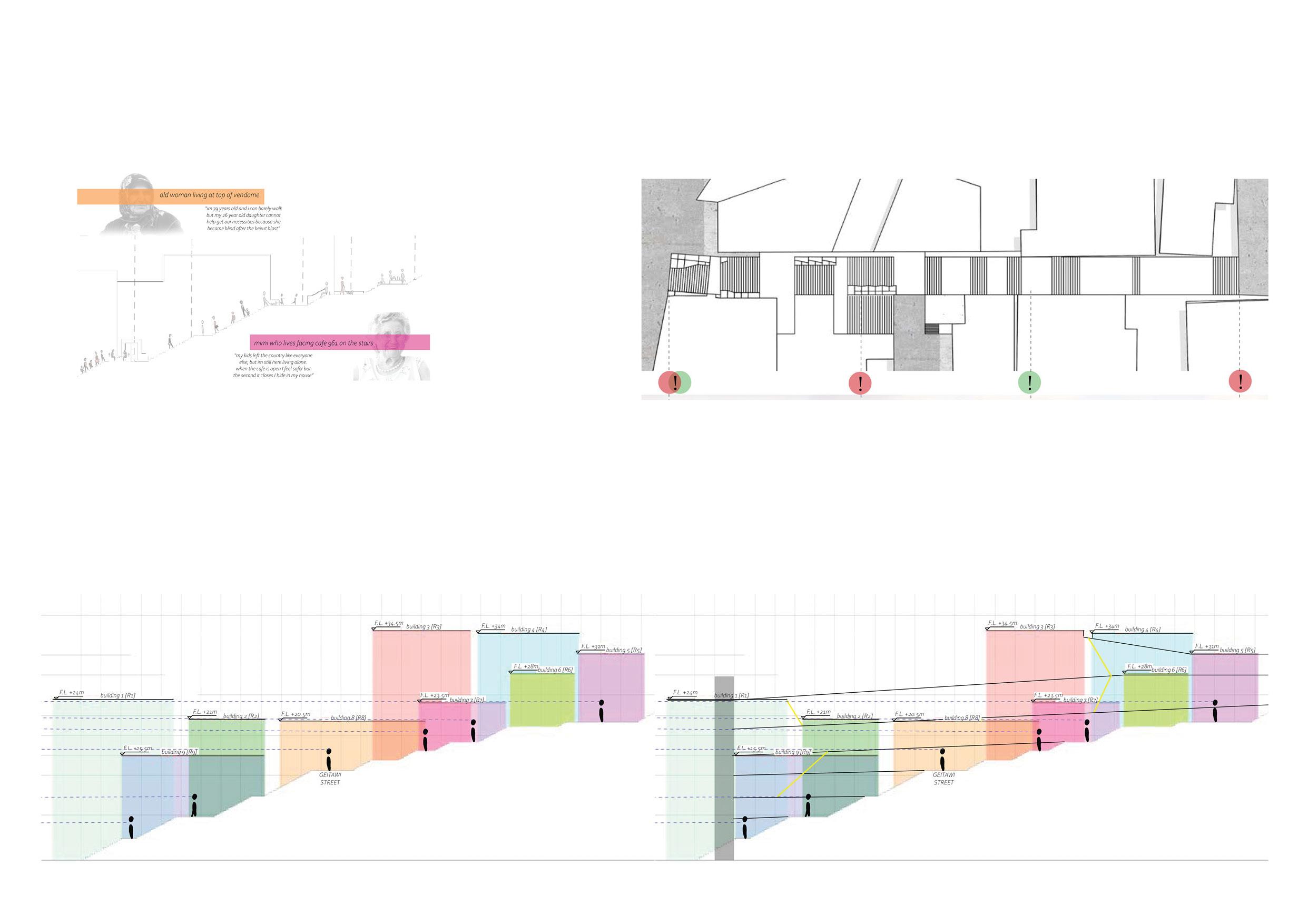

Personal Accounts of Residents Problems of Vendome on Urban and Residential Scales

Safest spot on the stairs is on Armenia St.; however, literring and abusing the space is a common theme

Very difficult to bring groceries up. Additional fees are charged on delivery service

Cafe 961 is welcoming with lights; however after hours the space is abused

Very Dark during the night: its unsafe and unwelcoming

The establishment of a 3x3m grid was crucial in understanding the space. It allowed for the definition of a language between the stairs’ landings, the buildings’ rooftops, and the field of the vision of pedestrains on each landing. The intervention aims at uninterrupting pedestrains’ and residents’ views. Moreover, residents would benefit from the accessibility features of the intervention. The staircase would morph into a more lively area, and given the current economic situation of Lebanon, the residents would have the opportunity to put their rooftops to better, financially-generating uses. This allows the introduction of sub-urban cultivation in the city of Gemmayze.

/Rising to Rooftops

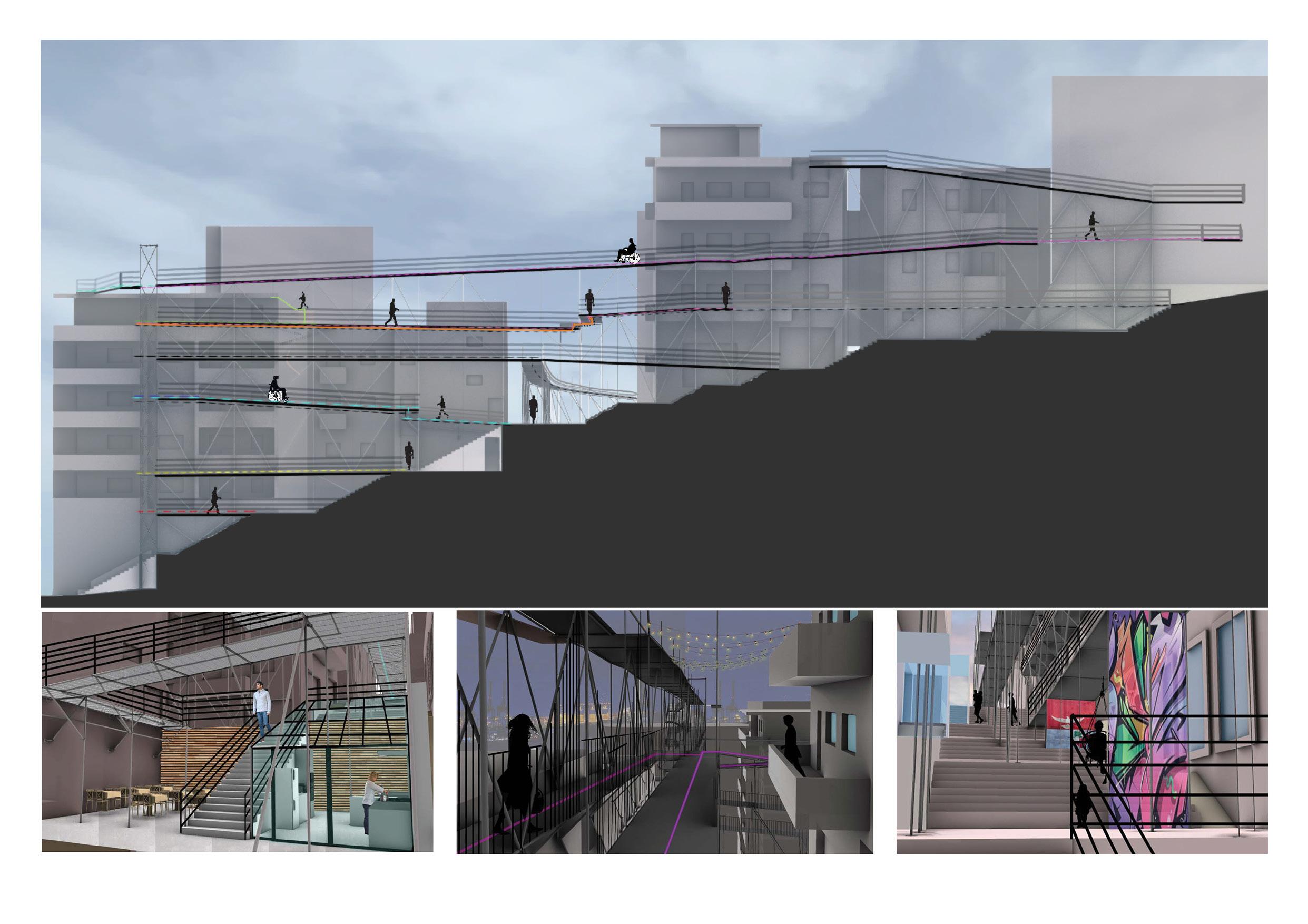

Interventions on Stairs

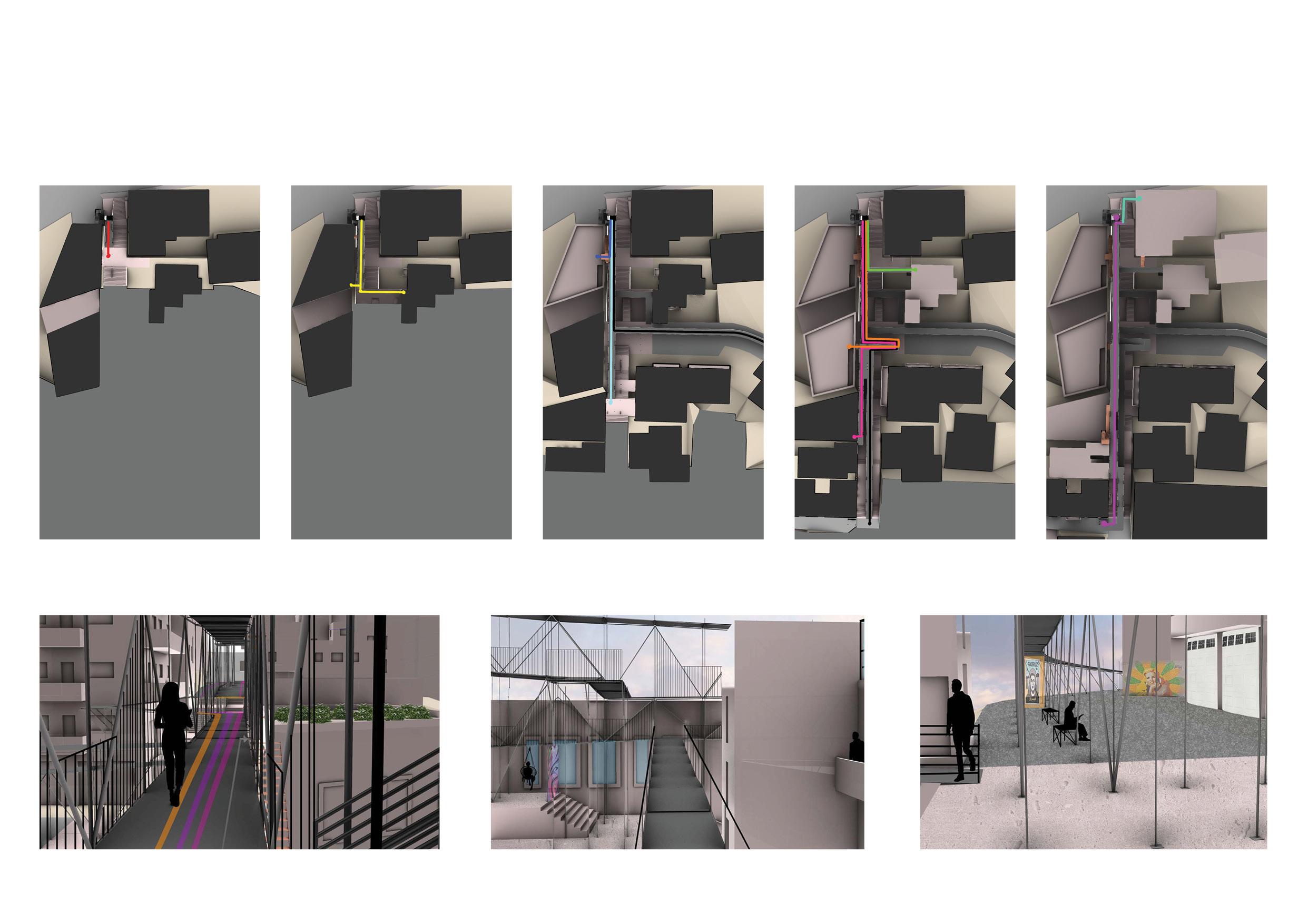

Paths from the 1st core on the bottom of the stairs

1st level reaches Cafe Vendome, Residential building 2, and Aya Tower 1

2nd level reaches People’s Kitchen, Residential building 3, and Aya Tower 2

3rd level reaches Station 4, Geitawi Street, and Aya Tower 1 Rooftop Garden. 4th level reaches Geitawi Street

5th level reaches Residential building 2’s rooftop restaurant farm, Aya tower 2 rooftop garden, mimi’s rooftop market, and Gbeily Street

6th level reaches Building 1’s rooftop bar and 2nd Core at the top of the stairs.

Pathways on structure

Entering structure from Geitawi Street

Geitawi Street

Nighttime view of port from top of structure

People’s Kitchen

Art exhibiting on structure

/Rising to Rooftops

Structure

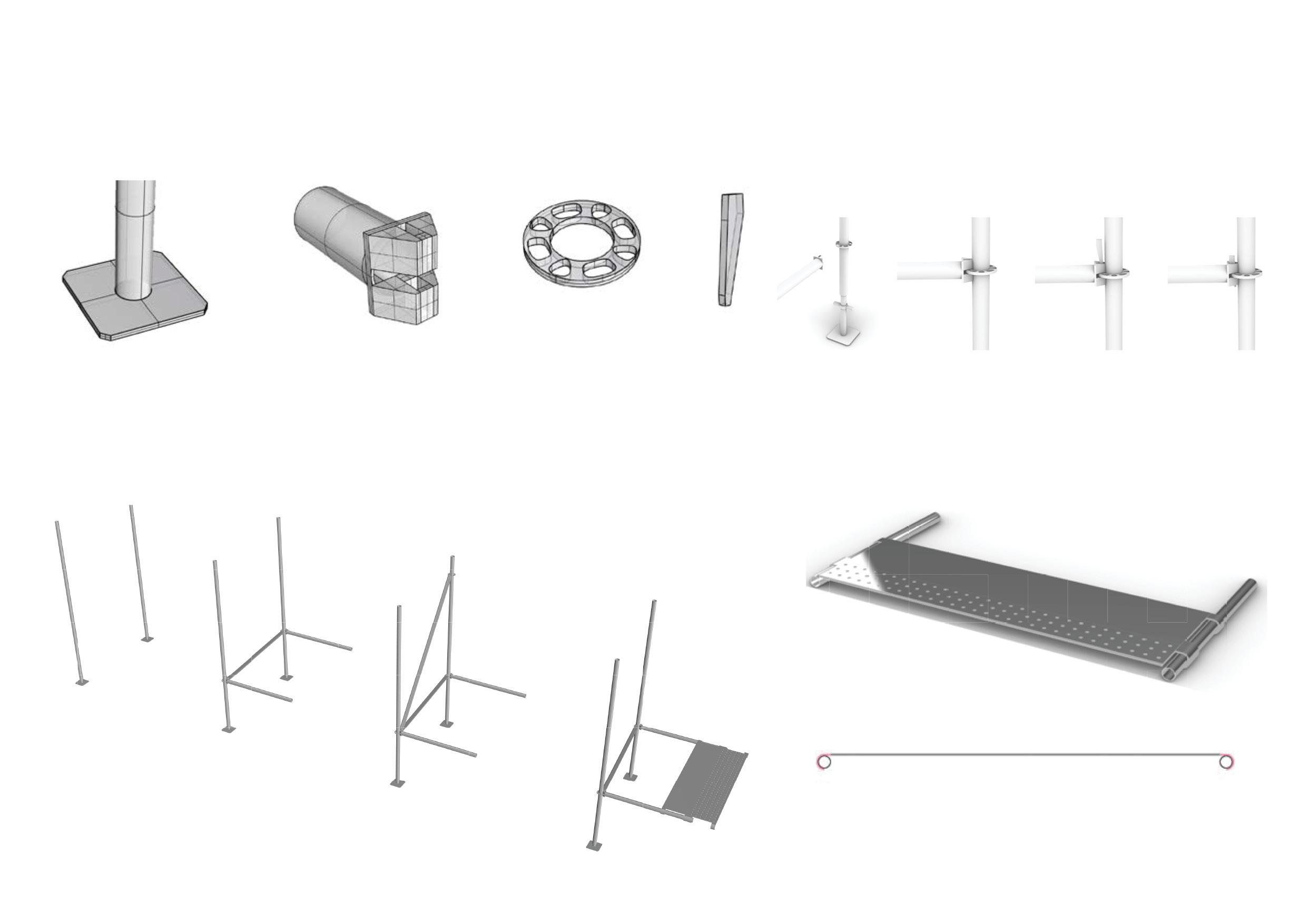

The structure is assembled using recycled scaffolding with a Ringlock Joinery System

Base Scaffolding Joint Ringlock Wedge

Punctered Metal Floor plates slide onto scaffolding beams

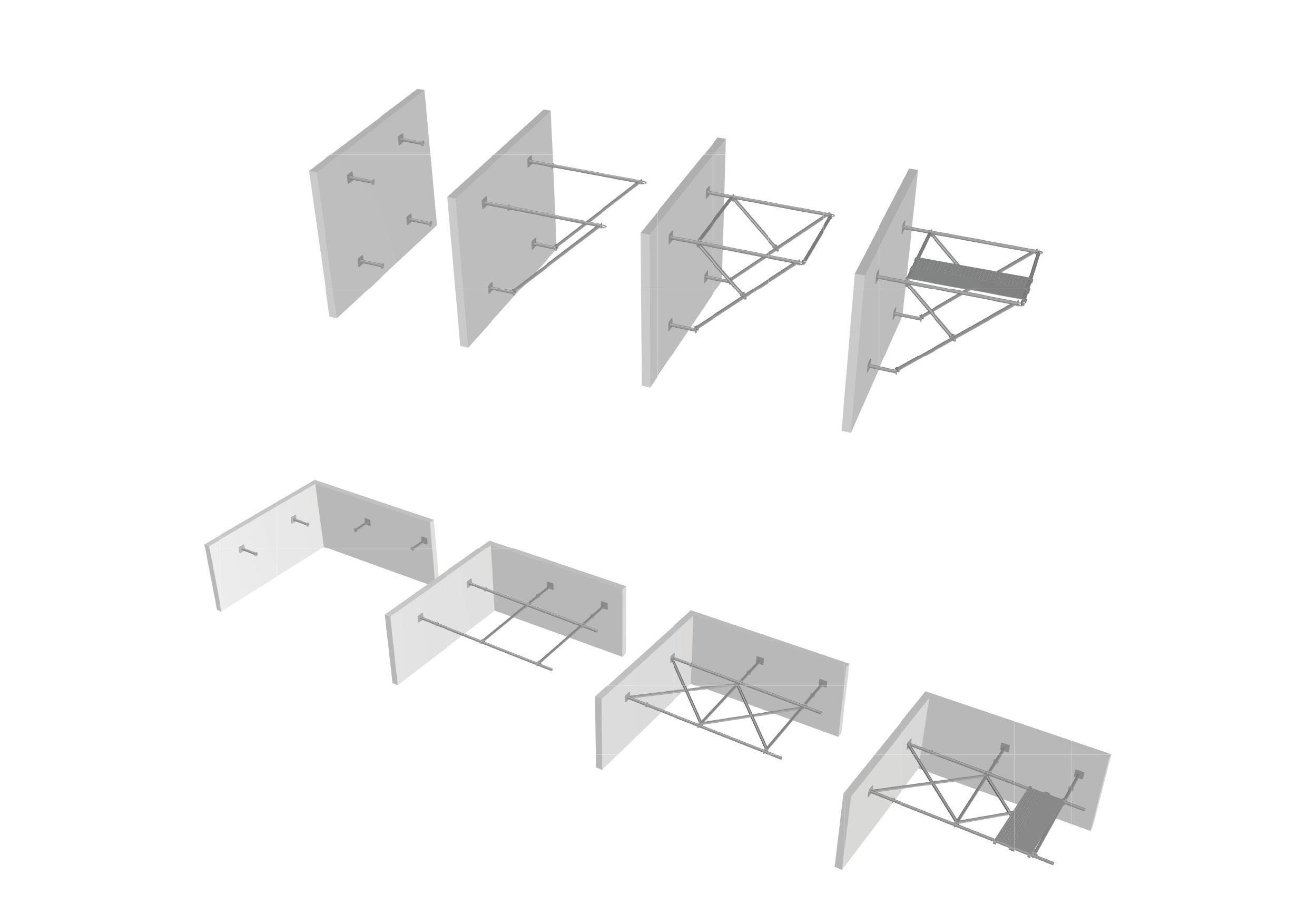

Typical Scaffolding System Assembly

System application on walls

System application on adjacent walls

/Rising to Rooftops

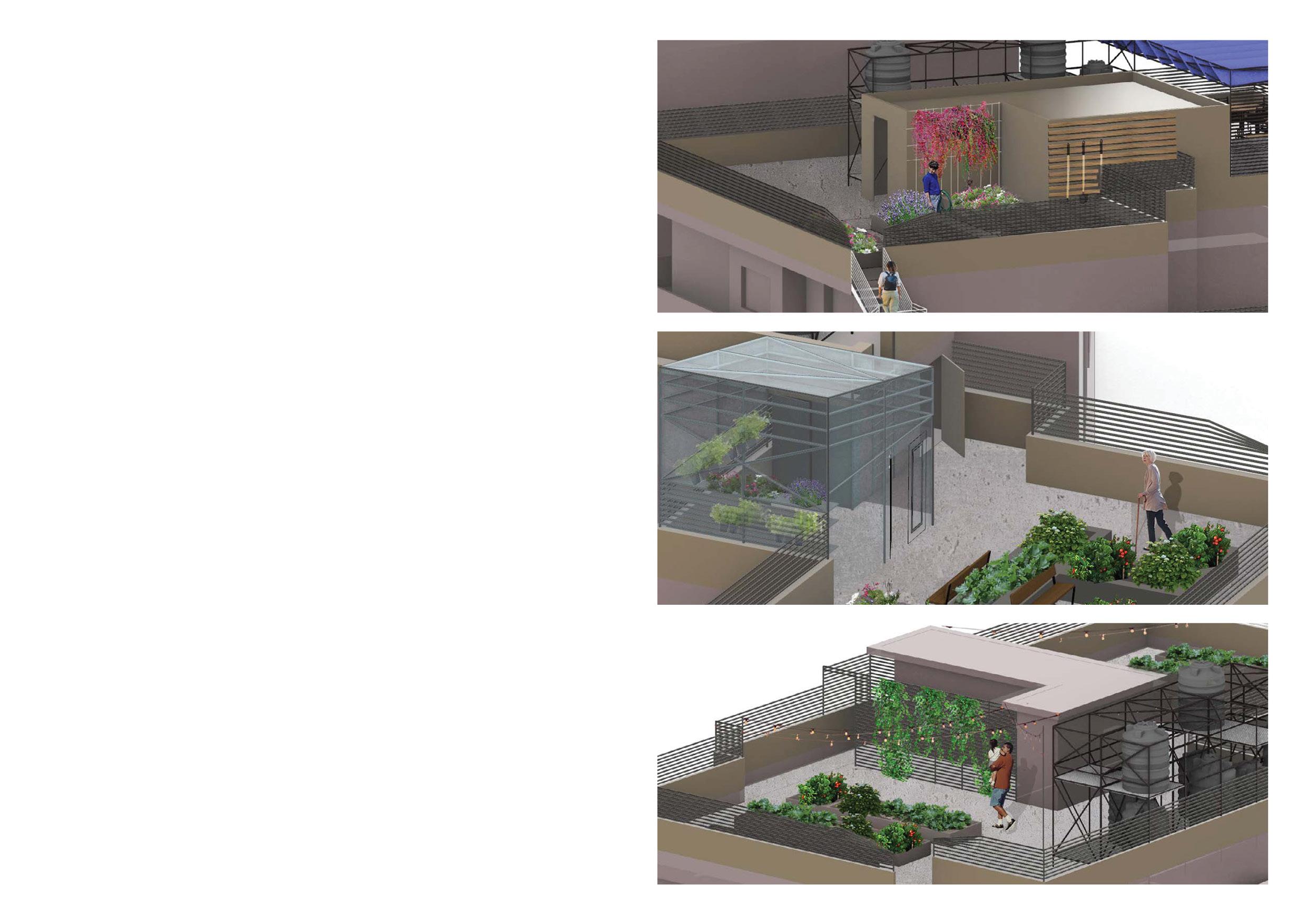

Rooftop Intervention Masterplan

Rooftop Bar

Social Hub

Restaurant Farm

Gardening rooftop for People’s Kitchen

House of Cultivation

Rooftop designed for each apartment to have 2 troughs for cultivation

Gardening Playground

Rooftop designed for children teaching them cultivation

Top of Stairs: Gbeily Street

Green spaces

Water Tanks organized

Mimi’s Market

Social Hub and income generator

Sky Park Social Hub

Flowers and Bees

Social hub and income generator

Bottom of Stairs: Armenia Street

Building 1: Rooftop Bar with Cultivation

Building 2: Greenhouse Rooftop

Building 3: House of Cultivation

/Technical Drawings

Surveying Existing Building/ 2020

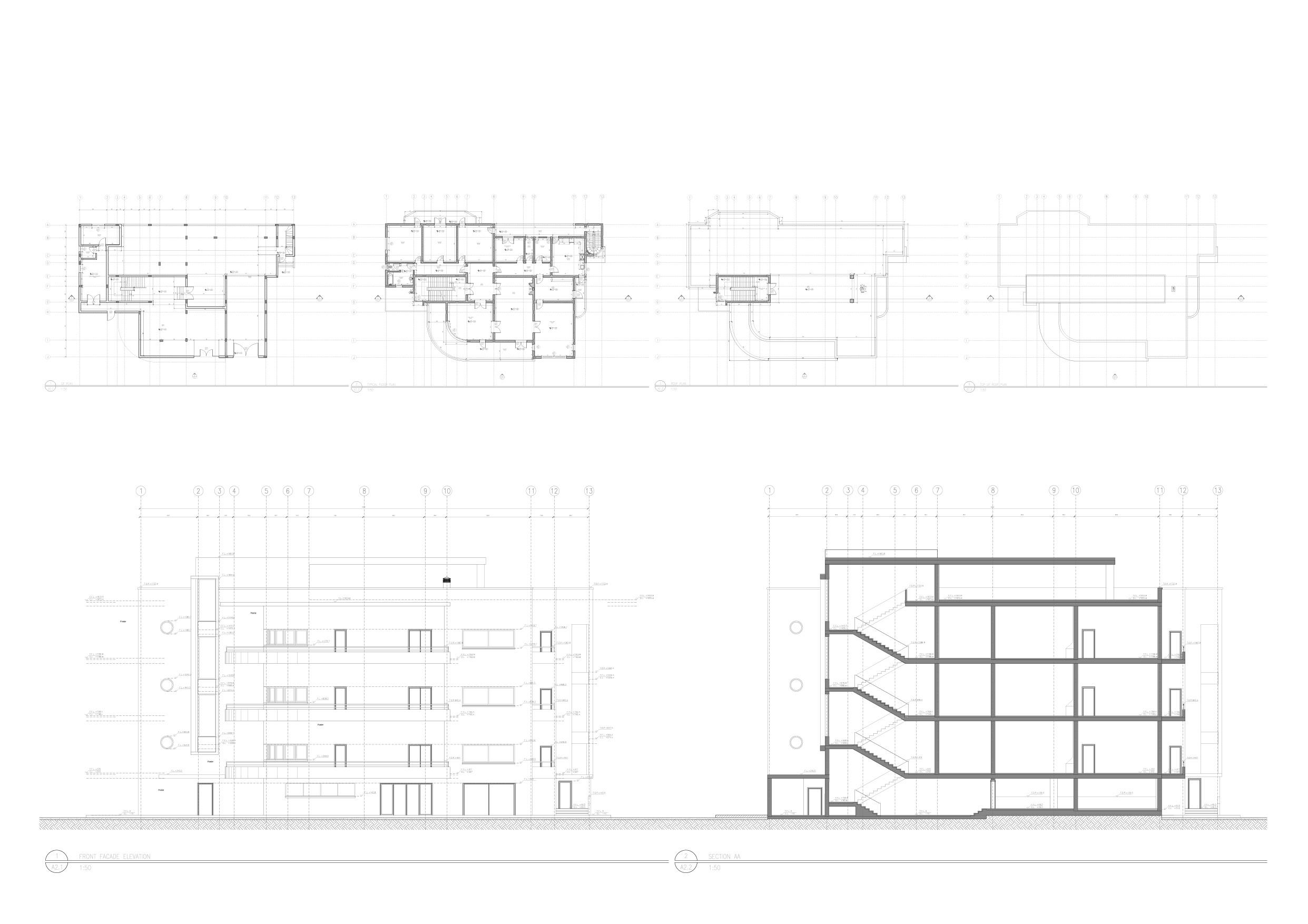

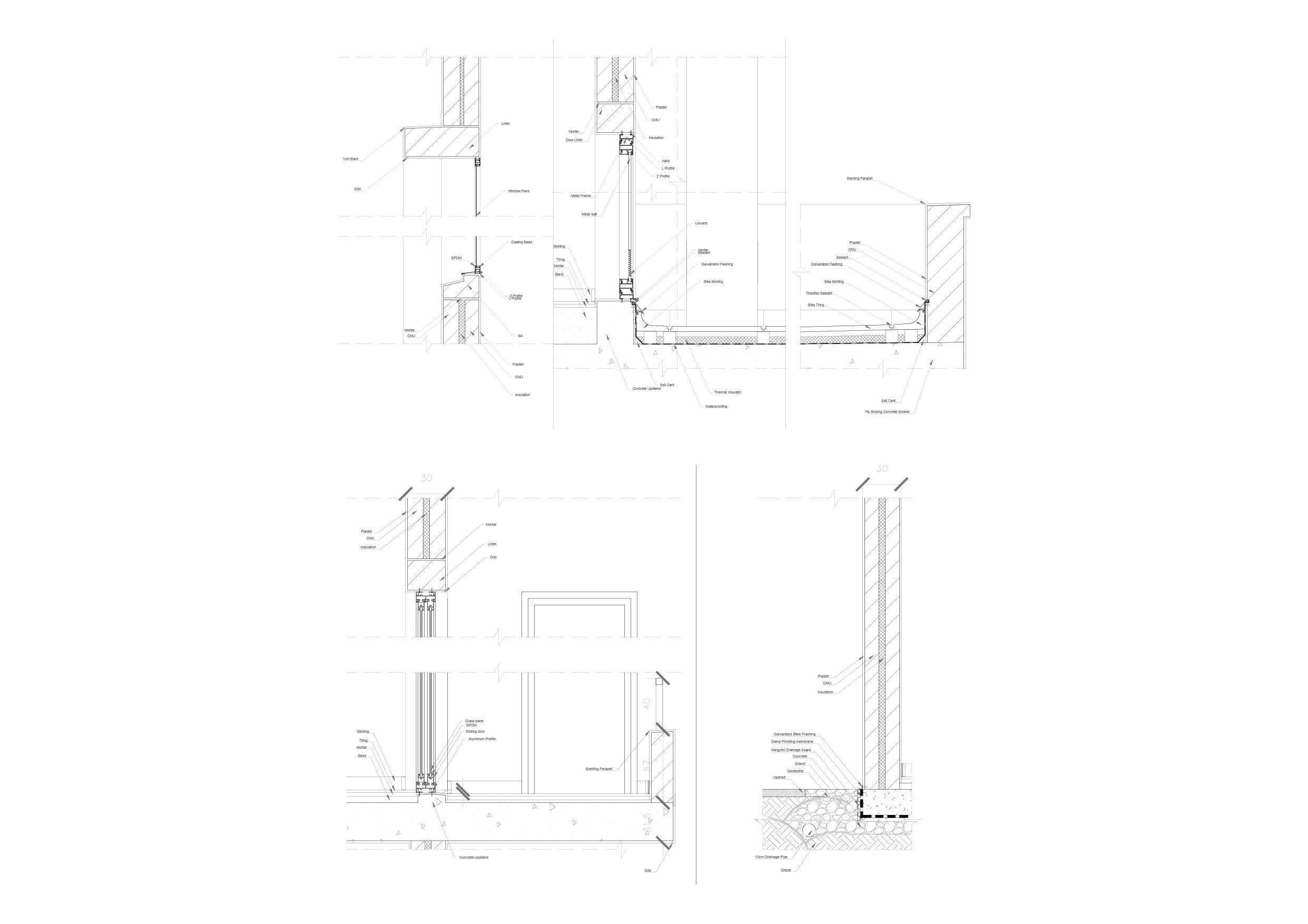

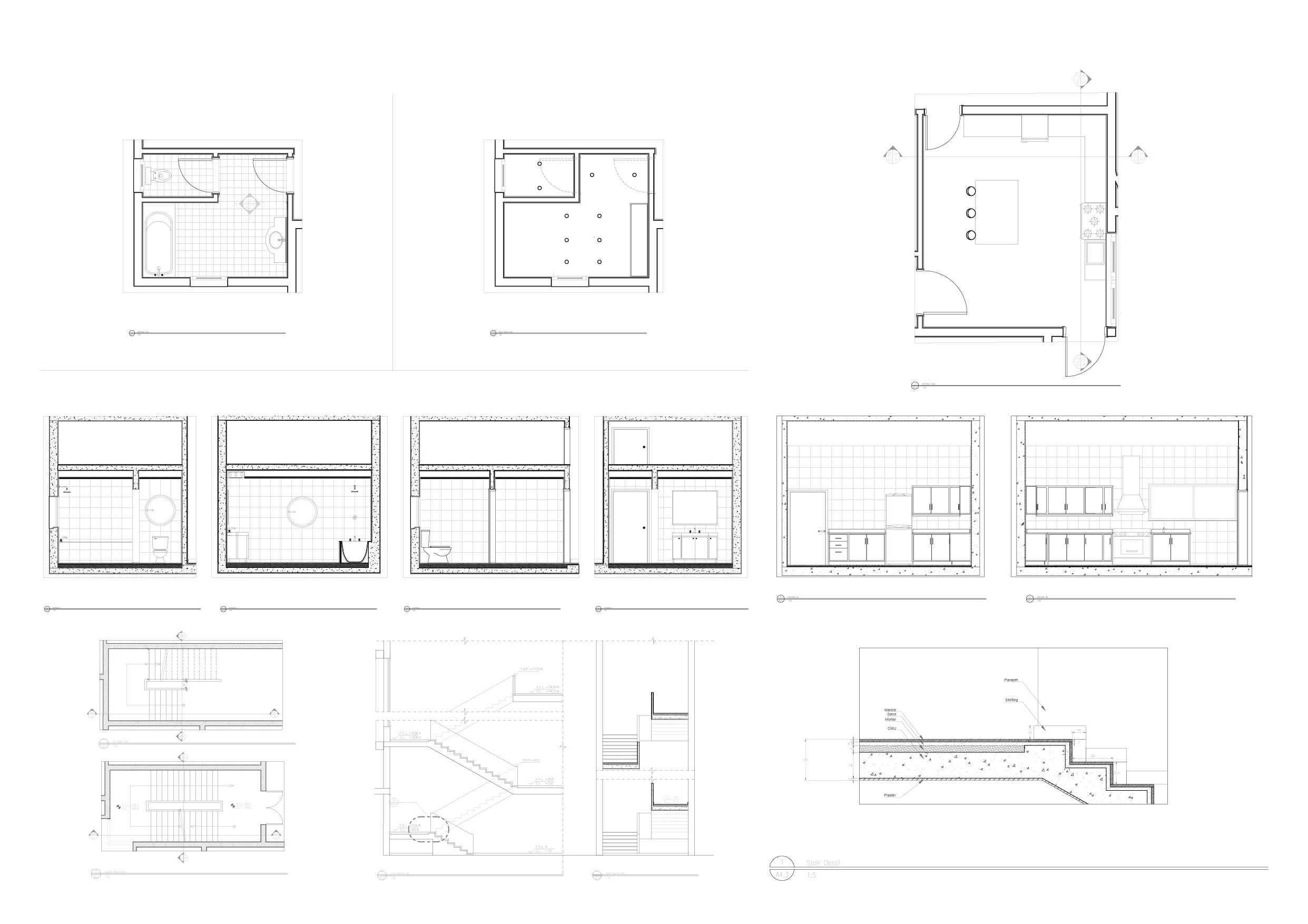

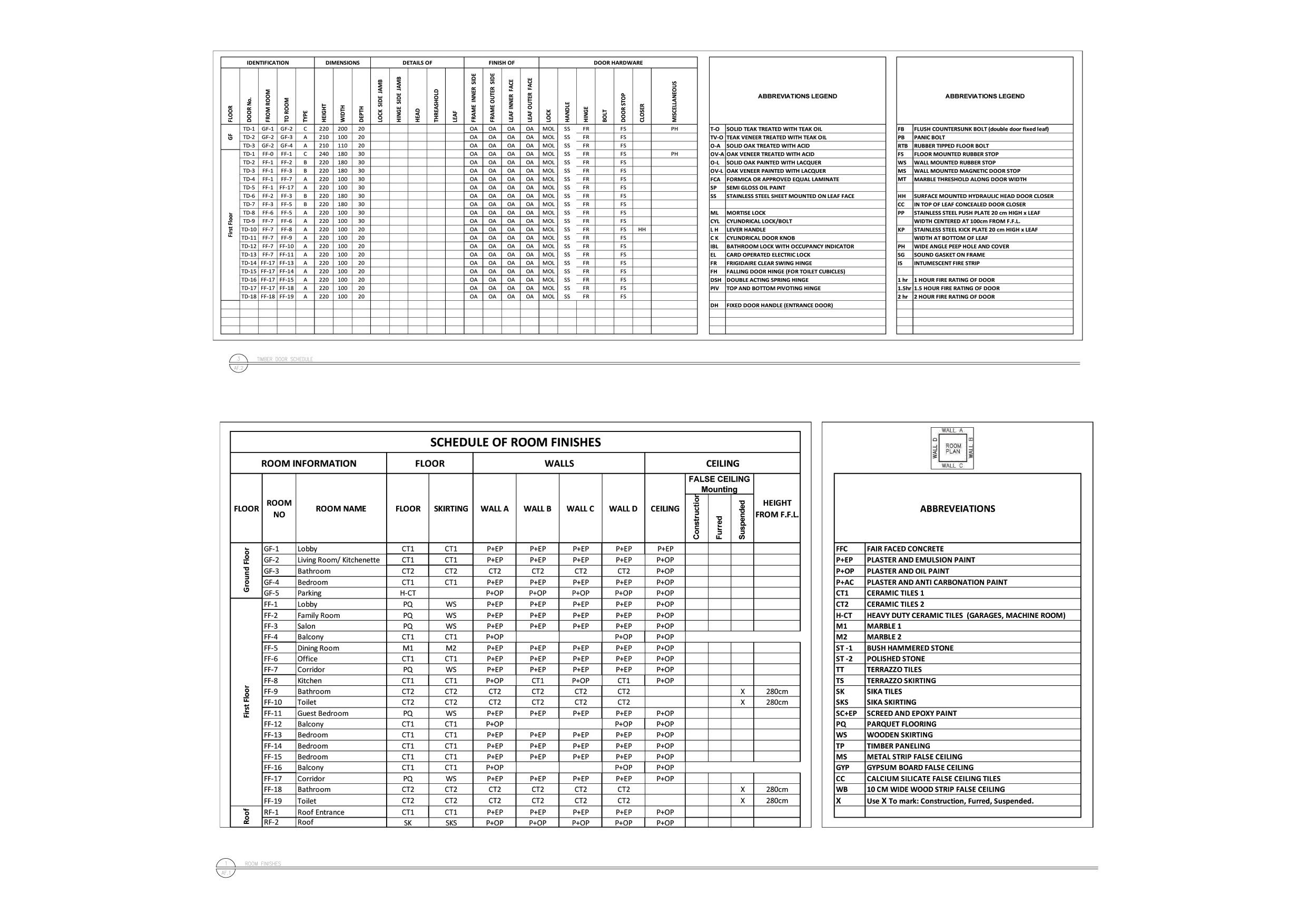

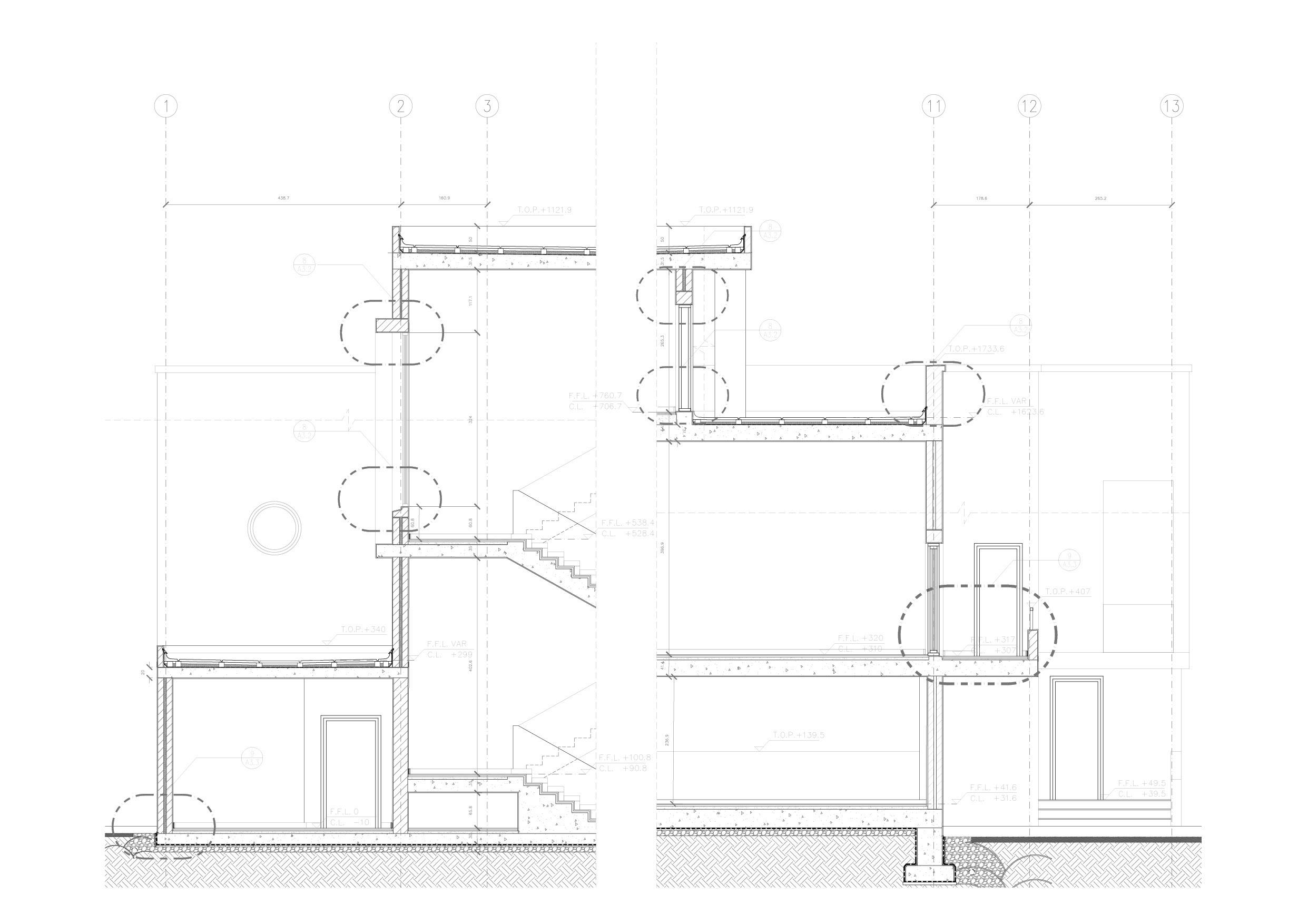

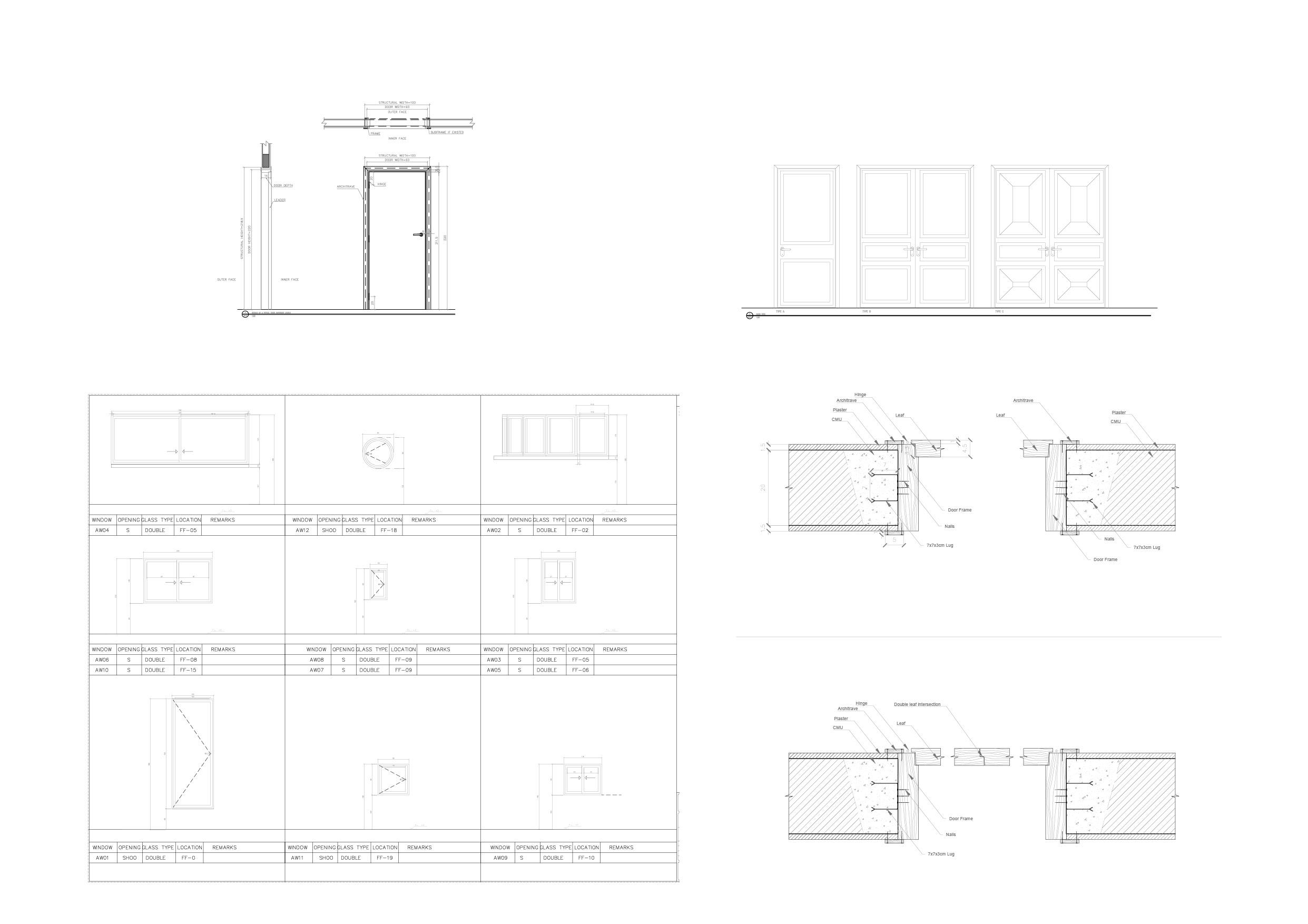

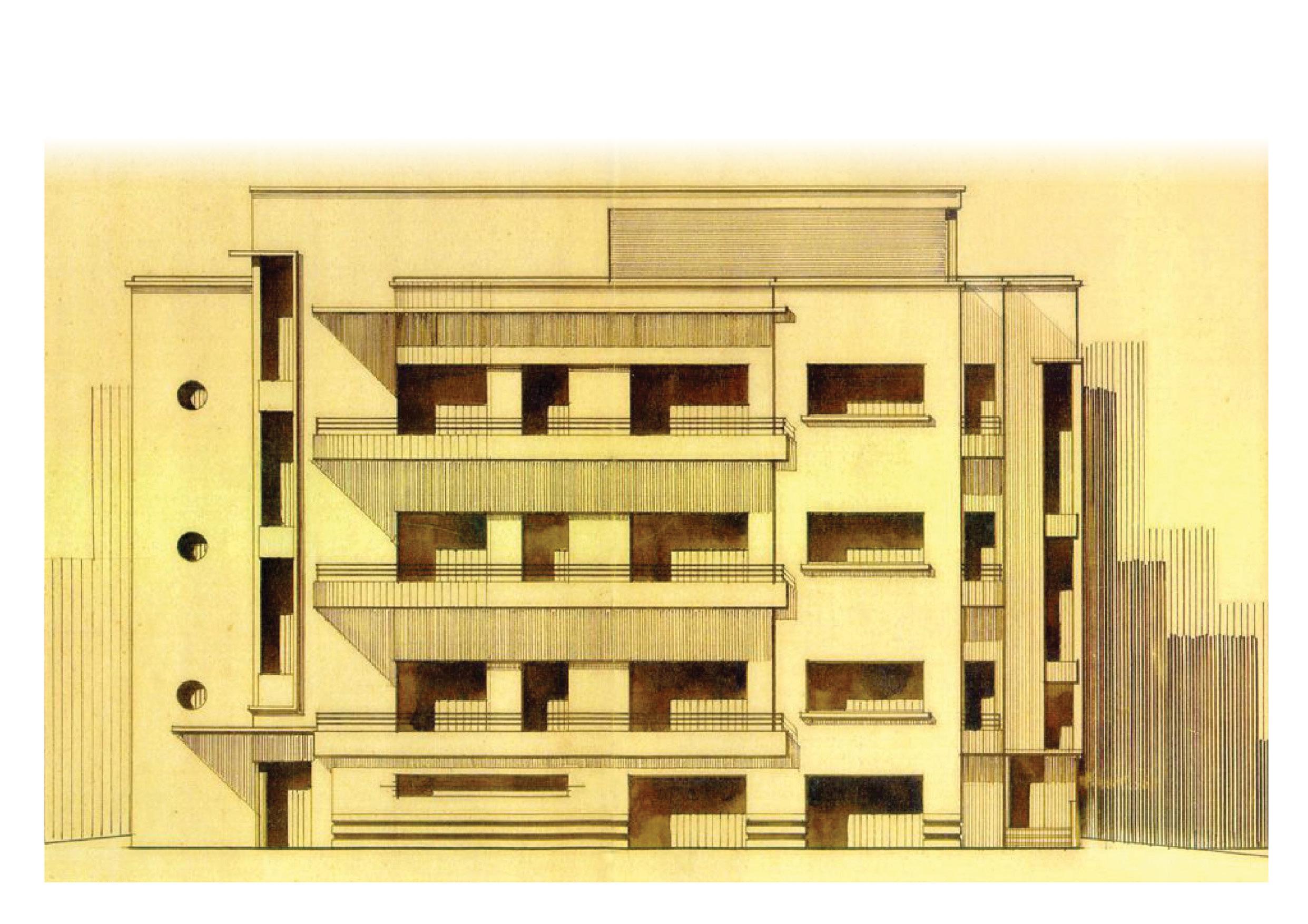

In this course, building construction ii, I revived a demolished building from its worn-out plans and elevation. The course taught essentials of detail drawings, outlining, labelling, and scheduling.

/Technical Drawings

/Technical Drawings
