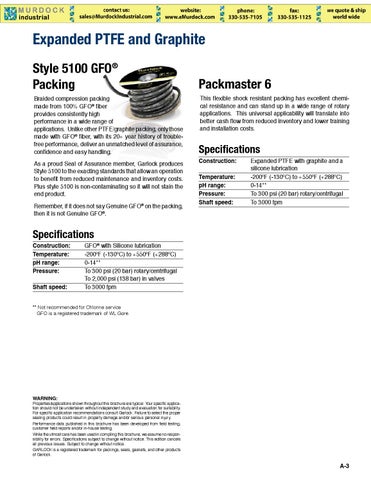

Expanded PTFE and Graphite Style 5100 GFO® Packing Braided compression packing made from 100% GFO® fiber provides consistently high performance in a wide range of applications. Unlike other PTFE/graphite packing, only those made with GFO® fiber, with its 20+ year history of troublefree performance, deliver an unmatched level of assurance, confidence and easy handling. As a proud Seal of Assurance member, Garlock produces Style 5100 to the exacting standards that allow an operation to benefit from reduced maintenance and inventory costs. Plus style 5100 is non-contaminating so it will not stain the end product. Remember, if it does not say Genuine GFO® on the packing, then it is not Genuine GFO®.
Packmaster 6 This flexible shock resistant packing has excellent chemical resistance and can stand up in a wide range of rotary applications. This universal applicability will translate into better cash flow from reduced inventory and lower training and installation costs.
Specifications Construction: Temperature: pH range: Pressure: Shaft speed:
Expanded PTFE with graphite and a silicone lubrication -200ºF (-130ºC) to +550ºF (+288ºC) 0-14** To 300 psi (20 bar) rotary/centrifugal To 3000 fpm
Specifications Construction: Temperature: pH range: Pressure: Shaft speed:
GFO® with Silicone lubrication -200ºF (-130ºC) to +550ºF (+288ºC) 0-14** To 300 psi (20 bar) rotary/centrifugal To 2,000 psi (138 bar) in valves To 3000 fpm
** Not recommended for Chlorine service GFO is a registered trademark of WL Gore.
WARNING:
Properties/applications shown throughout this brochure are typical. Your specific application should not be undertaken without independent study and evaluation for suitability. For specific application recommendations consult Garlock. Failure to select the proper sealing products could result in property damage and/or serious personal injury. Performance data published in this brochure has been developed from field testing, customer field reports and/or in-house testing.
While the utmost care has been used in compiling this brochure, we assume no responsibility for errors. Specifications subject to change without notice. This edition cancels all previous issues. Subject to change without notice. GARLOCK is a registered trademark for packings, seals, gaskets, and other products of Garlock.
A-3
