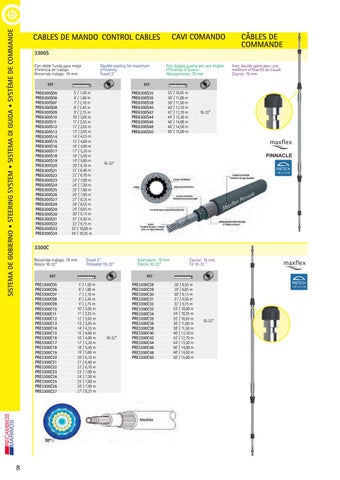

SISTEMA DE GOBIERNO • STEERING SYSTEM • SISTEMA DI GUIDA • SYSTÈME DE COMMANDE
CAVI COMANDO
CABLES DE MANDO CONTROL CABLES
CÂBLES DE COMMANDE
3300S Con doble funda para mejor eficiencia de trabajo Recorrido trabajo: 76 mm.
Double coating for maximum efficiency. Travel 3’’
REF
PRE6300S05 PRE6300S06 PRE6300S07 PRE6300S08 PRE6300S09 PRE6300S10 PRE6300S11 PRE6300S12 PRE6300S13 PRE6300S14 PRE6300S15 PRE6300S16 PRE6300S17 PRE6300S18 PRE6300S19 PRE6300S20 PRE6300S21 PRE6300S22 PRE6300S23 PRE6300S24 PRE6300S25 PRE6300S26 PRE6300S27 PRE6300S28 PRE6300S29 PRE6300S30 PRE6300S31 PRE6300S32 PRE6300S33 PRE6300S34
Con doppia guaina per una miglior efficienza di lavoro. Allungamento: 76 mm
REF
5’ / 1,50 m 6’ / 1,80 m 7’ / 2,10 m 8’ / 2,45 m 9’ / 2,75 m 10’ / 3,05 m 11’ / 3,35 m 12’ / 3,65 m 13’ / 3,95 m 14’ / 4,25 m 15’ / 4,60 m 16’ / 4,90 m 17’ / 5,20 m 18’ / 5,50 m 19’ / 5,80 m 20’ / 6,10 m 21’ / 6,40 m 22’ / 6,70 m 23’ / 7,00 m 24’ / 7,30 m 25’ / 7,60 m 26’ / 7,90 m 27’ / 8,25 m 28’ / 8,55 m 29’ / 8,85 m 30’ / 9,15 m 31’ / 9,50 m 32’ / 9,75 m 33’ / 10,00 m 34’ / 10,35 m
PRE6300S35 PRE6300S36 PRE6300S38 PRE6300S40 PRE6300S42 PRE6300S44 PRE6300S46 PRE6300S48 PRE6300S50
35’ / 10,65 m 36’ / 11,00 m 38’ / 11,50 m 40’ / 12,10 m 42’ / 12,70 m 44’ / 13,30 m 46’ / 14,00 m 48’ / 14,50 m 50’ / 15,00 m
10-32”
10-32”
3300C Recorrido trabajo: 76 mm. Rosca 10-32’’
Travel 3’’ Threaded 10-32”
REF
PRE3300C05 PRE3300C06 PRE3300C07 PRE3300C08 PRE3300C09 PRE3300C10 PRE3300C11 PRE3300C12 PRE3300C13 PRE3300C14 PRE3300C15 PRE3300C16 PRE3300C17 PRE3300C18 PRE3300C19 PRE3300C20 PRE3300C21 PRE3300C22 PRE3300C23 PRE3300C24 PRE3300C25 PRE3300C26 PRE3300C27
8
Estensione: 76 mm Filetto 10-32”
Course: 76 mm. Fil 10-32 ’’
REF
5’ / 1,50 m 6’ / 1,80 m 7’ / 2,10 m 8’ / 2,45 m 9’ / 2,75 m 10’ / 3,05 m 11’ / 3,35 m 12’ / 3,65 m 13’ / 3,95 m 14’ / 4,25 m 15’ / 4,60 m 16’ / 4,90 m 17’ / 5,20 m 18’ / 5,50 m 19’ / 5,80 m 20’ / 6,10 m 21’ / 6,40 m 22’ / 6,70 m 23’ / 7,00 m 24’ / 7,30 m 25’ / 7,60 m 26’ / 7,90 m 27’ / 8,25 m
10-32”
PRE3300C28 PRE3300C29 PRE3300C30 PRE3300C31 PRE3300C32 PRE3300C33 PRE3300C34 PRE3300C35 PRE3300C36 PRE3300C38 PRE3300C40 PRE3300C42 PRE3300C44 PRE3300C46 PRE3300C48 PRE3300C50
28’ / 8,55 m 29’ / 8,85 m 30’ / 9,15 m 31’ / 9,50 m 32’ / 9,75 m 33’ / 10,00 m 34’ / 10,35 m 35’ / 10,65 m 36’ / 11,00 m 38’ / 11,50 m 40’ / 12,10 m 42’ / 12,70 m 44’ / 13,30 m 46’ / 14,00 m 48’ / 14,50 m 50’ / 15,00 m
10-32”
Avec double gaine pour une meilleure efficacité de travail Course: 76 mm
