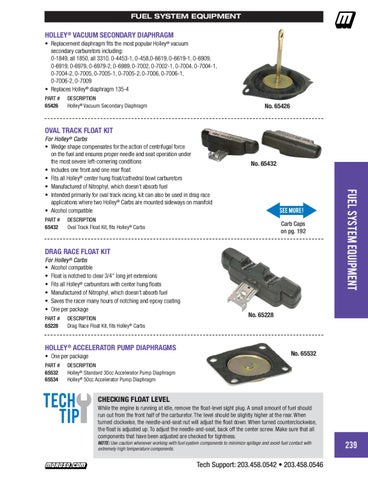

FUEL PRODUCT SYSTEM HEADER EQUIPMENT
HOLLEY® VACUUM SECONDARY DIAPHRAGM • Replacement diaphragm fits the most popular Holley® vacuum secondary carburetors including: 0-1849, all 1850, all 3310, 0-4453-1, 0-458,0-6619, 0-6619-1, 0-6909, 0-6919, 0-6979, 0-6979-2, 0-6989, 0-7002, 0-7002-1, 0-7004, 0-7004-1, 0-7004-2, 0-7005, 0-7005-1, 0-7005-2, 0-7006, 0-7006-1, 0-7006-2, 0-7009 • Replaces Holley® diaphragm 135-4 PART # 65426
DESCRIPTION Holley® Vacuum Secondary Diaphragm
No. 65426
OVAL TRACK FLOAT KIT
PART # 65432
No. 65432
DESCRIPTION Oval Track Float Kit, fits Holley® Carbs
Carb Caps on pg. 192
DRAG RACE FLOAT KIT For Holley® Carbs • Alcohol compatible • Float is notched to clear 3/4" long jet extensions • Fits all Holley® carburetors with center hung floats • Manufactured of Nitrophyl, which doesn’t absorb fuel • Saves the racer many hours of notching and epoxy coating • One per package PART # 65228
DESCRIPTION Drag Race Float Kit, fits Holley® Carbs
HOLLEY® ACCELERATOR PUMP DIAPHRAGMS • One per package PART # 65532 65534
FUEL SYSTEM EQUIPMENT
For Holley® Carbs • Wedge shape compensates for the action of centrifugal force on the fuel and ensures proper needle and seat operation under the most severe left-cornering conditions • Includes one front and one rear float • Fits all Holley® center hung float/cathedral bowl carburetors • Manufactured of Nitrophyl, which doesn’t absorb fuel • Intended primarily for oval track racing, kit can also be used in drag race applications where two Holley® Carbs are mounted sideways on manifold • Alcohol compatible
No. 65228
No. 65532
DESCRIPTION Holley® Standard 30cc Accelerator Pump Diaphragm Holley® 50cc Accelerator Pump Diaphragm
CHECKING FLOAT LEVEL While the engine is running at idle, remove the float-level sight plug. A small amount of fuel should run out from the front half of the carburetor. The level should be slightly higher at the rear. When turned clockwise, the needle-and-seat nut will adjust the float down. When turned counterclockwise, the float is adjusted up. To adjust the needle-and-seat, back off the center screw. Make sure that all components that have been adjusted are checked for tightness. NOTE: Use caution whenever working with fuel system components to minimize spillage and avoid fuel contact with extremely high temperature components.
