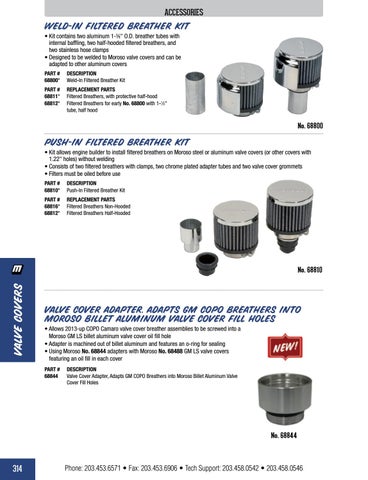

ACCESSORIES WELD-IN FILTERED BREATHER KIT • Kit contains two aluminum 1-3⁄8" O.D. breather tubes with internal baffling, two half-hooded filtered breathers, and two stainless hose clamps • Designed to be welded to Moroso valve covers and can be adapted to other aluminum covers PART # 68800*
DESCRIPTION Weld-In Filtered Breather Kit
PART # REPLACEMENT PARTS 68811* Filtered Breathers, with protective half-hood 68812* Filtered Breathers for early No. 68800 with 1-1⁄2" tube, half hood
No. 68800 PUSH-IN FILTERED BREATHER KIT • Kit allows engine builder to install filtered breathers on Moroso steel or aluminum valve covers (or other covers with 1.22" holes) without welding • Consists of two filtered breathers with clamps, two chrome plated adapter tubes and two valve cover grommets • Filters must be oiled before use PART # 68810*
DESCRIPTION Push-In Filtered Breather Kit
PART # 68816* 68812*
REPLACEMENT PARTS Filtered Breathers Non-Hooded Filtered Breathers Half-Hooded
VALVE COVERS
No. 68810
VALVE COVER ADAPTER, ADAPTS GM COPO BREATHERS INTO MOROSO BILLET ALUMINUM VALVE COVER FILL HOLES • Allows 2013-up COPO Camaro valve cover breather assemblies to be screwed into a Moroso GM LS billet aluminum valve cover oil fill hole • Adapter is machined out of billet aluminum and features an o-ring for sealing • Using Moroso No. 68844 adapters with Moroso No. 68488 GM LS valve covers featuring an oil fill in each cover PART # DESCRIPTION 68844 Valve Cover Adapter, Adapts GM COPO Breathers into Moroso Billet Aluminum Valve Cover Fill Holes
No. 68844
314
Phone: 203.453.6571 • Fax: 203.453.6906 • Tech Support: 203.458.0542 • 203.458.0546
