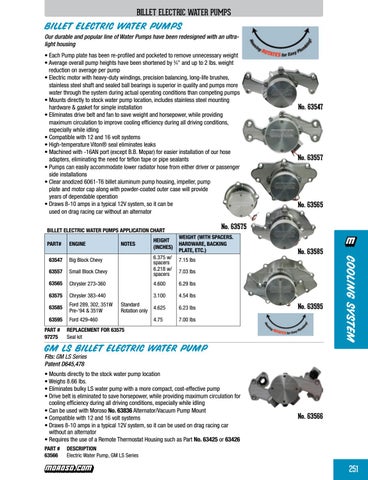

BILLET ELECTRIC WATER PUMPS BILLET ELECTRIC WATER PUMPS Our durable and popular line of Water Pumps have been redesigned with an ultralight housing • Each Pump plate has been re-profiled and pocketed to remove unnecessary weight • Average overall pump heights have been shortened by 3⁄4" and up to 2 lbs. weight reduction on average per pump • Electric motor with heavy-duty windings, precision balancing, long-life brushes, stainless steel shaft and sealed ball bearings is superior in quality and pumps more water through the system during actual operating conditions than competing pumps • Mounts directly to stock water pump location, includes stainless steel mounting hardware & gasket for simple installation • Eliminates drive belt and fan to save weight and horsepower, while providing maximum circulation to improve cooling efficiency during all driving conditions, especially while idling • Compatible with 12 and 16 volt systems • High-temperature Viton® seal eliminates leaks • Machined with -16AN port (except B.B. Mopar) for easier installation of our hose adapters, eliminating the need for teflon tape or pipe sealants • Pumps can easily accommodate lower radiator hose from either driver or passenger side installations • Clear anodized 6061-T6 billet aluminum pump housing, impeller, pump plate and motor cap along with powder-coated outer case will provide years of dependable operation • Draws 8-10 amps in a typical 12V system, so it can be used on drag racing car without an alternator
ENGINE
NOTES
HEIGHT (INCHES)
WEIGHT (WITH SPACERS. HARDWARE, BACKING PLATE, ETC.)
63565
Chrysler 273-360
4.600
6.29 lbs
63575
Chrysler 383-440
3.100
4.54 lbs
63585
Ford 289, 302, 351W Pre-'94 & 351W
4.625
6.23 lbs
63595
Ford 429-460
4.75
7.00 lbs
Big Block Chevy
63557
PART # 97275
Standard Rotation only
No. 63565
No. 63585
7.03 lbs
No. 63595
REPLACEMENT FOR 63575 Seal kit
COOLING SYSTEM
7.15 lbs
Small Block Chevy
6.375 w/ spacers 6.218 w/ spacers
63547
No. 63557
No. 63575
BILLET ELECTRIC WATER PUMPS APPLICATION CHART PART#
No. 63547
GM LS BILLET ELECTRIC WATER PUMP Fits: GM LS Series Patent D645,478 • Mounts directly to the stock water pump location • Weighs 8.66 lbs. • Eliminates bulky LS water pump with a more compact, cost-effective pump • Drive belt is eliminated to save horsepower, while providing maximum circulation for cooling efficiency during all driving conditions, especially while idling • Can be used with Moroso No. 63836 Alternator/Vacuum Pump Mount • Compatible with 12 and 16 volt systems • Draws 8-10 amps in a typical 12V system, so it can be used on drag racing car without an alternator • Requires the use of a Remote Thermostat Housing such as Part No. 63425 or 63426 PART # 63566
No. 63566
DESCRIPTION Electric Water Pump, GM LS Series
251
