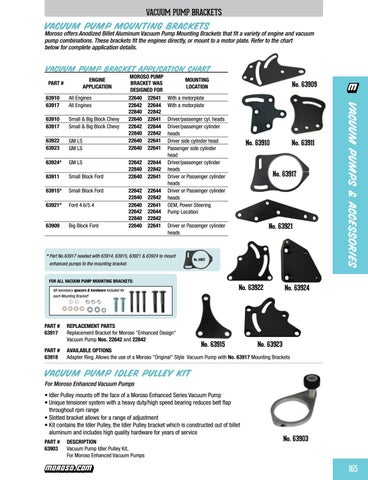

VACUUM PUMP BRACKETS VACUUM PUMP MOUNTING BRACKETS Moroso offers Anodized Billet Aluminum Vacuum Pump Mounting Brackets that fit a variety of engine and vacuum pump combinations. These brackets fit the engines directly, or mount to a motor plate. Refer to the chart below for complete application details. VACUUM PUMP BRACKET APPLICATION CHART ENGINE APPLICATION
PART #
All Engines All Engines
63910 63917
Small & Big Block Chevy Small & Big Block Chevy
63922 63923
GM LS GM LS
63924*
GM LS
63911
Small Block Ford
63915*
Small Block Ford
63921*
Ford 4.6/5.4
63909
Big Block Ford
22642 22840 22640
22644 22842 22641
22642 22840 22640 22642 22840 22640
22644 22842 22641 22644 22842 22641
MOUNTING LOCATION
No. 63909
With a motorplate With a motorplate Driver/passenger cyl. heads Driver/passenger cylinder heads Driver side cylinder head Passenger side cylinder head Driver/passenger cylinder heads Driver or Passenger cylinder heads Driver or Passenger cylinder heads OEM, Power Steering Pump Location
No. 63910
No. 63917
No. 63921
Driver or Passenger cylinder heads
* Part No.63917 needed with 63914, 63915, 63921 & 63924 to mount enhanced pumps to the mounting bracket.
No. 63917
FOR ALL VACUUM PUMP MOUNTING BRACKETS:
No. 63922
All necessary spacers & hardware included for each Mounting Bracket!
PART # REPLACEMENT PARTS 63917 Replacement Bracket for Moroso "Enhanced Design" Vacuum Pump Nos. 22642 and 22842
No. 63911
No. 63915
VACUUM PUMPS & ACCESSORIES
63910 63917
MOROSO PUMP BRACKET WAS DESIGNED FOR 22640 22641 22642 22644 22840 22842 22640 22641 22642 22644 22840 22842 22640 22641 22640 22641
No. 63924
No. 63923
PART # AVAILABLE OPTIONS 63918 Adapter Ring. Allows the use of a Moroso "Original" Style Vacuum Pump with No. 63917 Mounting Brackets
VACUUM PUMP IDLER PULLEY KIT For Moroso Enhanced Vacuum Pumps • Idler Pulley mounts off the face of a Moroso Enhanced Series Vacuum Pump • Unique tensioner system with a heavy duty/high speed bearing reduces belt flap throughout rpm range • Slotted bracket allows for a range of adjustment • Kit contains the Idler Pulley, the Idler Pulley bracket which is constructed out of billet aluminum and includes high quality hardware for years of service PART # DESCRIPTION 63903 Vacuum Pump Idler Pulley Kit, For Moroso Enhanced Vacuum Pumps
No. 63903
165
