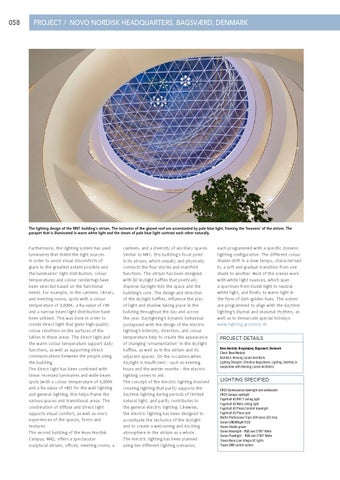

PROJECT / NOVO NORDISK HEADQUARTERS, BAGSVÆRD, DENMARK
The lighting design of the NN1 building’s atrium. The tectonics of the glazed roof are accentuated by pale blue light, framing the ‘heavens’ of the atrium. The parapet that is illuminated in warm white light and the steam of pale blue light contrast each other naturally.
Furthermore, the lighting system has used luminaires that shield the light sources in order to avoid visual discomforts of glare to the greatest extent possible and the luminaires’ light distribution, colour temperatures and colour renderings have been selected based on the functional needs. For example, in the canteen, library, and meeting rooms, spots with a colour temperature of 3,000K, a Ra-value of +90 and a narrow beam light distribution have been utilised. This was done in order to create direct light that gives high-quality colour rendition on the surfaces of the tables in these areas. The direct light and the warm colour temperature support daily functions, as well as supporting direct communications between the people using the building. The direct light has been combined with linear recessed luminaires and wide-beam spots (with a colour temperature of 4,000K and a Ra-value of +80) for the wall lighting and general lighting; this helps frame the various spaces and transitional areas. The combination of diffuse and direct light supports visual comfort, as well as one’s experiences of the spaces, forms and textures. The second building of the Novo Nordisk Campus, NN2, offers a spectacular sculptural atrium, offices, meeting rooms, a
canteen, and a diversity of ancillary spaces. Similar to NN1, this building’s focal point is its atrium, which visually and physically connects the four stories and manifold functions. The atrium has been designed with 50 skylight baffles that poetically disperse daylight into the space and the building’s core. The design and direction of the skylight baffles, influence the play of light and shadow taking place in the building throughout the day and across the year. Daylighting’s dynamic behaviour juxtaposed with the design of the electric lighting’s intensity, direction, and colour temperature help to create the appearance of changing ‘ornamentation’ in the skylight baffles, as well as in the atrium and its adjacent spaces. On the occasions when daylight is insufficient – such as evening hours and the winter months – the electric lighting comes to aid. The concept of the electric lighting involved creating lighting that partly supports the daytime lighting during periods of limited natural light, and partly contributes to the general electric lighting. Likewise, the electric lighting has been designed to accentuate the tectonics of the skylight and to create a welcoming and exciting atmosphere in the atrium as a whole. The electric lighting has been planned using ten different lighting scenarios;
each programmed with a specific dynamic lighting configuration. The different colour shades shift in a slow tempo, characterised by a soft and gradual transition from one shade to another. Most of the scenes work with white light nuances, which span a spectrum from bluish light to neutral white light, and finally to warm light in the form of dark golden hues. The scenes are programmed to align with the daytime lighting’s diurnal and seasonal rhythms, as well as to demarcate special holidays. www.lighting.grontmij.dk
PROJECT DETAILS Novo Nordisk, Krogshøjvej, Bagsværd, Denmark Client: Novo Nordisk Architect: Henning Larsen Architects Lighting Designer: Christina Augustesen, Lighting, Grontmij in cooperation with Henning Larsen Architects
LIGHTING SPECIFIED ERCO Quintessence downlight and wallwasher ERCO Compar spotlight Fagerhult AS RAY 2 ceiling light Fagerhult AS Notor ceiling light Fagerhult AS Pleiad Comfort downlight Fagerhult AS Phase spot Martin Professional Tripix 300 linear LED strip Osram LINEARlight FLEX Osram Double grazer Osram Washlight - RGB and 2700° White Osram Floodlight - RGB and 2700° White Traxon Nano Liner Allegro AC lights Traxon DMX control system
