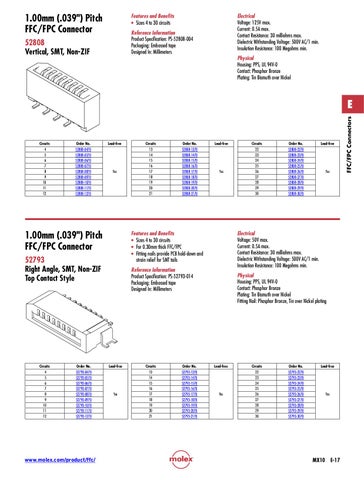

1.00mm (.039") Pitch FFC/FPC Connector
Features and Benefits • Sizes 4 to 30 circuits
Electrical Voltage: 125V max. Current: 0.5A max. Contact Resistance: 30 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 100 Megohms min.
Reference Information Product Specification: PS-52808-004 Packaging: Embossed tape Designed In: Millimeters
52808 Vertical, SMT, Non-ZIF
Physical Housing: PPS, UL 94V-0 Contact: Phosphor Bronze Plating: Tin Bismuth over Nickel
Circuits 4 5 6 7 8 9 10 11 12
Order No. 52808-0470 52808-0570 52808-0670 52808-0770 52808-0870 52808-0970 52808-1070 52808-1170 52808-1270
Lead-free
Yes
1.00mm (.039") Pitch FFC/FPC Connector
Order No. 52793-0470 52793-0570 52793-0670 52793-0770 52793-0870 52793-0970 52793-1070 52793-1170 52793-1270
www.molex.com/product/ffc/
Order No. 52808-1370 52808-1470 52808-1570 52808-1670 52808-1770 52808-1870 52808-1970 52808-2070 52808-2170
Lead-free
Yes
Features and Benefits • Sizes 4 to 30 circuits • For 0.30mm thick FFC/FPC • Fitting nails provide PCB hold-down and strain relief for SMT tails
52793 Right Angle, SMT, Non-ZIF Top Contact Style
Circuits 4 5 6 7 8 9 10 11 12
Circuits 13 14 15 16 17 18 19 20 21
Yes
Circuits 13 14 15 16 17 18 19 20 21
Order No. 52793-1370 52793-1470 52793-1570 52793-1670 52793-1770 52793-1870 52793-1970 52793-2070 52793-2170
Order No. 52808-2270 52808-2370 52808-2470 52808-2570 52808-2670 52808-2770 52808-2870 52808-2970 52808-3070
Lead-free
Yes
Electrical Voltage: 50V max. Current: 0.5A max. Contact Resistance: 30 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 100 Megohms min.
Reference Information Product Specification: PS-52793-014 Packaging: Embossed tape Designed In: Millimeters
Lead-free
Circuits 22 23 24 25 26 27 28 29 30
Physical Housing: PPS, UL 94V-0 Contact: Phosphor Bronze Plating: Tin Bismuth over Nickel Fitting Nail: Phosphor Bronze, Tin over Nickel plating
Lead-free
Yes
Circuits 22 23 24 25 26 27 28 29 30
Order No. 52793-2270 52793-2370 52793-2470 52793-2570 52793-2670 52793-2770 52793-2870 52793-2970 52793-3070
Lead-free
Yes
MX10
E-17
FFC/FPC Connectors
E
