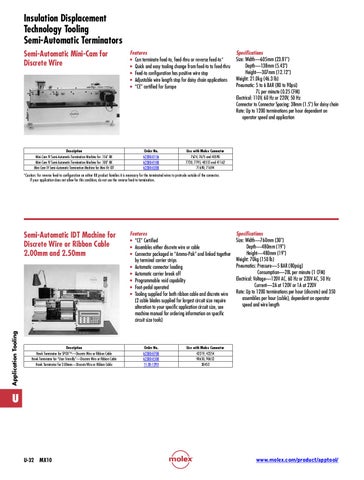

Insulation Displacement Technology Tooling Semi-Automatic Terminators Semi-Automatic Mini-Cam for Discrete Wire
Description Mini-Cam IV Semi-Automatic Termination Machine for .156" KK Mini-Cam IV Semi-Automatic Termination Machine for .100" KK Mini-Cam IV Semi-Automatic Termination Machine for Mini-Fit IDT
Features • Can terminate feed-to, feed-thru or reverse feed-to* • Quick and easy tooling change from feed-to to feed-thru • Feed-to configuration has positive wire stop • Adjustable wire length stop for daisy chain applications • “CE” certified for Europe
Order No. 62300-0156 62300-0100 62300-0200
Specifications Size: W idth—605mm (23.81") Depth—138mm (5.43") Height—307mm (12.12") Weight: 21.0kg (46.3 lb) Pneumatic: 5 to 6 BAR (80 to 90psi) 7L per minute (0.25 CFM) Electrical: 110V, 60 Hz or 220V, 50 Hz Connector to Connector Spacing: 38mm (1.5") for daisy chain Rate: Up to 1200 terminations per hour dependent on operator speed and application
Use with Molex Connector 7674, 7675 and 40590 7720, 7795, 40555 and 41162 71690, 71694
*Caution: For reverse feed-to configuration on either KK product families it is necessary for the terminated wires to protrude outside of the connector. If your application does not allow for this condition, do not use the reverse feed-to termination.
Application Tooling
Semi-Automatic IDT Machine for Discrete Wire or Ribbon Cable 2.00mm and 2.50mm
Description Hawk Terminator for SPOX™—Discrete Wire or Ribbon Cable Hawk Terminator for “User Friendly”—Discrete Wire or Ribbon Cable Hawk Terminator for 2.00mm—Discrete Wire or Ribbon Cable
Features • “CE” Certified • Assembles either discrete wire or cable • Connector packaged in “Ammo-Pak” and linked together by terminal carrier strips • Automatic connector loading • Automatic carrier break off • Programmable void capability • Foot-pedal operated • Tooling supplied for both ribbon cable and discrete wire (2 cable blades supplied for largest circuit size require alteration to your specific application circuit size, see machine manual for ordering information on specific circuit size tools)
Order No. 62300-0700 62300-0500 11-20-1293
Specifications Size: W idth—760mm (30") Depth—480mm (19") Height—480mm (19") Weight: 70kg (150 lb) Pneumatics: P ressure—5 BAR (80psig) Consumption—28L per minute (1 CFM) Electrical: V oltage—120V AC, 60 Hz or 220V AC, 50 Hz Current—2A at 120V or 1A at 220V Rate: Up to 1200 terminations per hour (discrete) and 350 assemblies per hour (cable), dependent on operator speed and wire length
Use with Molex Connector 42219, 42254 90650, 90652 30452
