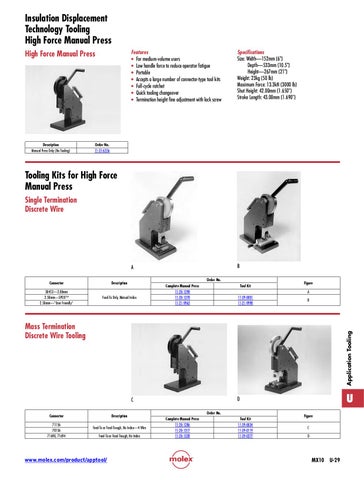

Insulation Displacement Technology Tooling High Force Manual Press High Force Manual Press
Description Manual Press Only (No Tooling)
Features • For medium-volume users • Low handle force to reduce operator fatigue • Portable • Accepts a large number of connector-type tool kits • Full-cycle ratchet • Quick tooling changeover • Termination height fine adjustment with lock screw
Specifications Size: W idth—152mm (6") Depth—533mm (10.5") Height—267mm (21") Weight: 23kg (50 lb) Maximum Force: 13.3kN (3000 lb) Shut Height: 42.00mm (1.650") Stroke Length: 43.00mm (1.690")
A
B
Order No. 11-31-6356
Tooling Kits for High Force Manual Press Single Termination Discrete Wire
Order No.
Connector
Description
30452—2.00mm 2.50mm—SPOX™ 2.50mm—”User Friendly”
Feed-To Only, Manual Index
Complete Manual Press 11-20-1298 11-20-1278 11-21-9963
Tool Kit
Figure A
11-39-0001 11-21-9998
B
Application Tooling
Mass Termination Discrete Wire Tooling
Connector 71156 70156 71690, 71694
Description Feed-To or Feed-Trough, No Index—4 Wire Feed-To or Feed-Trough, No Index
www.molex.com/product/apptool/
U
D
C Order No. Complete Manual Press 11-20-1286 11-20-1317 11-20-1328
Tool Kit 11-39-0034 11-39-0119 11-39-0277
Figure C D
MX10
U-29
