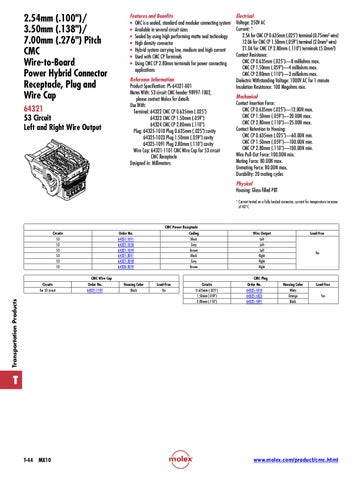

2.54mm (.100")/ 3.50mm (.138")/ 7.00mm (.276") Pitch CMC Wire-to-Board Power Hybrid Connector Receptacle, Plug and Wire Cap 64321 53 Circuit Left and Right Wire Output
Features and Benefits • CMC is a sealed, standard and modular connecting system • Available in several circuit sizes • Sealed by using high performing matte seal technology • High density connector • Hybrid system carrying low, medium and high current • Used with CMC CP Terminals • Using CMC CP 2.80mm terminals for power connecting applications Reference Information Product Specification: PS-64321-001 Mates With: 53 circuit CMC header 98997-1002, please contact Molex for details Use With: Terminal: 64322 CMC CP 0.635mm (.025") 64323 CMC CP 1.50mm (.059") 64324 CMC CP 2.80mm (.110") Plug: 64325-1010 Plug 0.635mm (.025") cavity 64325-1023 Plug 1.50mm (.059") cavity 64325-1091 Plug 2.80mm (.110") cavity Wire Cap: 64321-1101 CMC Wire Cap for 53 circuit CMC Receptacle Designed In: Millimeters
Electrical Voltage: 250V AC Current: * 2.5A for CMC CP 0.635mm (.025") terminal (0.75mm² wire) 12.0A for CMC CP 1.50mm (.059") terminal (2.0mm² wire) 21.0A for CMC CP 2.80mm (.110") terminals (5.0mm²) Contact Resistance: CMC CP 0.635mm (.025")—8 milliohms max. CMC CP 1.50mm (.059")—4 milliohms max. CMC CP 2.80mm (.110")—3 milliohms max. Dielectric Withstanding Voltage: 1000V AC for 1 minute Insulation Resistance: 100 Megohms min. Mechanical Contact Insertion Force: CMC CP 0.635mm (.025")—12.00N max. CMC CP 1.50mm (.059")—20.00N max. CMC CP 2.80mm (.110")—25.00N max. Contact Retention to Housing: CMC CP 0.635mm (.025")—60.00N min. CMC CP 1.50mm (.059")—100.00N min. CMC CP 2.80mm (.110")—100.00N min. Wire Pull-Out Force: 100.00N min. Mating Force: 80.00N max. Unmating Force: 80.00N max. Durability: 20 mating cycles Physical Housing: Glass-filled PBT * Current tested on a fully loaded connector, current for temperature increase of 40°C
CMC Power Receptacle Circuits 53 53 53 53 53 53
Order No. 64321-1011 64321-1018 64321-1019 64321-2011 64321-2018 64320-2019
Coding Black Grey Brown Black Grey Brown
CMC Wire Cap
Transportation Products
Circuits For 53 circuit
Order No. 64321-1101
Wire Output Left Left Left Right Right Right
Lead-Free
Yes
CMC Plug Housing Color Black
Lead-Free Yes
Circuits 0.635mm (.025") 1.50mm (.059") 2.80mm (.110")
Order No. 64325-1010 64325-1023 64325-1091
Housing Color White Orange Black
Lead-Free Yes
