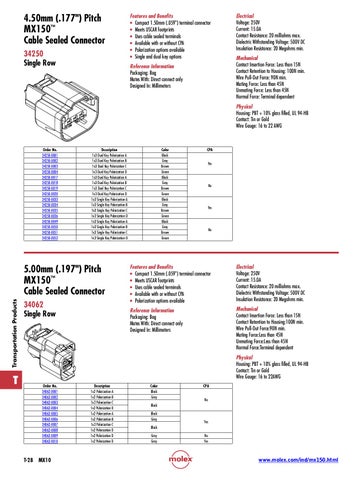

4.50mm (.177") Pitch MX150™ Cable Sealed Connector 34250 Single Row
Features and Benefits • Compact 1.50mm (.059") terminal connector • Meets USCAR footprints • Uses cable sealed terminals • Available with or without CPA • Polarization options available • Single and dual key options Reference Information Packaging: Bag Mates With: Direct connect only Designed In: Millimeters
Electrical Voltage: 250V Current: 15.0A Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V DC Insulation Resistance: 20 Megohms min. Mechanical Contact Insertion Force: Less than 15N Contact Retention to Housing: 100N min. Wire Pull-Out Force: 90N min. Mating Force: Less than 45N Unmating Force: Less than 45N Normal Force: Terminal dependent Physical Housing: PBT + 10% glass filled, UL 94-HB Contact: Tin or Gold Wire Gauge: 16 to 22 AWG
Order No. 34250-0001 34250-0002 34250-0003 34250-0004 34250-0017 34250-0018 34250-0019 34250-0020 34250-0033 34250-0034 34250-0035 34250-0036 34250-0049 34250-0050 34250-0051 34250-0052
Description 1x3 Dual Key Polarization A 1x3 Dual Key Polarization B 1x3 Dual Key Polarization C 1x3 Dual Key Polarization D 1x3 Dual Key Polarization A 1x3 Dual Key Polarization B 1x3 Dual Key Polarization C 1x3 Dual Key Polarization D 1x3 Single Key Polarization A 1x3 Single Key Polarization B 1x3 Single Key Polarization C 1x3 Single Key Polarization D 1x3 Single Key Polarization A 1x3 Single Key Polarization B 1x3 Single Key Polarization C 1x3 Single Key Polarization D
Transportation Products
5.00mm (.197") Pitch MX150™ Cable Sealed Connector 34062 Single Row
Color Black Gray Brown Green Black Gray Brown Green Black Gray Brown Green Black Gray Brown Green
CPA Yes
No
Yes
No
Features and Benefits • Compact 1.50mm (.059") terminal connector • Meets USCAR footprints • Uses cable sealed terminals • Available with or without CPA • Polarization options available
Electrical Voltage: 250V Current: 15.0A Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V DC Insulation Resistance: 20 Megohms min.
Reference Information Packaging: Bag Mates With: Direct connect only Designed In: Millimeters
Mechanical Contact Insertion Force: Less than 15N Contact Retention to Housing:100N min. Wire Pull-Out Force:90N min. Mating Force:Less than 45N Unmating Force:Less than 45N Normal Force:Terminal dependent Physical Housing: PBT + 10% glass filled, UL 94-HB Contact: Tin or Gold Wire Gauge: 16 to 22AWG
FT
Order No. 34062-0001 34062-0002 34062-0003 34062-0004 34062-0005 34062-0006 34062-0007 34062-0008 34062-0009 34062-0010
T-28
MX10
Description 1x2 Polarization A 1x2 Polarization B 1x2 Polarization C 1x2 Polarization D 1x2 Polarization A 1x2 Polarization B 1x2 Polarization C 1x2 Polarization D 1x2 Polarization D 1x2 Polarization D
Color Black Gray
CPA No
Black Black Gray
Yes
Black Gray Gray
No Yes
www.molex.com/ind/mx150.html
