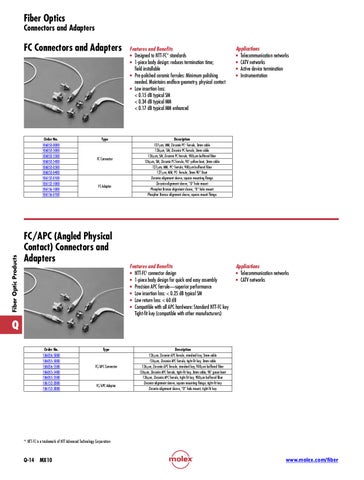

Fiber Optics
Connectors and Adapters
FC Connectors and Adapters
Fiber Optic Products
Order No. 106053-0000 106053-5000 106053-5500 106053-5400 106053-0500 106053-0400 106152-0100 106152-1000 106156-1000 106156-0100
Type
FC Connector
FC Adapter
FC/APC (Angled Physical Contact) Connectors and Adapters
Features and Benefits • Designed to NTT-FC* standards • 1-piece body design: reduces termination time; field installable • Pre-polished ceramic ferrules: Minimum polishing needed. Maintains endface geometry, physical contact • Low insertion loss: < 0.15 dB typical SM < 0.34 dB typical MM < 0.17 dB typical MM enhanced
Applications • Telecommunication networks • CATV networks • Active device termination • Instrumentation
Description 127mm, MM, Zirconia PC+ ferrule, 3mm cable 126mm, SM, Zirconia PC ferrule, 3mm cable 126mm, SM, Zirconia PC ferrule, 900mm buffered fiber 126mm, SM, Zirconia PC ferrule, 90˚ yellow boot, 3mm cable 127mm, MM, PC+ ferrule, 900mm buffered fiber 127mm, MM, PC+ ferrule, 3mm 90° Boot Zirconia alignment sleeve, square mounting flange Zirconia alignment sleeve, “D” hole mount Phosphor Bronze alignment sleeve, “D” hole mount Phosphor Bronze alignment sleeve, square mount flange
Features and Benefits • NTT-FC† connector design • 1-piece body design for quick and easy assembly • Precision APC ferrule—superior performance • Low insertion loss: < 0.25 dB typical SM • Low return loss: < 60 dB • Compatible with all APC hardware: Standard NTT-FC key Tight-fit key (compatible with other manufacturers)
Applications • Telecommunication networks • CATV networks
FQ Order No. 106056-5000 106055-5000 106056-5500 106055-5400 106055-5500 106152-2000 106152-3000
Type
FC/APC Connector
FC/APC Adapter
Description 126mm, Zirconia APC ferrule, standard key, 3mm cable 126mm, Zirconia APC ferrule, tight-fit key, 3mm cable 126mm, Zirconia APC ferrule, standard key, 900mm buffered fiber 126mm, Zirconia APC ferrule, tight-fit key, 3mm cable, 90˚ green boot 126mm, Zirconia APC ferrule, tight-fit key, 900mm buffered fiber Zirconia alignment sleeve, square mounting flange, tight-fit key Zirconia alignment sleeve, “D” hole mount, tight-fit key
*† NTT-FC is a trademark of NTT Advanced Technology Corporation
Q-14
MX10
