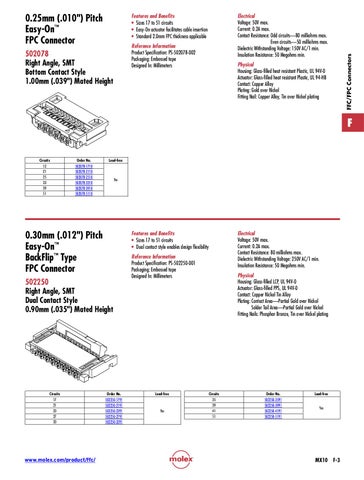

Features and Benefits • Sizes 17 to 51 circuits • Easy-On actuator facilitates cable insertion • Standard 2.0mm FPC thickness applicable
Electrical Voltage: 50V max. Current: 0.2A max. Contact Resistance: Odd circuits—80 milliohms max. Even circuits—50 milliohms max. Dielectric Withstanding Voltage: 150V AC/1 min. Insulation Resistance: 50 Megohms min.
Reference Information Product Specification: PS-502078-002 Packaging: Embossed tape Designed In: Millimeters
502078 Right Angle, SMT Bottom Contact Style 1.00mm (.039") Mated Height
FFC/FPC Connectors
0.25mm (.010") Pitch Easy-On™ FPC Connector
Physical Housing: Glass-filled heat resistant Plastic, UL 94V-0 Actuator: Glass-filled heat resistant Plastic, UL 94-HB Contact: Copper Alloy Plating: Gold over Nickel Fitting Nail: Copper Alloy, Tin over Nickel plating
FF
Circuits 12 21 25 33 39 51
Order No. 502078-1710 502078-2110 502078-2510 502078-3310 502078-3910 502078-5110
Lead-free
Yes
0.30mm (.012") Pitch Easy-On™ BackFlip™ Type FPC Connector
Features and Benefits • Sizes 17 to 51 circuits • Dual contact style enables design flexibility
502250 Right Angle, SMT Dual Contact Style 0.90mm (.035") Mated Height
Circuits 17 21 23 27 33
www.molex.com/product/ffc/
Order No. 502250-1791 502250-2191 502250-2391 502250-2791 502250-3391
Reference Information Product Specification: PS-502250-001 Packaging: Embossed tape Designed In: Millimeters
Lead-free
Yes
Electrical Voltage: 50V max. Current: 0.2A max. Contact Resistance: 80 milliohms max. Dielectric Withstanding Voltage: 250V AC/1 min. Insulation Resistance: 50 Megohms min. Physical Housing: Glass-filled LCP, UL 94V-0 Actuator: Glass-filled PPS, UL 94V-0 Contact: Copper Nickel Tin Alloy Plating: Contact Area—Partial Gold over Nickel Solder Tail Area—Partial Gold over Nickel Fitting Nails: Phosphor Bronze, Tin over Nickel plating
Circuits 35 39 41 51
Order No. 502250-3591 502250-3991 502250-4191 502250-5191
Lead-free Yes
MX10
F-3
