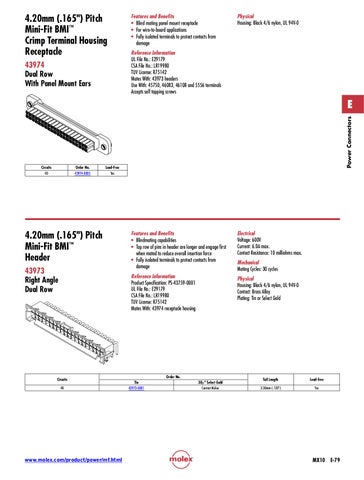

4.20mm (.165") Pitch Mini-Fit BMI™ Crimp Terminal Housing Receptacle 43974 Dual Row With Panel Mount Ears
Features and Benefits • Blind mating panel mount receptacle • For wire-to-board applications • Fully isolated terminals to protect contacts from damage
Physical Housing: Black 4/6 nylon, UL 94V-0
Reference Information UL File No.: E29179 CSA File No.: LR19980 TUV License: R75142 Mates With: 43973 headers Use With: 45750, 46083, 46108 and 5556 terminals Accepts self tapping screws
Circuits 40
Order No. 43974-0005
Power Connectors
E
Lead-Free Yes
4.20mm (.165") Pitch Mini-Fit BMI™ Header 43973 Right Angle Dual Row
Circuits 40
www.molex.com/product/power/mf.html
Features and Benefits • Blindmating capabilities • Top row of pins in header are longer and engage first when mated to reduce overall insertion force • Fully isolated terminals to protect contacts from damage
Electrical Voltage: 600V Current: 6.0A max. Contact Resistance: 10 milliohms max.
Reference Information Product Specification: PS-43759-0001 UL File No.: E29179 CSA File No.: LR19980 TUV License: R75142 Mates With: 43974 receptacle housing
Physical Housing: Black 4/6 nylon, UL 94V-0 Contact: Brass Alloy Plating: Tin or Select Gold
Order No. Tin 43973-0001
30" Select Gold Contact Molex
Mechanical Mating Cycles: 30 cycles
Tail Length
Lead-free
3.30mm (.130")
Yes
MX10
E-79
