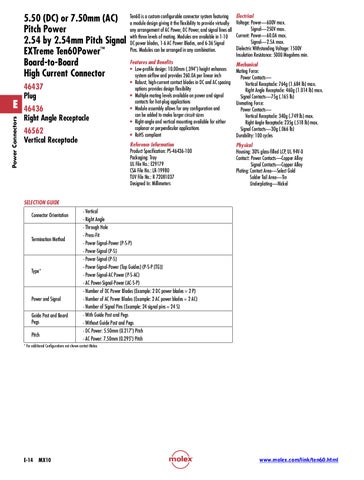

5.50 (DC) or 7.50mm (AC) Pitch Power 2.54 by 2.54mm Pitch Signal EXTreme Ten60Power™ Board-to-Board High Current Connector
Power Connectors
E
46437 Plug 46436 Right Angle Receptacle 46562 Vertical Receptacle
Ten60 is a custom configurable connector system featuring a module design giving it the flexibility to provide virtually any arrangement of AC Power, DC Power, and signal lines all with three levels of mating. Modules are available in 1-10 DC power blades, 1-6 AC Power Blades, and 6-36 Signal Pins. Modules can be arranged in any combination.
Electrical Voltage: P ower—600V max. Signal—250V max. Current: Power—60.0A max. Signal—2.5A max. Dielectric Withstanding Voltage: 1500V Insulation Resistance: 5000 Megohms min.
Features and Benefits • Low-profile design: 10.00mm (.394") height enhances system airflow and provides 260.0A per linear inch • Robust, high-current contact blades in DC and AC spacing options provides design flexibility • Multiple mating levels available on power and signal contacts for hot-plug applications • Module assembly allows for any configuration and can be added to make larger circuit sizes • Right-angle and vertical mounting available for either coplanar or perpendicular applications • RoHS compliant
Mechanical Mating Force: Power Contacts— Vertical Receptacle: 764g (1.684 lb) max. Right Angle Receptacle: 460g (1.014 lb) max. Signal Contacts—75g (.165 lb) Unmating Force: Power Contacts— Vertical Receptacle: 340g (.749 lb) max. Right Angle Receptacle: 235g (.518 lb) max. Signal Contacts—30g (.066 lb) Durability: 100 cycles
Reference Information Product Specification: PS-46436-100 Packaging: Tray UL File No.: E29179 CSA File No.: LR-19980 TUV File No.: R 72081037 Designed In: Millimeters
Physical Housing: 30% glass-filled LCP, UL 94V-0 Contact: P ower Contacts—Copper Alloy Signal Contacts—Copper Alloy Plating: C ontact Area—Select Gold Solder Tail Area—Tin Underplating—Nickel
Selection Guide Connector Orientation
Termination Method
Type*
Power and Signal Guide Post and Board Pegs Pitch
- Vertical - Right Angle - Through Hole - Press-Fit - Power-Signal-Power (P-S-P) - Power-Signal (P-S) - Power-Signal (P-S) - Power-Signal-Power (Top Guides) (P-S-P (TG)) - Power-Signal-AC Power (P-S-AC) - AC Power-Signal-Power (AC-S-P) - Number of DC Power Blades (Example: 2 DC power blades = 2 P) - Number of AC Power Blades (Example: 2 AC power blades = 2 AC) - Number of Signal Pins (Example: 24 signal pins = 24 S) - With Guide Post and Pegs - Without Guide Post and Pegs - DC Power: 5.50mm (0.217") Pitch - AC Power: 7.50mm (0.295") Pitch
* For additional Configurations not shown contact Molex
E-14
MX10
www.molex.com/link/ten60.html
