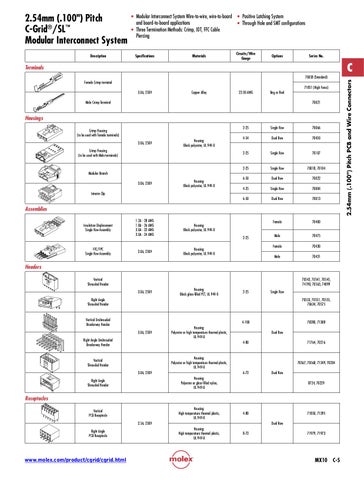

2.54mm (.100") Pitch C-Grid®/SL™ Modular Interconnect System Description
• Modular Interconnect System Wire-to-wire, wire-to-board • Positive Latching System and board-to-board applications • Through Hole and SMT configurations • Three Termination Methods: Crimp, IDT, FFC Cable Piercing
Specifications
Materials
Circuits/Wire Gauge
Options
Series No.
C
Terminals
2.54mm (.100") Pitch PCB and Wire Connectors
70058 (Standard) Female Crimp terminal 71851 (High Force) 3.0A, 250V
Copper Alloy
22-30 AWG
Bag or Reel
Male Crimp Terminal
70021
Housings Crimp Housing (to be used with female terminals) 3.0A, 250V
Housing: Black polyester, UL 94V-0
Crimp Housing (to be used with Male terminals)
2-25
Single Row
70066
4-54
Dual Row
70450
2-25
Single Row
70107
2-25
Single Row
70018, 70104
6-50
Dual Row
70022
4-25
Single Row
70004
6-50
Dual Row
70013
Female
70400
Male
70475
Female
70430
Male
70431
Modular Branch 3.0A, 250V
Housing: Black polyester, UL 94V-0
Interim Clip
Assemblies Insulation Displacement Single Row Assembly
FFC/FPC Single Row Assembly
1.2A - 28 AWG 1.8A - 26 AWG 3.0A - 22 AWG 3.0A - 24 AWG
Housing: Black polyester, UL 94V-0
2.0A, 250V
Housing: Black polyester, UL 94V-0
2-25
Headers Vertical Shrouded Header
70543, 70541, 70545, 74190, 70563, 74099 3.0A, 250V
Housing: Black glass-filled PCT, UL 94V-0
2-25
Single Row
Right Angle Shrouded Header
70553, 70551, 70555, 70634, 70575
Vertical Unshrouded Breakaway Header
4-100 3.0A, 250V
Right Angle Unshrouded Breakaway Header
Housing: Polyester or high temperature thermal plastic, UL 94V-0
70280, 71308 Dual Row
4-80
71764, 70216
Housing: Polyester or high temperature thermal plastic, UL 94V-0
Vertical Shrouded Header 3.0A, 250V
70567, 70568, 71349, 70204 6-72
Right Angle Shrouded Header
Housing: Polyester or glass-filled nylon, UL 94V-0
Vertical PCB Receptacle
Housing: High temperature thermal plastic, UL 94V-0
Dual Row 8724, 70229
Receptacles 4-80
2.5A, 250V Right Angle PCB Receptacle
www.molex.com/product/cgrid/cgrid.html
71850, 71395 Dual Row
Housing: High temperature thermal plastic, UL 94V-0
8-72
71979, 71973
MX10
C-5
