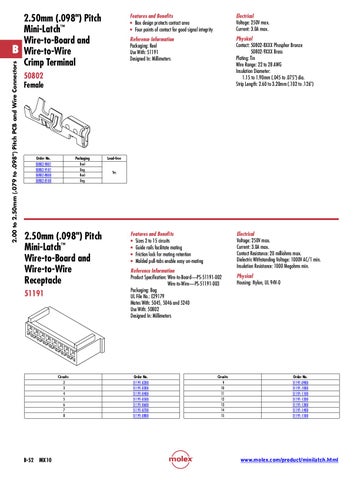

2.00 to 2.50mm (.079 to .098") Pitch PCB and Wire Connectors
2.50mm (.098") Pitch Mini-Latch™ Wire-to-Board and B Wire-to-Wire Crimp Terminal
Features and Benefits • Box design protects contact area • Four points of contact for good signal integrity
Electrical Voltage: 250V max. Current: 3.0A max.
Reference Information Packaging: Reel Use With: 51191 Designed In: Millimeters
Physical Contact: 5 0802-8XXX Phosphor Bronze 50802-9XXX Brass Plating: Tin Wire Range: 22 to 28 AWG Insulation Diameter: 1.15 to 1.90mm (.045 to .075") dia. Strip Length: 2.60 to 3.20mm (.102 to .126")
Features and Benefits • Sizes 2 to 15 circuits • Guide rails facilitate mating • Friction lock for mating retention • Molded pull-tabs enable easy un-mating
Electrical Voltage: 250V max. Current: 3.0A max. Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 1000V AC/1 min. Insulation Resistance: 1000 Megohms min.
50802 Female
Order No. 50802-9001 50802-9101 50802-8000 50802-8100
Packaging Reel Bag Reel Bag
2.50mm (.098") Pitch Mini-Latch™ Wire-to-Board and Wire-to-Wire Receptacle 51191
Circuits 2 3 4 5 6 7 8
B-52
MX10
Lead-free Yes
Reference Information Product Specification: W ire-to-Board—PS-51191-002 Wire-to-Wire—PS-51191-003 Packaging: Bag UL File No.: E29179 Mates With: 5045, 5046 and 5240 Use With: 50802 Designed In: Millimeters
Order No. 51191-0200 51191-0300 51191-0400 51191-0500 51191-0600 51191-0700 51191-0800
Circuits 9 10 11 12 13 14 15
Physical Housing: Nylon, UL 94V-0
Order No. 51191-0900 51191-1000 51191-1100 51191-1200 51191-1300 51191-1400 51191-1500
www.molex.com/product/minilatch.html
