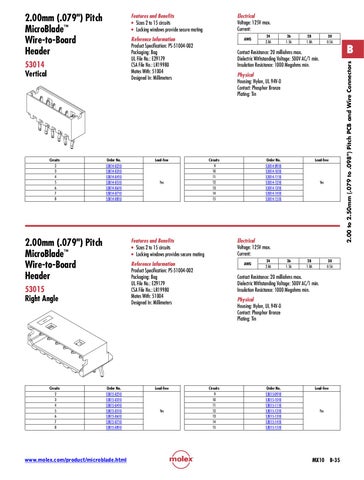

Features and Benefits • Sizes 2 to 15 circuits • Locking windows provide secure mating Reference Information Product Specification: P S-51004-002 Packaging: Bag UL File No.: E29179 CSA File No.: LR19980 Mates With: 51004 Designed In: Millimeters
53014 Vertical
Circuits 2 3 4 5 6 7 8
Order No. 53014-0210 53014-0310 53014-0410 53014-0510 53014-0610 53014-0710 53014-0810
2.00mm (.079") Pitch MicroBlade™ Wire-to-Board Header
Lead-free
Yes
AWG
www.molex.com/product/microblade.html
Lead-free
Yes
26 1.5A
28 1.0A
30 0.5A
Physical Housing: Nylon, UL 94V-0 Contact: Phosphor Bronze Plating: Tin
Circuits 9 10 11 12 13 14 15
Order No. 53014-0910 53014-1010 53014-1110 53014-1210 53014-1310 53014-1410 53014-1510
Lead-free
Yes
Electrical Voltage: 125V max. Current:
Reference Information Product Specification: P S-51004-002 Packaging: Bag UL File No.: E29179 CSA File No.: LR19980 Mates With: 51004 Designed In: Millimeters
Order No. 53015-0210 53015-0310 53015-0410 53015-0510 53015-0610 53015-0710 53015-0810
24 2.0A
Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 1000 Megohms min.
Features and Benefits • Sizes 2 to 15 circuits • Locking windows provides secure mating
53015 Right Angle
Circuits 2 3 4 5 6 7 8
Electrical Voltage: 125V max. Current:
AWG
24 2.0A
26 1.5A
28 1.0A
30 0.5A
Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 1000 Megohms min. Physical Housing: Nylon, UL 94V-0 Contact: Phosphor Bronze Plating: Tin
Circuits 9 10 11 12 13 14 15
Order No. 53015-0910 53015-1010 53015-1110 53015-1210 53015-1310 53015-1410 53015-1510
Lead-free
Yes
MX10
B 2.00 to 2.50mm (.079 to .098") Pitch PCB and Wire Connectors
2.00mm (.079") Pitch MicroBlade™ Wire-to-Board Header
B-35
