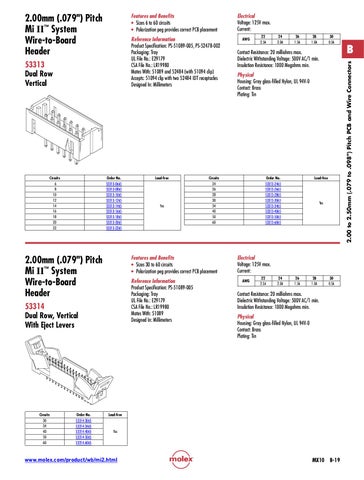

Features and Benefits • Sizes 6 to 60 circuits • Polarization peg provides correct PCB placement Reference Information Product Specification: P S-51089-005, PS-52478-002 Packaging: Tray UL File No.: E29179 CSA File No.: LR19980 Mates With: 51089 and 52484 (with 51094 clip) Accepts: 51094 clip with two 52484 IDT receptacles Designed In: Millimeters
53313 Dual Row Vertical
Circuits 6 8 10 12 14 16 18 20 22
Order No. 53313-0665 53313-0865 53313-1065 53313-1265 53313-1465 53313-1665 53313-1865 53313-2065 53313-2265
2.00mm (.079") Pitch Mi II™ System Wire-to-Board Header
Order No. 53314-3065 53314-3465 53314-4065 53314-5065 53314-6065
Yes
Reference Information Product Specification: P S-51089-005 Packaging: Tray UL File No.: E29179 CSA File No.: LR19980 Mates With: 51089 Designed In: Millimeters
AWG
22 2.5A
24 2.0A
26 1.5A
28 1.0A
30 0.5A
Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 1000 Megohms min. Physical Housing: Gray glass-filled Nylon, UL 94V-0 Contact: Brass Plating: Tin
Circuits 24 26 28 30 34 40 50 60
Features and Benefits • Sizes 30 to 60 circuits • Polarization peg provides correct PCB placement
53314 Dual Row, Vertical With Eject Levers
Circuits 30 34 40 50 60
Lead-free
Electrical Voltage: 125V max. Current:
Order No. 53313-2465 53313-2665 53313-2865 53313-3065 53313-3465 53313-4065 53313-5065 53313-6065
Lead-free
Yes
Electrical Voltage: 125V max. Current: AWG
22 2.5A
24 2.0A
26 1.5A
28 1.0A
30 0.5A
Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 1000 Megohms min. Physical Housing: Gray glass-filled Nylon, UL 94V-0 Contact: Brass Plating: Tin
Lead-free
Yes
www.molex.com/product/wb/mi2.html
MX10
B 2.00 to 2.50mm (.079 to .098") Pitch PCB and Wire Connectors
2.00mm (.079") Pitch Mi II™ System Wire-to-Board Header
B-19
