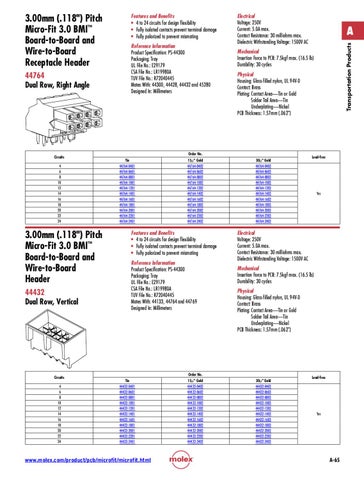

44764 Dual Row, Right Angle
Circuits 4 6 8 10 12 14 16 18 20 22 24
3.00mm (.118") Pitch Micro-Fit 3.0 BMI™ Board-to-Board and Wire-to-Board Header 44432 Dual Row, Vertical
Circuits 4 6 8 10 12 14 16 18 20 22 24
Features and Benefits • 4 to 24 circuits for design flexibility • Fully isolated contacts prevent terminal damage • Fully polarized to prevent mismating Reference Information Product Specification: PS-44300 Packaging: Tray UL File No.: E29179 CSA File No.: LR19980A TUV File No.: R72040445 Mates With: 44300, 44428, 44432 and 45280 Designed In: Millimeters
Electrical Voltage: 250V Current: 5.0A max. Contact Resistance: 30 milliohms max. Dielectric Withstanding Voltage: 1500V AC Mechanical Insertion Force to PCB: 7.5kgf max. (16.5 lb) Durability: 30 cycles Physical Housing: Glass-filled nylon, UL 94V-0 Contact: Brass Plating: Contact Area—Tin or Gold Solder Tail Area—Tin Underplating—Nickel PCB Thickness: 1.57mm (.062")
Order No. Tin 44764-0401 44764-0601 44764-0801 44764-1001 44764-1201 44764-1401 44764-1601 44764-1801 44764-2001 44764-2201 44764-2401
15m" Gold 44764-0402 44764-0602 44764-0802 44764-1002 44764-1202 44764-1402 44764-1602 44764-1802 44764-2002 44764-2202 44764-2402
Features and Benefits • 4 to 24 circuits for design flexibility • Fully isolated contacts prevent terminal damage • Fully polarized to prevent mismating Reference Information Product Specification: PS-44300 Packaging: Tray UL File No.: E29179 CSA File No.: LR19980A TUV File No.: R72040445 Mates With: 44133, 44764 and 44769 Designed In: Millimeters
30m" Gold 44764-0403 44764-0603 44764-0803 44764-1003 44764-1203 44764-1403 44764-1603 44764-1803 44764-2003 44764-2203 44764-2403
www.molex.com/product/pcb/microfit/microfit.html
15m" Gold 44432-0402 44432-0602 44432-0802 44432-1002 44432-1202 44432-1402 44432-1602 44432-1802 44432-2002 44432-2202 44432-2402
Lead-free
Yes
Electrical Voltage: 250V Current: 5.0A max. Contact Resistance: 30 milliohms max. Dielectric Withstanding Voltage: 1500V AC Mechanical Insertion Force to PCB: 7.5kgf max. (16.5 lb) Durability: 30 cycles Physical Housing: Glass-filled nylon, UL 94V-0 Contact: Brass Plating: Contact Area—Tin or Gold Solder Tail Area—Tin Underplating—Nickel PCB Thickness: 1.57mm (.062")
Order No. Tin 44432-0401 44432-0601 44432-0801 44432-1001 44432-1201 44432-1401 44432-1601 44432-1801 44432-2001 44432-2201 44432-2401
A Transportation Products
3.00mm (.118") Pitch Micro-Fit 3.0 BMI™ Board-to-Board and Wire-to-Board Receptacle Header
30m" Gold 44432-0403 44432-0603 44432-0803 44432-1003 44432-1203 44432-1403 44432-1603 44432-1803 44432-2003 44432-2203 44432-2403
Lead-free
Yes
A-65
