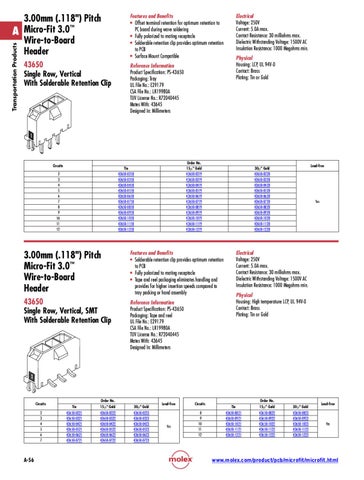

3.00mm (.118") Pitch ™ A Micro-Fit 3.0 Wire-to-Board Header 43650 Single Row, Vertical With Solderable Retention Clip
Circuits
Features and Benefits • Offset terminal retention for optimum retention to PC board during wave soldering • Fully polarized to mating receptacle • Solderable retention clip provides optimum retention to PCB • Surface Mount Compatible Reference Information Product Specification: PS-43650 Packaging: Tray UL File No.: E29179 CSA File No.: LR19980A TUV License No.: R72040445 Mates With: 43645 Designed In: Millimeters
Features and Benefits • Solderable retention clip provides optimum retention to PCB • Fully polarized to mating receptacle • Tape and reel packaging eliminates handling and provides for higher insertion speeds compared to tray packing or hand assembly
43650 Single Row, Vertical, SMT With Solderable Retention Clip
Reference Information Product Specification: PS-43650 Packaging: Tape and reel UL File No.: E29179 CSA File No.: LR19980A TUV License No.: R72040445 Mates With: 43645 Designed In: Millimeters
2 3 4 5 6 7
A-56
Order No. Tin 43650-0221 43650-0321 43650-0421 43650-0521 43650-0621 43650-0721
15m" Gold 43650-0222 43650-0322 43650-0422 43650-0522 43650-0622 43650-0722
30m" Gold 43650-0223 43650-0323 43650-0423 43650-0523 43650-0623 43650-0723
Lead-free
Yes
Circuits 8 9 10 11 12
Lead-free
30m" Gold 43650-0220 43650-0320 43650-0420 43650-0520 43650-0620 43650-0720 43650-0820 43650-0920 43650-1020 43650-1120 43650-1220
3.00mm (.118") Pitch Micro-Fit 3.0™ Wire-to-Board Header
Circuits
Physical Housing: LCP, UL 94V-0 Contact: Brass Plating: Tin or Gold
Order No. 15m" Gold 43650-0219 43650-0319 43650-0419 43650-0519 43650-0619 43650-0719 43650-0819 43650-0919 43650-1019 43650-1119 43650-1219
Tin 43650-0218 43650-0318 43650-0418 43650-0518 43650-0618 43650-0718 43650-0818 43650-0918 43650-1018 43650-1118 43650-1218
2 3 4 5 6 7 8 9 10 11 12
Electrical Voltage: 250V Current: 5.0A max. Contact Resistance: 30 milliohms max. Dielectric Withstanding Voltage: 1500V AC Insulation Resistance: 1000 Megohms min.
Yes
Electrical Voltage: 250V Current: 5.0A max. Contact Resistance: 30 milliohms max. Dielectric Withstanding Voltage: 1500V AC Insulation Resistance: 1000 Megohms min. Physical Housing: High temperature LCP, UL 94V-0 Contact: Brass Plating: Tin or Gold
Order No. Tin 43650-0821 43650-0921 43650-1021 43650-1121 43650-1221
15m" Gold 43650-0822 43650-0922 43650-1022 43650-1122 43650-1222
30m" Gold 43650-0823 43650-0923 43650-1023 43650-1123 43650-1223
Lead-free
Yes
