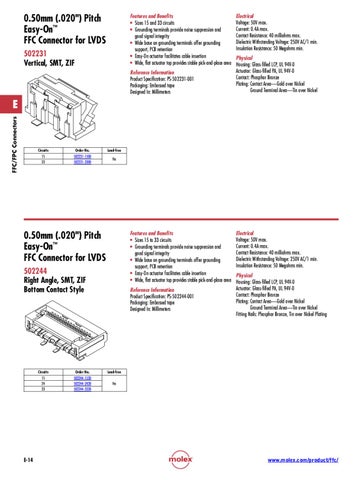

0.50mm (.020") Pitch Easy-On™ FFC Connector for LVDS
Features and Benefits • Sizes 15 and 33 circuits • Grounding terminals provide noise suppression and good signal integrity • Wide base on grounding terminals offer grounding support, PCB retention • Easy-On actuator facilitates cable insertion • Wide, flat actuator top provides stable pick-and-place area
502231 Vertical, SMT, ZIF
Reference Information Product Specification: PS-502231-001 Packaging: Embossed tape Designed In: Millimeters
Electrical Voltage: 50V max. Current: 0.4A max. Contact Resistance: 40 milliohms max. Dielectric Withstanding Voltage: 250V AC/1 min. Insulation Resistance: 50 Megohms min. Physical Housing: Glass-filled LCP, UL 94V-0 Actuator: Glass-filled PA, UL 94V-0 Contact: Phosphor Bronze Plating: Contact Area—Gold over Nickel Ground Terminal Area—Tin over Nickel
FFC/FPC Connectors
E
Circuits 15 33
Order No. 502231-1500 502231-3300
Lead-free Yes
0.50mm (.020") Pitch Easy-On™ FFC Connector for LVDS
Features and Benefits • Sizes 15 to 33 circuits • Grounding terminals provide noise suppression and good signal integrity • Wide base on grounding terminals offer grounding support, PCB retention • Easy-On actuator facilitates cable insertion • Wide, flat actuator top provides stable pick-and-place area
502244 Right Angle, SMT, ZIF Bottom Contact Style
Circuits 15 24 33
E-14
Order No. 502244-1530 502244-2430 502244-3330
Reference Information Product Specification: PS-502244-001 Packaging: Embossed tape Designed In: Millimeters
Electrical Voltage: 50V max. Current: 0.4A max. Contact Resistance: 40 milliohms max. Dielectric Withstanding Voltage: 250V AC/1 min. Insulation Resistance: 50 Megohms min. Physical Housing: Glass-filled LCP, UL 94V-0 Actuator: Glass-filled PA, UL 94V-0 Contact: Phosphor Bronze Plating: Contact Area—Gold over Nickel Ground Terminal Area—Tin over Nickel Fitting Nails: Phosphor Bronze, Tin over Nickel Plating
Lead-free Yes
www.molex.com/product/ffc/
