TUDO R R E VIVA L

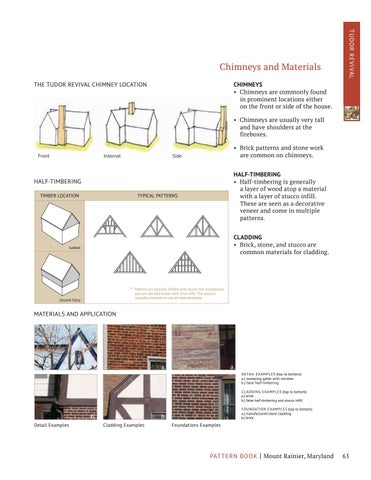

Chimneys and Materials CHIMNEYS • Chimneys are commonly found in prominent locations either on the front or side of the house.
THE TUDOR REVIVAL CHIMNEY LOCATION
• Chimneys are usually very tall and have shoulders at the fireboxes. Front
Internal
• Brick patterns and stone work are common on chimneys.
Side
HALF-TIMBERING • Half-timbering is generally a layer of wood atop a material with a layer of stucco infill. These are seen as a decorative veneer and come in multiple patterns.
HALF-TIMBERING TIMBER LOCATION
TYPICAL PATTERNS
CLADDING • Brick, stone, and stucco are common materials for cladding.
Gabled
** Patterns are typically infilled with stucco, but occasionally you can see half timber with brick infill. The wood is typically attached on top of material below.
Second Story
MATERIALS AND APPLICATION
a.
a.
a. D ETA I L EXA M P L ES (top to bottom): a.) sweeping gable with window b.) false half-timbering C L A D D I NG EXA M P L ES (top to bottom): a.) brick b.) false half-timbering and stucco infill
b.
b. Detail Examples
Cladding Examples
b.
F O U NDAT I O N EXA M P L ES (top to bottom): a.) manufactured stone cladding b.) brick
Foundations Examples
PAT TERN BOOK
| Mount Rainier, Maryland
63
