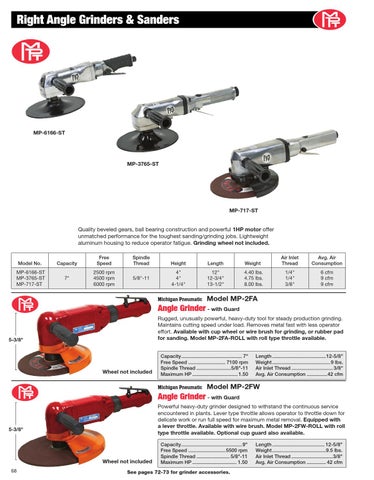

Right Angle Grinders & Sanders
MP-6166-ST
MP-3765-ST
MP-717-ST
Quality beveled gears, ball bearing construction and powerful 1HP motor offer unmatched performance for the toughest sanding/grinding jobs. Lightweight aluminum housing to reduce operator fatigue. Grinding wheel not included.
Model No.
Capacity
MP-6166-ST MP-3765-ST MP-717-ST
7"
Free Speed
Spindle Thread
2500 rpm 4500 rpm 6000 rpm
5/8"-11
Height
Length
Weight
Air Inlet Thread
Avg. Air Consumption
4" 4" 4-1/4"
12" 12-3/4" 13-1/2"
4.40 lbs. 4.75 lbs. 8.00 lbs.
1/4" 1/4" 3/8"
6 cfm 9 cfm 9 cfm
Michigan Pneumatic
Model MP-2FA
Angle Grinder - with Guard Rugged, unusually powerful, heavy-duty tool for steady production grinding. Maintains cutting speed under load. Removes metal fast with less operator effort. Available with cup wheel or wire brush for grinding, or rubber pad for sanding. Model MP-2FA-ROLL with roll type throttle available.
5-3/8"
Wheel not included
Capacity ............................................ 7" Free Speed ........................... 7100 rpm Spindle Thread .........................5/8"-11 Maximum HP ................................. 1.50
Michigan Pneumatic
Length .......................................12-5/8" Weight .......................................... 9 lbs. Air Inlet Thread .............................. 3/8" Avg. Air Consumption ...............42 cfm
Model MP-2FW
Angle Grinder - with Guard Powerful heavy-duty grinder designed to withstand the continuous service encountered in plants. Lever type throttle allows operator to throttle down for delicate work or run full speed for maximum metal removal. Equipped with a lever throttle. Available with wire brush. Model MP-2FW-ROLL with roll type throttle available. Optional cup guard also available.
5-3/8"
Wheel not included 68
Capacity ............................................9" Free Speed ...........................5500 rpm Spindle Thread ........................ 5/8"-11 Maximum HP ................................ 1.50
See pages 72-73 for grinder accessories.
Length ...................................... 12-5/8" Weight .......................................9.5 lbs. Air Inlet Thread ..............................3/8" Avg. Air Consumption .............. 42 cfm
