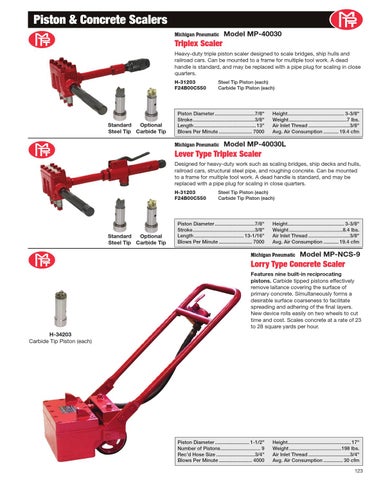

Piston & Concrete Scalers Michigan Pneumatic
Model MP-40030
Triplex Scaler Heavy-duty triple piston scaler designed to scale bridges, ship hulls and railroad cars. Can be mounted to a frame for multiple tool work. A dead handle is standard, and may be replaced with a pipe plug for scaling in close quarters. H-31203 F24B00C550
Standard Optional Steel Tip carbide Tip
Steel Tip Piston (each) Carbide Tip Piston (each)
Piston Diameter .............................7/8" Stroke .............................................3/8" Length .............................................13" Blows Per Minute ........................ 7000
Michigan Pneumatic
Height ......................................... 3-3/8" Weight ..........................................7 lbs. Air Inlet Thread ..............................3/8" Avg. Air Consumption ........... 19.4 cfm
Model MP-40030L
Lever Type Triplex Scaler Designed for heavy-duty work such as scaling bridges, ship decks and hulls, railroad cars, structural steel pipe, and roughing concrete. Can be mounted to a frame for multiple tool work. A dead handle is standard, and may be replaced with a pipe plug for scaling in close quarters. H-31203 F24B00C550
Standard Optional Steel Tip carbide Tip
Steel Tip Piston (each) Carbide Tip Piston (each)
Piston Diameter .............................7/8" Stroke .............................................3/8" Length .................................... 13-1/16" Blows Per Minute ........................ 7000
Height ......................................... 3-3/8" Weight .......................................8.4 lbs. Air Inlet Thread ..............................3/8" Avg. Air Consumption ........... 19.4 cfm
Michigan Pneumatic
Model MP-NcS-9
Lorry Type Concrete Scaler Features nine built-in reciprocating pistons. Carbide tipped pistons effectively remove laitance covering the surface of primary concrete. Simultaneously forms a desirable surface coarseness to facilitate spreading and adhering of the final layers. New device rolls easily on two wheels to cut time and cost. Scales concrete at a rate of 23 to 28 square yards per hour.
H-34203 Carbide Tip Piston (each)
Piston Diameter ......................... 1-1/2" Number of Pistons............................. 9 Rec’d Hose Size ............................3/4" Blows Per Minute ........................ 4000
Height ..............................................17" Weight ......................................198 lbs. Air Inlet Thread ..............................3/4" Avg. Air Consumption .............. 30 cfm 123
