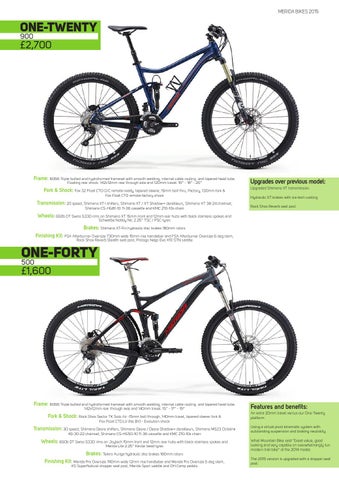

MERIDA BIKES 2015
ONE-TWENTY 900
£2,700
Frame: 6066 Triple butted and hydroformed frameset with smooth welding, internal cable routing and tapered head tube. Floating rear shock. 142x12mm rear through axle and 120mm travel. 16” - 18” - 20”
Fork & Shock: Fox 32 Float CTD O/C remote-ready, tapered steerer, 15mm bolt thru, Factory, 130mm fork & Fox Float CTD remote-factory shock
Upgrades over previous model: Upgraded Shimano XT transmission. Hydraulic XT brakes with ice-tech cooling
Transmission: 20 speed, Shimano XT-i shifters, Shimano XT / XT Shadow+ derailleurs, Shimano XT 38-24 chainset, Shimano CS-HG81-10 11-36 cassette and KMC Z10-10s chain
Rock Shox Reverb seat post
Wheels: 650b DT Swiss 533D rims on Shimano XT 15mm front and 12mm rear hubs with black stainless spokes and Schwalbe Nobby Nic 2.25” TSC / PSC tyres
Brakes: Shimano XT-Fin hydraulic disc brakes 180mm rotors Finishing Kit: FSA Afterburner Oversize 730mm wide 15mm rise handlebar and FSA Afterburner Oversize 6 deg stem, Rock Shox Reverb Stealth seat post, Prologo Nago Evo X10 STN saddle
ONE-FORTY 500 £1,600
Frame: 6066 Triple butted and hydroformed frameset with smooth welding, internal cable routing 142x12mm rear through axle and 140mm travel. 15” - 17” - 19”
and tapered head tube.
Features and benefits:
Fork & Shock: Rock Shox Sector TK Solo Air -15mm bolt through, 140mm travel, tapered steerer fork &
An extra 20mm travel versus our One-Twenty platform.
Transmission: 30 speed, Shimano Deore shifters, Shimano Deore / Deore Shadow+ derailleurs, Shimano M523 Octalink
Using a virtual pivot kinematic system with outstanding suspension and braking neutrality.
Fox Float CTD LV (No BV) - Evolution shock
40-30-22 chainset, Shimano CS-HG50-10 11-36 cassette and KMC Z10-10s chain
Wheels: 650b DT Swiss 533D rims on Joytech 15mm front and 12mm rear hubs with black stainless spokes and Merida Lite 2.25” Kevlar bead tyres
Brakes: Tektro Auriga hydraulic disc brakes 180mm rotors Finishing Kit: Merida Pro Oversize 740mm wide 12mm rise handlebar and Merida Pro Oversize 5 deg stem, KS SuperNatural dropper seat post, Merida Sport saddle and DH Comp pedals
What Mountain Bike said “Great value, good looking and very capable on overwhelmingly fun modern trail bike” of the 2014 model. The 2015 version is upgraded with a dropper seat post.
